application: | dairy industry | brand: | Kuwata |
Work pressure: | 25/40Mpa etc. | Core components: | engine |
Marketing Type: | normal product | Packaging Details: | wooden box |
model: | ST-HPL-1 | Processing type: | milk |
Showroom location: | not any | Processing: | Homogenizer |
Applicable industries: | Manufacturing Plants, Food & Beverage Plants, Retail, Food Stores, Energy & Mining, Food & Beverage Stores | Dimensions (L*W*H): | 755*520*935 |
Certificate: | EU CE certification | Function: | homogenization |
Warranty: | 1 year | payment terms: | L/C, Western Union, T/T, MoneyGram |
Video outbound inspection: | if | usage: | Milk, beverages, juices, yogurt, etc. |
Voltage: | 220V/380V/415V/440V/480V, etc., 220V/380V/440V 50HZ/60HZ | Core component warranty: | 1 year |
weight: | 400 kg | Package preview: | |
Mechanical test report: | if | Health status: | new |
strength: | 2.2-65kw | Material: | Stainless steel 304/316 |
After-sales service provided: | engineer | Origin: | Zhejiang, China |
engine: | ABB/Siemens etc. | | |

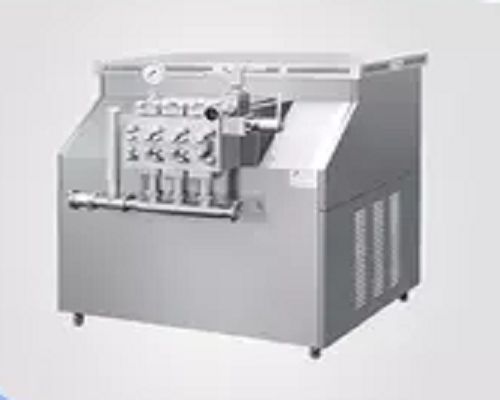

Product Description
High pressure homogenizer is a kind of equipment for homogenizing/emulsifying liquid materials(liquid-liquid phase or liquid-solid phase)andThe viscosity is lower than 0.2Pa.s, and the temperature is lower than 80°C.When the equipment is working, the processed material is sent to the homogenizing valveHigh pressure by means of a three-piston reciprocating pump, when the material flows through the tiny gap between the valve disc and the valve seat, it is affected by comprehensive forces such as turbulence, cavity, shear, etc., to achieve the purpose of homogeneity and emulsification.The average fineness of emulsification isBelow 1um, solid dispersion particle size below 2umgenerally.
Advantage:1. The whole machine is fully coveredwith stainless steel housing, which looks likeSmooth and delicate, safe and hygienic.
2. Adopt helical gear lLow-speed transmission, low noise, stable operation and reliable performance.
3. The transmission part adoptsSplash type and unique oil delivery methodTo ensure the lubrication needs of each part.
4. ofSeat double-sided designThe service life can be doubled.
5. Homogenizing valve, one-way valve and plunger are all made of alloy steel, with the following characteristics:Wear-resistant, impact-resistant, long service life.
6. The processed product isfine and uniform,Generally below 1 ~ 2um.
7. The processed products areGood stability and long shelf life.
8. Processed foods and medicines can increase absorption.The finer the food size, the easier it is to be absorbed by the body.when. . . whenParticle size up to 0.1um, without gastrointestinal tract, can be directly absorbed by intravenous injection.
9. The processed material can beIncrease viscosity and concentration. (For example, if the concentration of soybean milk is increased, the volume of ice cream will increase after treatment, and the viscosity will also increase, which can not only save materials, but also increase the output of products)
application
High pressure homogenizers are widely used inFine processing and ultra-fine grinding of thousands of products in dairy products, soybean products, juice drinks, health food, fine chemicals, daily chemical industry, pharmaceutical industry, papermaking, textile, biochemical engineering and other industries.In particular, it can solve the problems of easy stratification and precipitation in formula milk, protein drinks, and fruit juice drinks that have been difficult to solve for a long time. It has been successfully applied to the development of new fine chemical products, such asNanoscale Pigments, Paints and Dyes.

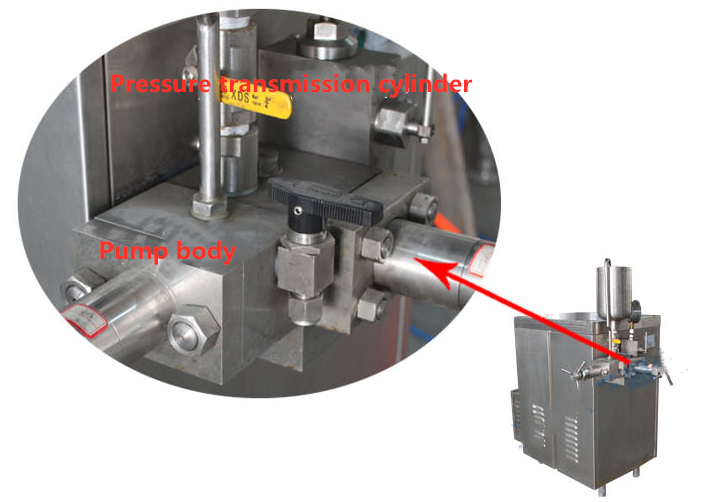

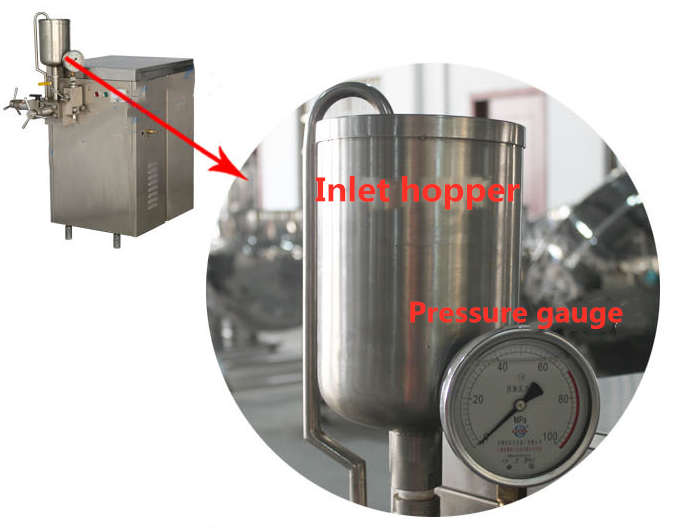

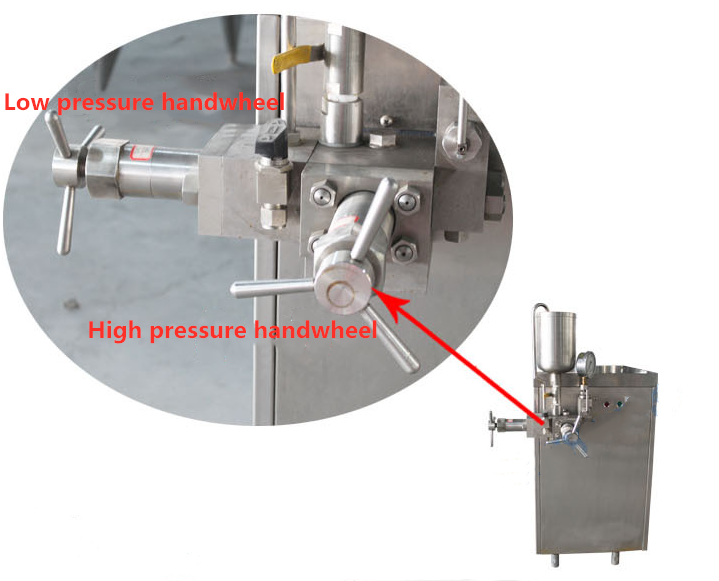

detailed drawing

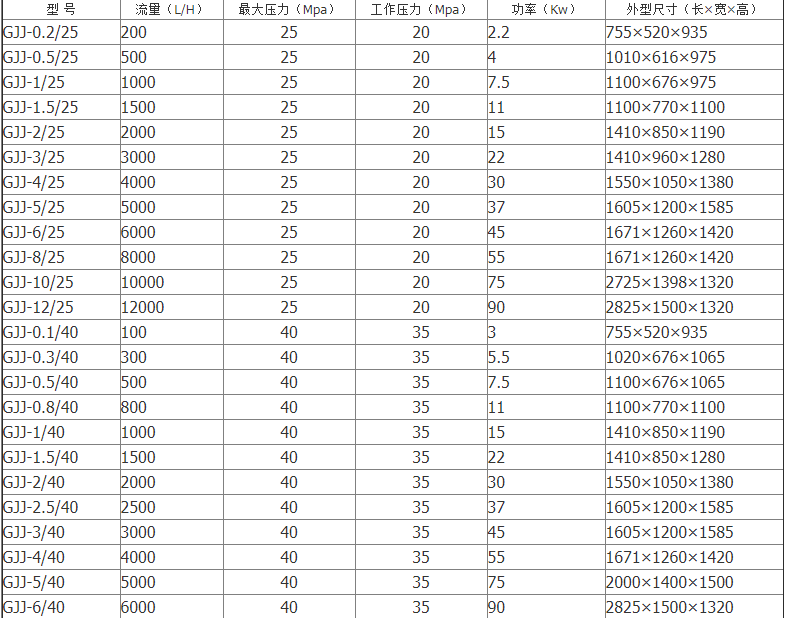

Specification
Selection skills:1. The above parameter table isProduction of high pressure homogenizers. If you need to test, please consult our laboratory high pressure homogenizer sales manager.
2. For the above parameters,Standard model productionProvided by our company, if you havedifferent technical requirements,Please contact us.
how to choose:
1. First, selectrequired pressureAccording to the process requirements and the desired effect
2. According toDaily production demandandcapacity of other equipment,SureOutput per hour.
