Function: | Homogenization | Core component warranty: | 6 months |
Dimensions (length*width*height): | 1.1*0.7*1.2 | Package preview: | |
Health status: | new | Processing: | Homogenizer |
Processing type: | other | Showroom location: | Nigeria |
payment terms: | Western Union, wire transfer | Homogenizer flow rate L/H: | 200 liters |
Core components: | gear | model: | / |
Warranty: | 1 year | Supply capacity: | 300 sets per month |
Video outbound inspection: | if | Marketing type: | normal product |
Applicable industries: | Manufacturing plants, household, retail, food stores | Voltage: | 220/380V customized, 220V-440V, 50/60Hz, 3PH/1PH |
Place of origin: | Henan, China | brand: | / |
Packaging details: | Wooden packing | weight: | 360kg |
port: | According to customer requirements | Mechanical test report: | not available |
product name: | Homogenizer |

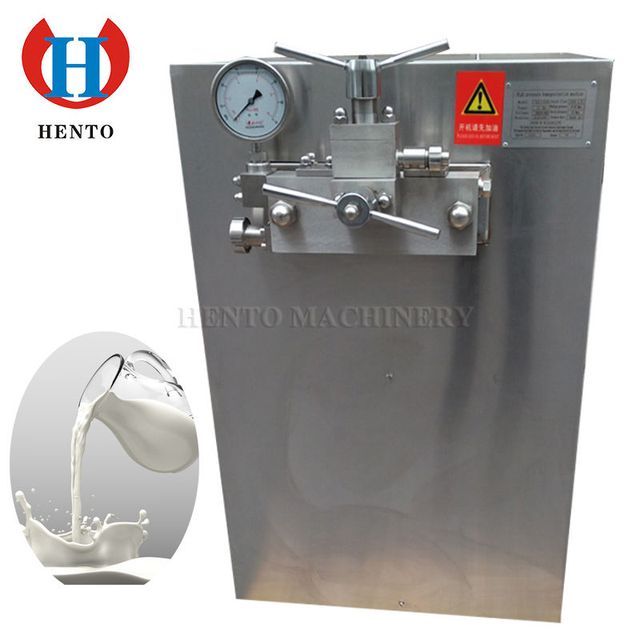

Export hot selling homogenizer
Functional principle:
The high-pressure homogenizer is suitable for homogenizing and emulsifying liquid materials (liquid-liquid phase or liquid-solid phase) with a viscosity lower than 0.2 Pa.S and a temperature lower than 80°C. The working principle of the high-pressure homogenizer is mainly to send the processed materials to the homogenization valve at high pressure through the reciprocating motion of three plungers, so that the materials flow through the tiny gap torque between the valve plate and the valve seat and are subject to turbulent flow. Compound force, cavitation and shearing can make the original rough processing into an extremely small, uniform and stable liquid-liquid mixed emulsifier or liquid-solid dispersion emulsion or suspension; the average emulsification fineness is less than 1um, and the solid The average particle size of the dispersion is below 2um. After passing through the high-pressure homogenizer, the homogenized materials have many advantages: high stability, which can improve the preservation quality, speed up the reaction time, and save additives; used in food, health products, cosmetics and other fields, it can improve the quality of human body absorption, etc.
*application:
1. Food and beverage industry: milk, yogurt, soy milk, peanut milk, milk powder, ice cream, natural beverages, fruit juice drinks, food additives, various condiments, etc.
2. Light industry and chemical industry: various emulsifiers, flavors and fragrances, cosmetics, paints, dyes, emulsions, thickeners, detergents, emulsified oils, etc.
3. Medicine/industry: antibiotics, traditional Chinese medicine/preparations, slurry preparations, nutritional products, health products, etc.
4. Bioengineering technology: cell disruption, enzyme engineering, extraction of active ingredients, etc.
*FeatUrea:
1. The whole machine is made of stainless steel casing, with smooth appearance, safe and hygienic.
2. The low speed adopts bevel gear transmission, which has low noise, smooth operation and reliable performance.
3. The transmission part adopts splash and unique oiling methods to ensure the lubrication needs of each part.
4. The seat adopts double-sided design to extend its service life.
5. The homogenizing valve, check valve, and plunger are made of alloy steel, which has the characteristics of wear resistance, impact resistance, and long service life.
Model |
HT-JR0.1/25 |
HT-JR0.2/25 |
HT-JR0.3/25 |
HT-JR0.5/25 |
Voltage |
380V/220V |
380V/220V |
380 volts |
380 volts |
flow |
100 liters/hour |
200 liters/hour |
300 liters/hour |
500 liters/hour |
greatest pressure |
25 MPa |
25 MPa |
25 MPa |
25 MPa |
work pressure |
0-20Mpa |
0-20Mpa |
0-20Mpa |
0-20Mpa |
Motor Power |
1.5kW |
1.5kW |
3kW |
4kW |
size |
750*520*930mm |
755*520*935mm |
760*520*935mm |
1010*616*975mm |
