Marketing type: | New product | weight: | 245kg |
Dimensions (length*width*height): | 755*520*935mm | Applicable industries: | Manufacturing plants, food and beverage plants, farms, home use, retail, food and beverage outlets, small dairy plants |
Work pressure: | 20 MPa | Place of origin: | Henan, China |
brand: | Wang Teer | Function: | pasteurized milk |
Warranty: | 1 year | Processing capacity: | Customer requirements |
application: | Pasteurization of milk and other liquids | Processing: | Homogenizer |
Voltage: | 220V/110V/380V | Name: | Homogenizer |
Video outbound inspection: | not available | Health status: | new |
capacity: | 100-4000L | Core component warranty: | 1 year |
Material: | All 304 stainless steel | Core components: | engine |
Mechanical test report: | not available | Processing type: | milk |
Control type: | automatic control | greatest pressure: | 25 MPa |
strength: | 1.5kw,1500W | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Alibaba Trade Assurance |
Showroom location: | not any |

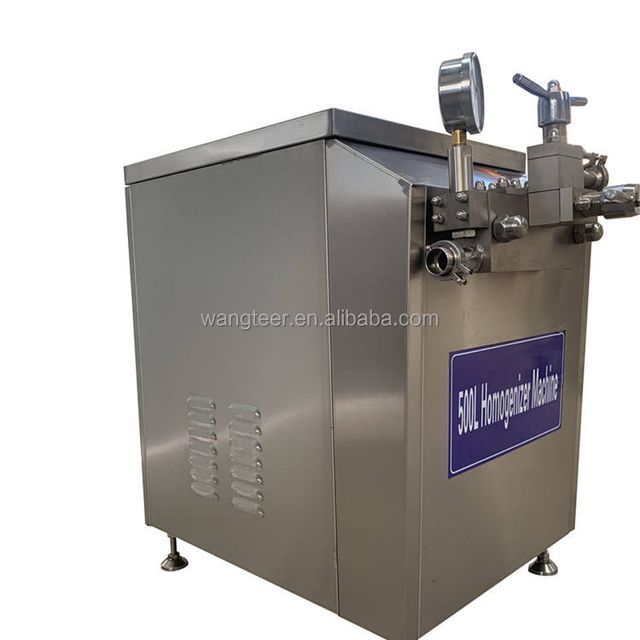

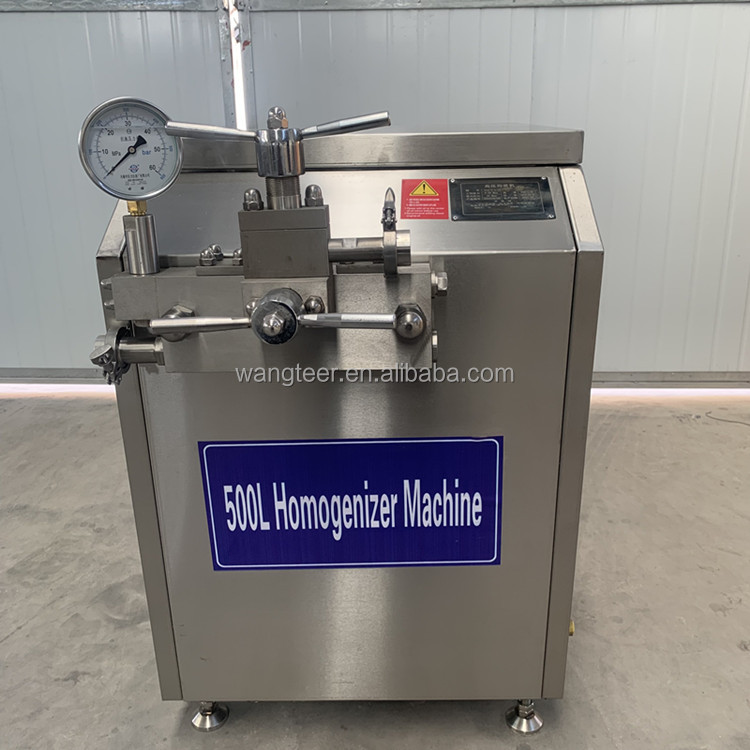

The homogenizer is a device used to homogenize/emulsify liquid materials (liquid-liquid phase or liquid-solid phase) with a viscosity lower than 0.2pa.s and a temperature lower than 80°C. The homogenizer in food processing refers to the refinement of materials under the triple action of extrusion, strong impact and pressure loss expansion, so that the materials are mixed with each other more evenly, such as the use of homogenizers in dairy processing. High-quality machines reduce the fat in milk and make the entire product system more stable. The milk will look whiter.
It is mainly used in the food or chemical industry, such as: important processing equipment for homogenization and emulsification in the production of dairy products, beverages and other products.
Model |
length/height |
greatest pressure |
work pressure |
strength |
size |
WT-100 |
100 liters |
25 MPa |
20 MPa |
1.5kW |
755*520*935mm |
WT-200 |
200 liters |
25 MPa |
20 MPa |
2.2kW |
755*520*935mm |
WT-300 |
300 liters |
25 MPa |
20 MPa |
3kW |
755*520*935mm |
WT-500 |
500L |
25 MPa |
20 MPa |
4kW |
1010*616*975mm |
WT-1000 |
1000L |
25 MPa |
20 MPa |
7.5kW |
1100*675*1065mm |
WT-1500 |
1500L |
25 MPa |
20 MPa |
11 kilowatts |
1100*770*1100mm |
WT-2000 |
2000L |
25 MPa |
20 MPa |
15kW |
1410*850*1190mm |
WT-2500 |
2500L |
25 MPa |
20 MPa |
18.5kW |
1410*850*1190mm |
WT-3000 |
3000L |
25 MPa |
20 MPa |
22kW |
1410*960*1280mm |
WT-4000 |
4000L |
25 MPa |
20 MPa |
30kW |
1550*1050*1380mm |
WT-5000 |
5000L |
25 MPa |
20 MPa |
37kW |
1605*1200*1586mm |
Click to learn more! ! !
Click to learn more! ! !
Click to learn more! ! !
Click to learn more! ! !
Click to learn more! ! !
Click to learn more! ! !
Henan Wangter Machinery Equipment Co., Ltd.
Henan Wangter Machinery Equipment Co., Ltd. is located in Zhengzhou, central China, a traditional industrial city with rich culture and history. It is only half an hour's drive from Xinzheng International Airport, and there are also high-speed rail links to major cities in China. WANGTEER manufacturer is a leading company, our factory was established in 1992, focusing on food machinery, here we can provide complete solutions as per your requirements. Over the past few years we have significantly expanded our scope and now have a wide range of products to choose from. Our main range includes the following food machinery: Dicers and Slicers. Pasteurizers and milk packaging machines. Pet machine, snack machine, food crusher, vegetable and fruit processing machinery, puffing machine, curry puff machine, dumpling machine. Garlic processing machine. Food dryer. Peanut making machine, incubator, chalk machine, fried dough stick machine, etc. We adhere to the principle of "quality first, customer first, reasonable price" and sincerely welcome you to cooperate with us on the basis of mutual understanding and success. The company is equipped with a professional quality control and after-sales service team to scientifically track every order and provide customers with high-speed services. Wantel has introduced advanced testing and production equipment to accurately ensure the quality of our products. These products are widely used and have won praise from many customers for their exquisite patterns, colors, styles and excellent decorative properties. Our products have been exported to Europe and North America. Africa, Middle East countries, South America, etc. "Provide design, production, quality control, inspection, testing, sales and logistics services to enterprises in need of reliable supply of Chinese food machinery." All employees of Wantel welcome new and old customers to contact us to establish long-term Friendly cooperation! We will work hard to produce more high-quality products for you!
Click to learn more! ! !
1. Payment method: T/T, Western Union, MoneyGram, PayPal; 30% deposit; 70% balance paid before delivery.
2. Delivery time: 7-15 days
3. Minimum order quantity: 1 piece
4. Packaging information: Standard export wooden box.
5. If your country is different from China. Please tell me, we can customize your country voltage. Can meet your requirements very well, changing the voltage is free. You don't need extra money.
6. When we export machines, we will purchase machine insurance. The insurance is free.
1. We are a professional food machinery manufacturer in China.
2. Alibaba evaluates gold medal suppliers.
3. Inspected by Bureau Veritas certified inspection agency.
4. 100% QC inspection before shipment.
5. Best quality and best service and competitive price.
6. Warranty. We will provide 12 months warranty. Within 24 hours, we will reply to you as soon as possible and solve your problem as soon as possible.
