Brand Name: | Meacon; | Application: | Water Oil Air Pressure Measurement; |
Model Number: | MIK-P300; | MOQ: | 1; |
Selling Units: | Single item; | Place of Origin: | Zhejiang China (Mainland); |
Single package size: | 20X10X10 cm; | Accuracy: | 0.3%FS/0.5%FS; |
Delivery Detail: | 0 days after payment; | OEM: | Yes; |
Water Proof: | IP65; | Single gross weight: | 0.5 KG; |
Pressure range: | -1~1000Bar (option); | overload pressure: | 200%FS; |
Power supply: | 24VDC 12VDC 12-36VDC; | Pressure type: | gauge pressure absolute pressure sealed pressure; |
signal output: | 4-20mA 0-20mA 1-5V 0-5V; |
MIK-P300 pressure transmitter is kind of device based on pressure layer, which inside expert integrate circuit can transform sensor milli-volt signal to standard far distance transmission current signal, and it can be directly joined with computer joint clip, control instrument ,aptitude instrument or PLC etc. conveniently. The series' product is applied extensively in the professions, such as the industry process control, petroleum, chemical engineering and metallurgy etc. Carry the distance delivers and can adopt electric current exportation method.
Specification
Pressure Type | Gauge pressure/ absolute pressure /sealing pressure |
Power Supply | 12VDC 24VDC 12-36VDC |
Signal Output | 4-20mA 0-20mA 0-5V 1-5V 0-10V RS485 |
Zero Drift | ±0.03%FS℃ |
Accuracy | ±0.5%FS℃,0.3%FS optional |
Thermal Sensitivity Drift | ±0.03%FS℃ |
Long Term Stability | ≤0.2%FS℃ one year |
Frequency Response(-3dB) | 5kHz~650kH |
Ingress Protection | IP65 |
Pressure Connection | G1/4, G1/2,1/2NPT,1/4NPT, M20*1.5etc.(optional) |
Measure Medium | Gas, water, oil etc. (non-explosion-proof area) |
Electrical Connections | DIN connector type, M12 connector, cable connector type |
Time Response | <10ms |
Weight | Min,400g(depending on model) |
Housing material | 304/316L stainless steel |
Fill Fluid | Silicon oil |
Operation conditions | |
Temperature | -20…+80℃/-4...+176°F |
Nominal Temperature | -40…+85℃/-40...+185°F |
Ambient Temperature | -40…+100℃/-40...+212°F |
Storage Temperature | PN≤40 bar /580 psi:-40…+125℃/-40...+257°F |
Medium Temperature | PN≥60 bar /870 psi:-25…+125℃/-13...+257°F |
With cooling fins(optional): PN≤40 bar /580 psi:-40…+125℃/-40...+257°F PN≤40 bar /580 psi:-40…+125℃/-40...+257°F |

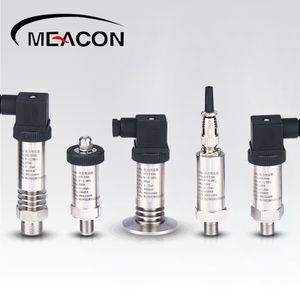

Product details
Wiring instruction
