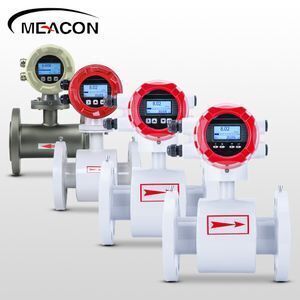

Sewage Split Electromagnetic Flowmeter With IP68 water-proof flowmeter water flowmeter

Supplier: Hangzhou Meacon Automation Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Kevin Huang
Price: $299.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Selling Units:	Single item;	Output:	4-20mA /RS485/pulse output;
Application:	water 20μS/cm other medium 5μS/cm;	Brand Name:	Meacon;
Power Supply:	100-240VAC, 24V;	Diameter Nominal:	DN50;
Single package size:	40X30X30 cm;	Protection class:	IP65;
Single gross weight:	12 KG;	Ambient Temperature:	-40℃~120℃;
Model Number:	LDG-MIK;	Accuracy:	±0.1%, ±0.3%, ±0.5%,;
Place of Origin:	Zhejiang China;	OEM:	Yes;
Electrode material:	316 stainless steel;	Liner Material:	Neoprene;
Type:	Variable Area Water Flowmeters;

Contact Engineer for further information

Products Paramters

Nominal diameter	15-500mm
Degree of accuracy	±0.5%R
Medium conductivity	≥5uS/cm,Actual conductivity≥30uS/cm
Nominal pressure	1.0MPa	1.6MPa	2.5MPa	4.0MPa
	DN15-DN500	DN15-DN500	DN15-DN500	DN15-DN50
Highest medium temperature	Compact type	+80℃
	Remote type	CR chloroprene rubber liner (CR)		+80℃
		Polytetrafluoroethylene lining(F4)		+120℃
		Politef lining(F46)
		Teflon(PFA)		+180℃
		Fluorosilicone rubber(FVMQ)		+250℃
Output signal	4-20mA;Pulse/Frequency 2kHz(Default),5KHz(Max)
Supply voltage	110/220VAC(100-240VAC),50Hz/60Hz;24VDC ±10%
Communication	RS-485,Support standard Modbus-RTU protocol;GPRS
Electrode material	Stainless steel 316L,Hastelloy C,Hastelloy B,titanium, tantalum, platinum
Level of protection	Remote type			IP68,IP65
	Compact type			IP65

Contact Engineer for further information
