High speed through hole rotary hydraulic cylinder

Product details
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;Brand Name:NTH;
Port:SHA;Delivery Detail:1 day after received payment;
Supply Ability:100 Set/Sets per Week;Model Number:H Series;
Packaging Detail:Good and firm package is suitable for air or sea shipping.;Place of Origin:Jiangsu China;
Product Description

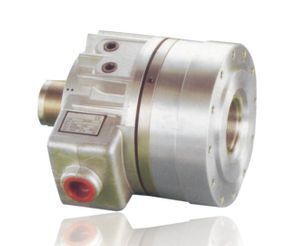

High speed through-hole rotary hydraulic cylinder

Compact and light weight :
Comparing with the regular product, it is compact (reduced to MAX 95mm) and lighter (weighted MAX 4.5kg). It’s more stable to reduce the burden of the machinery at high speed turning.
The largest bore : Comparing with the regular product, it has about 20% larger bore diameter forutilizing the capacity of machinery.
The safety structure : It can retain the gripping force by check valve.


Subject to the different products spec and craft, and different exchange rate, The price here is just for your reference, please get the right price from our sales when you order.

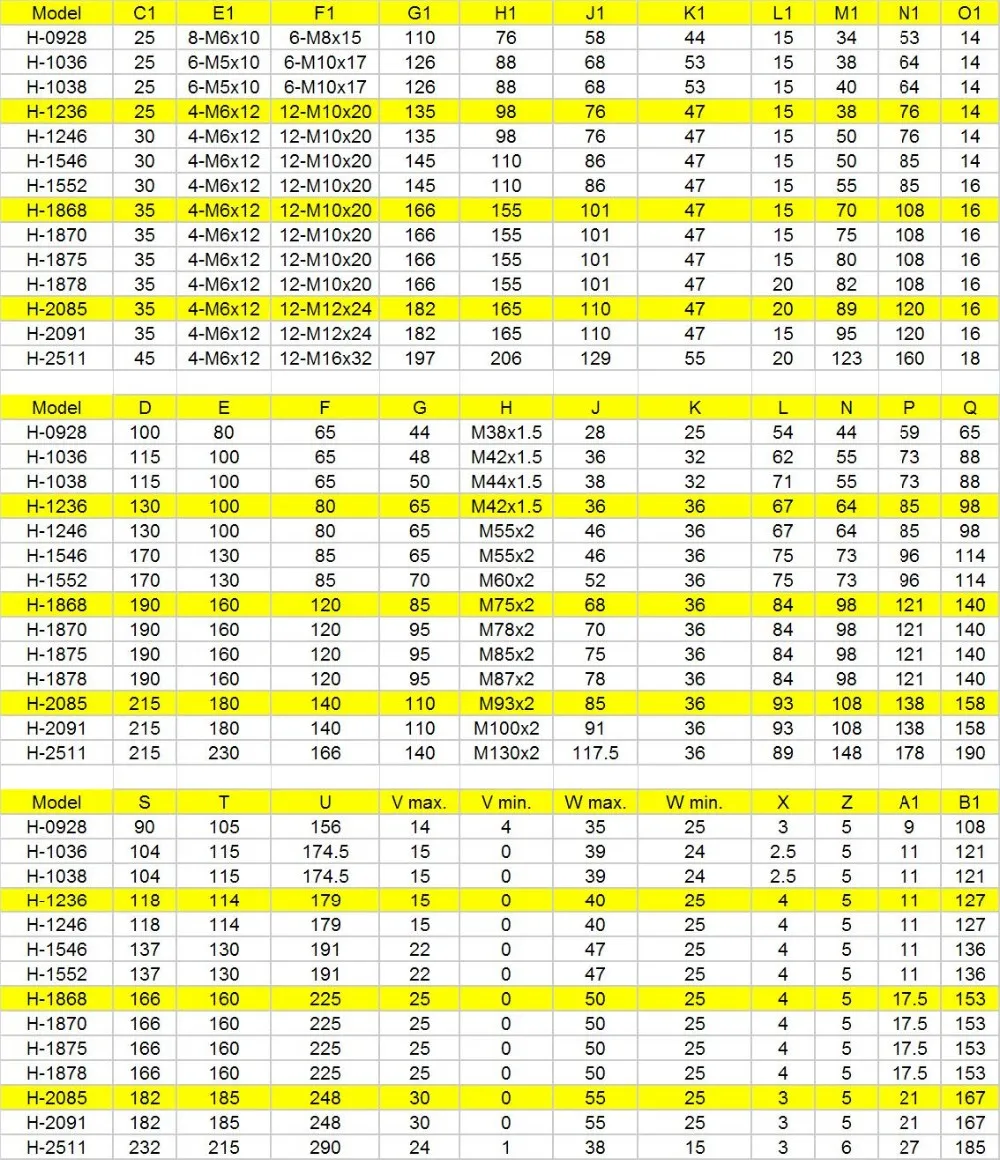

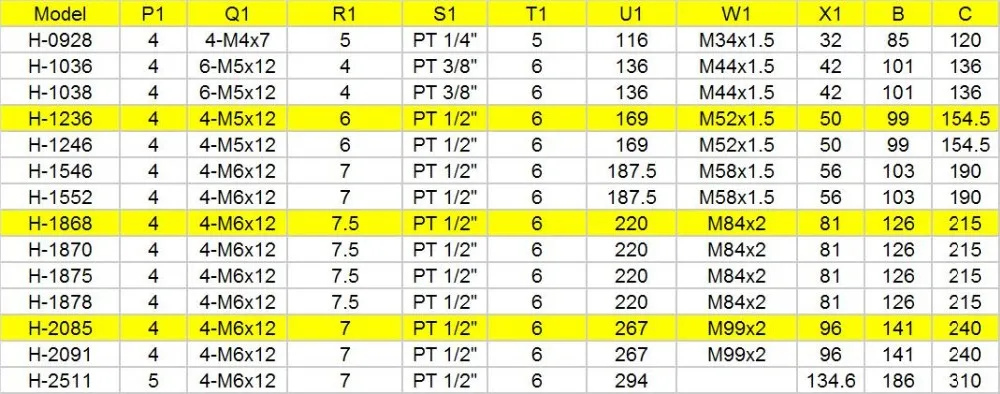

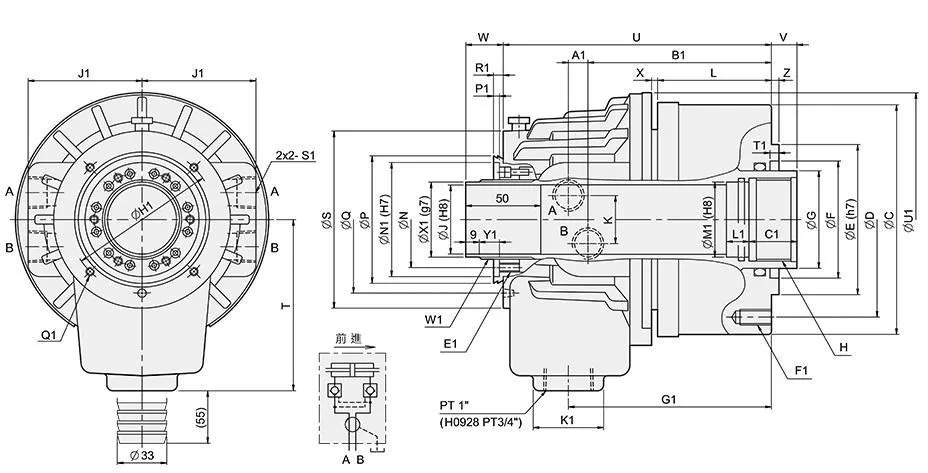

Products Details
Model
Piston Dia.
(mm)
Piston Area (cm2)
Push Side / Pull Side
Max. Draw Bar Force KN(kgf)
Push Side / Pull Side
Piston Stroke
(mm)
Max. Operating Pressure
MPa(kgf / cm2)
Max. Speed
(r.p.m.)
Moment Of Inertia
I(kg‧m2 )
Weight
(kg)
Total Leakage
L/min
H-0928
90
53.2 / 48.3
19.9(2029) / 18(1835)
10
40.8
8000
0.006
5.5
3
H-1036
105
71 / 68.5
26(2651) / 25(2549)
15
40.8
8000
0.011
8.6
3
H-1038
105
71 / 66
26(2651) / 24.5(2498)
15
40.8
8000
0.011
8.5
3
H-1236
125
100 / 89
38(3875) / 33(3365)
15
40.8
7000
0.019
13
3
H-1246
125
100 / 89
38(3875) / 33(3365)
15
40.8
7000
0.019
13.6
3
H-1546
155
161 / 154
60(6118) / 57.8(5894)
22
40.8
6200
0.056
18
3.9
H-1552
155
161 / 150
60(6118) / 56(5710)
22
40.8
6200
0.052
16.8
3.9
H-1868
180
198 / 197
74(7546) / 73.5(7495)
25
40.8
4700
0.098
28
4.2
H-1870
180
198 / 183
74(7546) / 69(7036)
25
40.8
4700
0.095
26.5
4.2
H-1875
180
198 / 183
74(7546) / 69(7036)
25
40.8
4700
0.095
26
4.2
H-1878
180
198 / 183
74(7546) / 69(7036)
25
40.8
4700
0.095
25.5
4.2
H-2085
205
252 / 234
94(9585) / 88(8973)
30
40.8
3800
0.15
37.5
4.5
H-2091
205
252 / 234
94(9585) / 88(8973)
30
40.8
3800
0.15
37
4.5
H-2511
250
348 / 336
124(12644) / 120(12236)
23
40.8
2800
0.45
57
7
Quality Promise
Item
Omatei Promise on Quality
1
100% inspected and 100% qualified
2
In case of quality defects before use, buyer should notify Omatei within a week after receiving goods, Omatei is responsible for returning and resending freight charge. Buyer should package the goods firmly for returning transportation safety.
3
If buyer need changing before use, buyer should notify Omatei within a week after receiving goods, Buyer is responsible for returning and resending freight charge, Buyer should package the goods firmly for returning transportation safety.
Contact us
Packing & Delivery

Packing Details : Our packing is firm and safe and suitable for air or sea shipping way.
Lead time: 1 day after received payment if in stock, otherwise, the lead time is 30 days.
