Packaging Detail: | 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton; 3.Customized package.; | Model Number: | OEM; |
Board Thickness: | 1.6mm; | Place of Origin: | Guangdong China; |
Services: | one-stop services; | Base Material: | FR-4; |
Surface Finishing: | Lead free HALS; | Small order: | 1 pcs; |
Certificate: | ISO9001/IATF16949/ISO13485; | Min. Line Spacing: | 3mil; |
Solder mask color: | Green,Yellow,Black,White.etc; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal; |
Min. Hole Size: | 0.1mm; | Layer(MAX): | 1-26; |
Sample: | Available; | Brand Name: | FAST PCBA; |
Supply Ability: | 80000 Piece/Pieces per Month; | Copper Thickness: | 0.3OZ-3OZ; |
Min. Line Width: | 3mil; | Type of material: | FR-4,FPC,aluminum; |
Port: | Shenzhen/HongKong; |

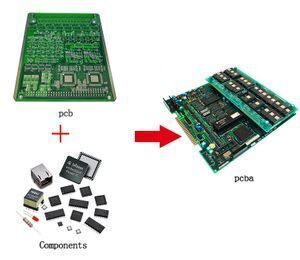

12 years PCB&PCBA factory SMT DIP bare pcb and electronic components assembly one-stop service
Company Information:
FASTPCBA Technology Co., Ltd is a professional PCB&PCBA manufacturer in China, Shenzhen. With 15 years of development, FASPCBA turns into a first class manufacturer of HDI PCB, with production capability 35,000 square meters. FASTPCBA is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.
Our aggressive business strategy enables us to deliver high competitive services for our diverse, competitive customer base. Through this strategy, we are able to make fast, flexible decisions in response to changing market conditions and create most value and benefits for customers.
As for Service, we provide 7days 24hours on-line professional Pre-sale, Selling and After-Sale service to solve any question about the order. Any time, any requirement will get Prompt Reply from our well-trained and friendly support staff.
Our main market is Europe, north USA,Australia, South America, and Asia. we will put much more effort to build connection with more customers in more area. All we want to do, is to connect the world by our products, to share the Value, Happyness and Achievement with more customers.
1,What service do you have?
We are OEM PCB and PCBA manufacturer,provide turnkey solutionincluding PCB fabrication,SMT and assembly PCBA inside the enclosure,Functiontesting and other value-added service.
2,What are the main products of your PCB/PCBA services?
Our services are mainly for the industries including Industrial Control Medical,Automotive,Communication,Smart home,Safety protection.
3,What files required to get quotation from you?
For PCB, please provide the Gerber data/files and indication of related technical requirements as well as any special requirement if you have.
For PCBA(PCB with soldered components),please provide Gerber files and also BOM (components list), and if you need us to do function test, please also provide the test instruction/procedure.
4,How long does it take for PCB and PCBA Quote?
PCBs quotation within 2 hours can finished.
The PCBA depend on the components quantity,if you order is urgently please contact us directly,we will priority to deal it and do ourbest to give you satisfied delivery time.
5,How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
6,Can we inspect quality during production?
Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process and check in house.
7,How about the delivery?
Normally, for sample order, our delivery is about 5 days.For small batch, our delivery is about 7days. For mass production batch, our delivery is about 10 days,but that depends on the real condition when we get your order.If your order is urgently please contact us directly ,we will priority to deal it and do ourbest to give you satisfied delivery time.
8,Do you have any minimum order quantity (MOQ) requirement?
No, we do not have MOQ requirement, Sample and mass production all can support.
Process capability:
Article | Description | Capability | |
Sercive | PCB and SMT assembly with one-stop service | ||

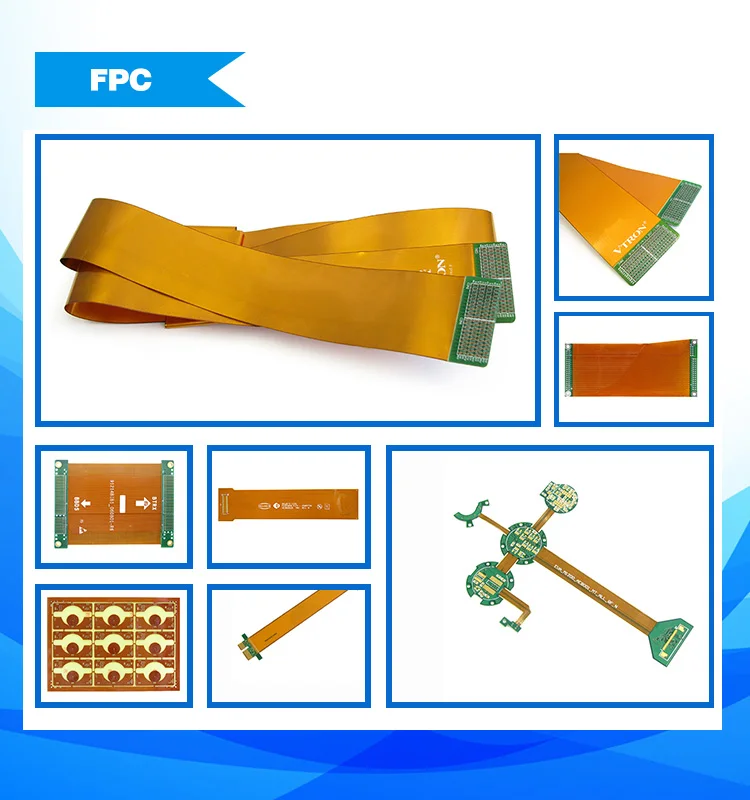

Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC | |
Board cutting | Number of layers | 1-48 | |
Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) | ||
Board thickness | Standard | (0.1-4mm±10%) | |
Min. | Single/Double:0.008±0.004” | ||
4layer:0.01±0.008” | |||
8layer:0.01±0.008” | |||
Bow and twist | no more than 7/1000 | ||
Copper weight | Outer Cu weight | 0.5-4 0z | |
Inner Cu weight | 0.5-3 0z | ||
Drilling | Min size | 0.0078”(0.2mm) | |
Drill deviation | ±0.002″(0.05mm) | ||
PTH hole tolerance | ±0.002″(0.005mm) | ||
NPTH hole tolerance | ±0.002″(0.005mm) | ||
Solder mask
| Color | Green,white,black,red,blue… | |
Min solder mask clearanace | 0.003″(0.07mm) | ||
Thickness | (0.012*0.017mm) | ||
Silkscreen | Color | white,black,yellow,blue… | |
Min size | 0.006″(0.15mm) | ||
E-test | Function Test | 100% Functional test | |
PCBA Testing | X-ray,AOI Test,Functional test | ||
Pcb assembly | one-stop service electronic manufacxturer service | ||
Component sourcing | Yes | ||
Certificate | IATF16949,ISO9001 | ||
Delivery time: | PCB | 3-8days | |
PCBA | 10-20days | ||
Tolerance of pcb | ±5% | ||
Max size of finish board | 700*460mm | ||
MOQ | NO MOQ (1pcs) | ||
Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | ||
PCB outline | Square,circle,irregular(with jigs) | ||
package | QFN,BGA,SSOP,PLCC,LGA | ||
Sub-assembly | Plastic,metal,screen |
FASTPCBA provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world
Certificates:
FASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification, ISO 9001, IATF 16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.
