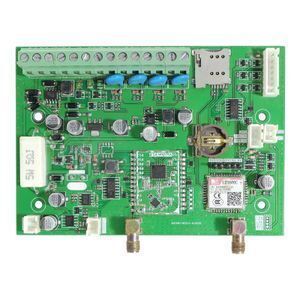

Customized PCB Circuit Boards, Turnkey PCBA Manufacturing, FR4 PCB

Product details
MOQ:1 PCS;services:one-stop pcba services;
Solder mask:Green.Black.Red.Yellow.White.Blue;Surface Finishing:HASL, OSP, Lead free;
Port:shenzhen or hongkong or guangzhou;Certificate:ISO9001/IATF16949/ISO13485;
package:QFN,BGA,SSOP,PLCC,LGA;Application:Electronics Device;
Packaging Detail:1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton; 3.Customized package.;Min. Line Spacing:3mil;
Model Number:pcb circuit board;Number of Layers:1-48layers;
Brand Name:FASTPCBA;Board Thickness:1.6mm;
Copper Thickness:0.3-3oz;Place of Origin:shenzhen;
PCB outline:Square,circle,irregular(with jigs);delivery:3-8days;
Board Size:Square,circle,irregular(with jigs);Supply Ability:1000000 Piece/Pieces per Month;
Base Material:FR4, alum, FPC;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Package Preview:;Max board size:760mm*600mm;
Min. Hole Size:0.1mm;Testing Service:AOI X-Ray Function Test;
Min. Line Width:3mil;

Customized PCB Circuit Boards, Turnkey PCBA Manufacturing, FR4 PCB

Our Service Type

Our Service Type

FASTPCBA is a professional PCB & PCBA manufacturer in Shenzhen China.Our provide high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.

FASTPCBA provides superior service for automotive electronics, medical electronics, telecommunications, industrial control, smart home and other industries around the world.



Bare PCB Manufacturing

Offering: Rigid PCB; Flexible PCB; Rigid-flex PCB; HDI PCB; Gold-Plated PCB; High Frequency PCBs; Aluminum PCB; Copper Base Circuit Board; High TG PCB; Heavy Copper PCB......

PCB Assembly Service

We have a global sales team available to assist you with PCB Manufacturing & PCB Assembly services, Send your PCB files to get better price now !

Production Capabilit

Production Capability

Article Description Capability
Laminate Materials FR4, high TG FR4, high frequency, alum, FPC
Board Cutting Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)
0.003”(0.07mm)
Board Thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper Weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder Mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
Component Sourcing Yes
Tolerance of PCB ±5%
Max Size of Finish Board 700*460mm
MOQ NO MOQ (1pcs)
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA
Sub-assembly Plastic,metal,screen
Min Line/Space 0.075/0.075mm



Company Information

Advanced Equipment

FASTPCBA  has imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance.We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.



Solder Paste Jet  X-RAY AOI
Wave Soldering Reflow X-RAY Counter
Surface Mount Machine On-line AOI MY-500
SPI





Exquisite Technics

Having been specilezed for 19 years we understand the 3 high goals that are most concernd about your important stage from R&D to project manufacturing.

Engineer, procurement and quality department import product files on the production site. Priduct quality is determined by the import of product data in the early stage.



Contact us for our online factory VR panorama.

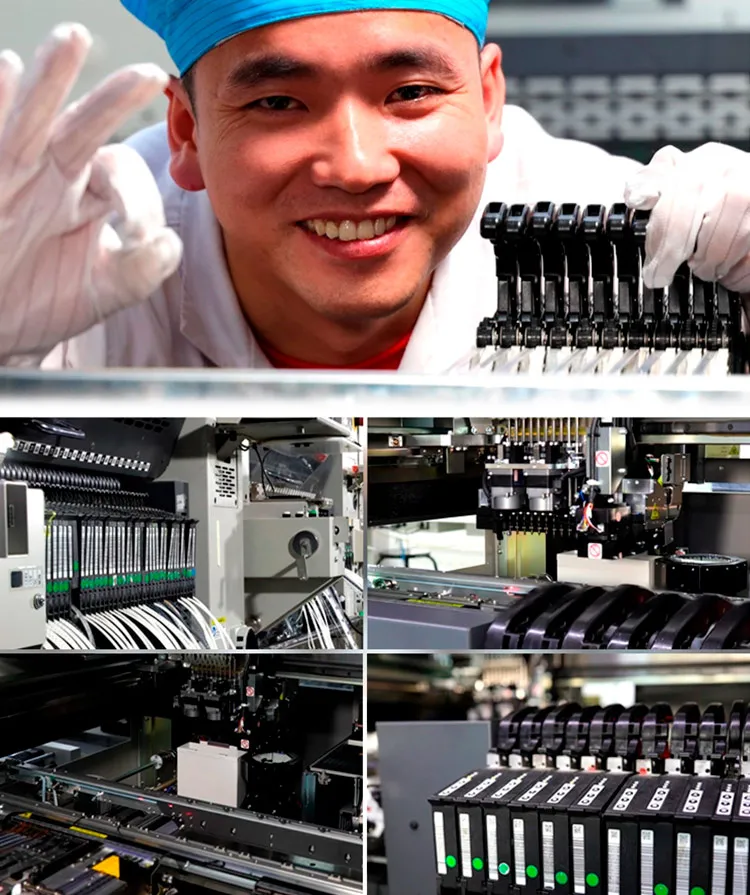

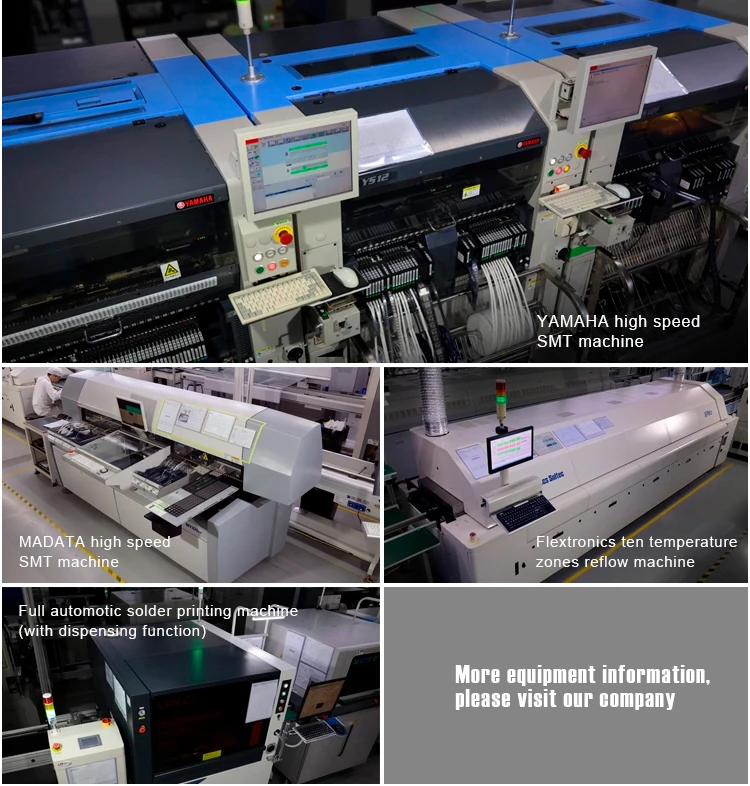

SMT Equipment

In terms of SMT equipement investment, FASTPCBA has always been at the forefront of the world, because equipment determines the quality of products.



Soldering

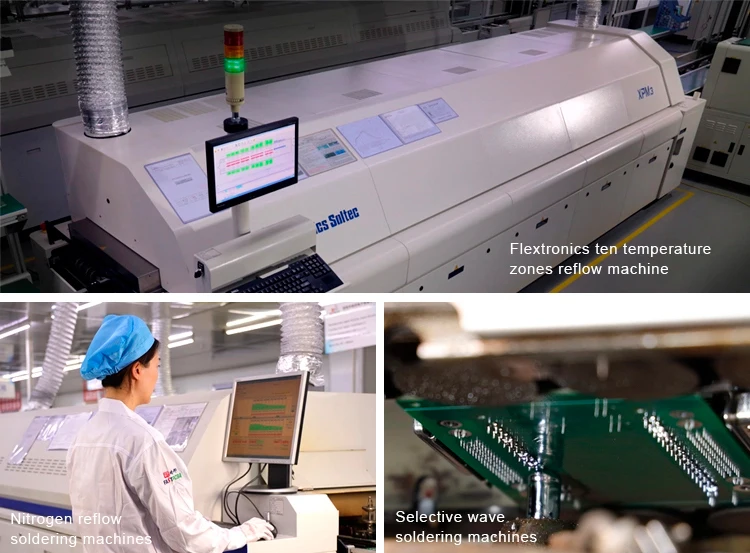

FASTPCBA has always been ahead of the times from nitrogen reflow soldering machines to selective wave soldering machines

Sice 2012, FASTPCBA has upgraded its equipment and replaced it with Flextronics reflow soldering machine, which increase customer satisfaction.

World-class equipment brings about high-quality temperature control curves, every time customers check the operation of our equipment, they can get consistent data and satisfied quality inspection reports.

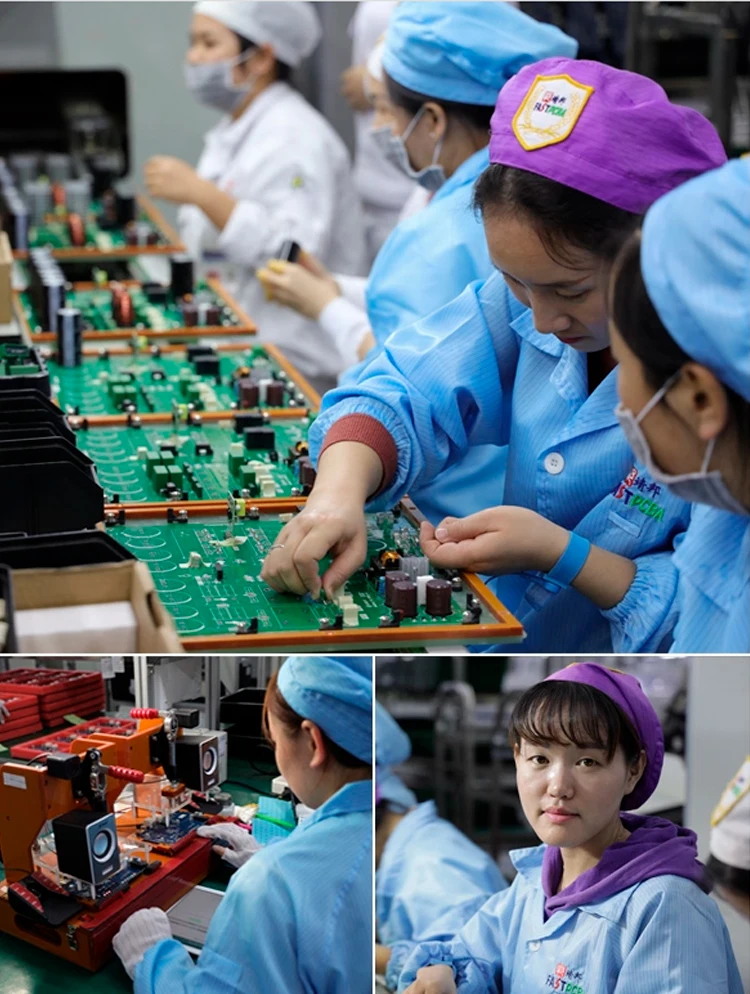

Assembly & Test

Highest customer satisfaction is our effort direction

Our engineering department is on standby for customers' customization

Staff morale is high because we are paid more than our peers.





Supply Chain

We only use world-class branded electronic components.

We can make purchase in full accordance with the customer's designated supplier. Can also help customers reviwe and improve the supply chain, identify the specifications of electronic components and avoid the introduction of any defective products.



Quality Assurance

Quality Assurance

Our quality control advantage lies in the strict implementation of the entire process control system.

FASTPCBA has been selected as the “excellent partner of the year” by numerous well-known enterprises, and won many domestic and authorized certifications at home and abroad, such as Chinese high-tech project certification.
For more than ten years, we have passed the IOS9001, ISO14001, IOS13485, IATF16949 international quality system certification and have withstood the most demanding inspection from Europe and the Americas's customers and customized CE, UL, FCC and other product certifications according to the customer's requirements. To this end, we also want to thank our customers for such strict requirements, which has achieved our reputation in the industry.



Customer Witness

FASTPCBA leave customers good memories during each successful cooperation

We survive based on higher quality standards

Win your respect with credibility

Achieve higher value at the same price

Revernce heart

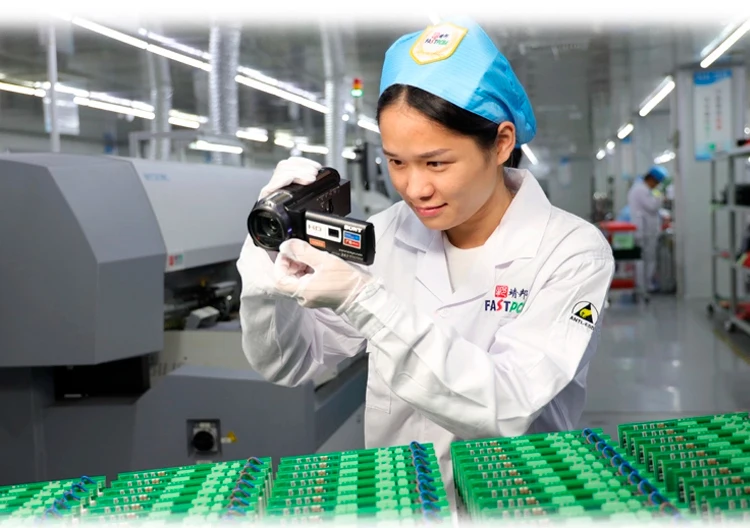

Details Decide the Quality



FAQ

1, What service do you have?
We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing  and other value-added service.



2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.



3, How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.



4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control, IOT, Smart Home, Military, Aerospace.



5, What is your minimum order quantity (MOQ)?
Our MOQ is 1 PCS, sample and mass production all can support.



6, Are you factory?
Our factory is located in 1st Building, No. 18-1, Yuquan East Road, Yulv Village, Gongming Street, Guangming New District shenzhen, china.



We are waiting for your response to move forward next step and offer you wanted information, product and service.
Please kindly do me a favor: Fill out the form below, tell me your needs, it is beneficial for both of us.
