Brand Name: | CNSPD; | Terminal material: | pure cooper; |
Place of Origin: | Zhejiang China; | Package Type: | Neutral brown inner box and 5-layer corrugated master carton; |
Gross weight per batch: | 0.035 KG; | Rated Current: | 40A; |
Contact Material: | Silver Alloy; | Model Number: | JD140C-07A; |
Selling Units: | Multiple of 500; | Ambient temperature: | -40℃-125℃; |
Size: | 28.0*28.0*25.0mm; | Car Make: | Universal; |
Name: | JD1914 auto mini relay; | Color: | Black, Blue; |
Package Preview: | https://sc02.alicdn.com/kf/HTB12Yu4GQOWBuNjSsppq6xPgpXav.jpg_640x640.jpg; | Package size per batch: | 32X32X35 cm; |
Certification: | TS16949; | Voltage: | 12V; |
Contact Form: | SPDT, Changeable; | Warranty: | 1 Years; |
Weight: | 35g; | Electrical Life: | 100000 Cycles; |
12V 40A 5 PIN JD1914 auto car mini relay
1.Specification:
Rated Voltage | 12VDC |
Operating Voltage | 9-16VDC |
Pull-in voltage | 8.4VDC |
Release voltage | 1.2VDC |
Coil Power Consumption | 1.6W |
Coil resistance(Ω+/- 10) | 90Ω |
Electrical life | 100,000 cycles |
Mechanical life | 1,000,000 cycles |
Rated Switching Current | 40A @12VDC |
Insulation resistance | 100MΩ (500VDC) |
Mechanical Data
Contact material | silver alloy |
Fixed contact | silver alloy |
Moving contact | silver alloy |
Contact arrangement | 1C |
Ambient temperature | -40°C~+125°C |
Operate time Max | 10ms |
Release time Max | 10ms |
Vibration resistance | 10Hz-40Hz, 1.5mm |
Shock resistance | 147m/s2, 11ms |
Cover retention | 245N |
Terminal retention | 100N |
Terminal retention to bending | 10N |
Terminals | Pure copper, 6.3x0.8mm |
Coil | Oxygen Free Copper |
Base plate | Nylon PA66 |
Cap | Nylon PA66 |

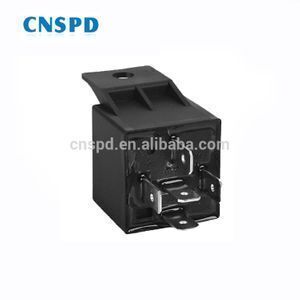

2. Product Photo
3. Wiring Diagram
