Nuanbao 2019 factory beer brazed and cooler plate heat exchanger stainless steel water cooling brazed plate heat exchanger

Product details
Structure:Plate Heat Exchanger;Dimension(L*W*H):Customized;
Place of Origin:Zhejiang China;After-sales Service Provided:Engineers available to service machinery overseas;
Medium Diameter:Customized;Warranty:1 Year;
Flux:Customized;Weight:2-500kg can be customized;
Maximum Working Pressure:220V/380V/Customized;Warranty:1 Year;
Packaging Detail:According to the customer's requirements: 1.Carton packing. 2.Wooden case packing.;Product Name:Brazed plate heat exchanger heat-exchanging section;
Port:Ningbo/shanghai;Certification:ISO9001, ISO;
Supply Ability:50000 Set/Sets per Month;Voltage:220V/380V;
Product Type:Plate Heat Exchanger;Liquid Flow Rate:Customized;
Material Diameter:Customized;Brand Name:Nuanbao;
Material:SS304/SS316;After-sales Service Provided:No after-sales service,Online support;
Area:Customized;Payment Terms:T/T;
Condition:New;

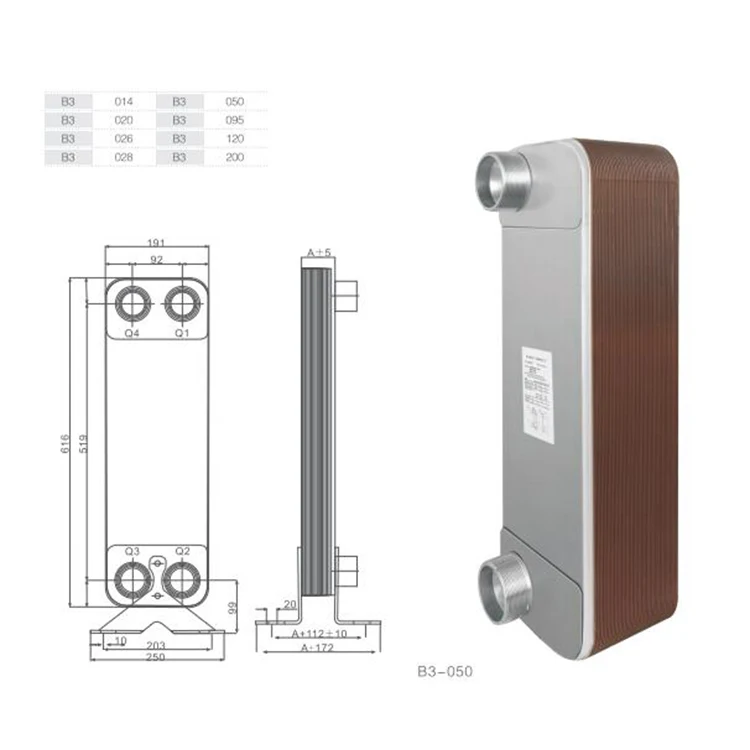

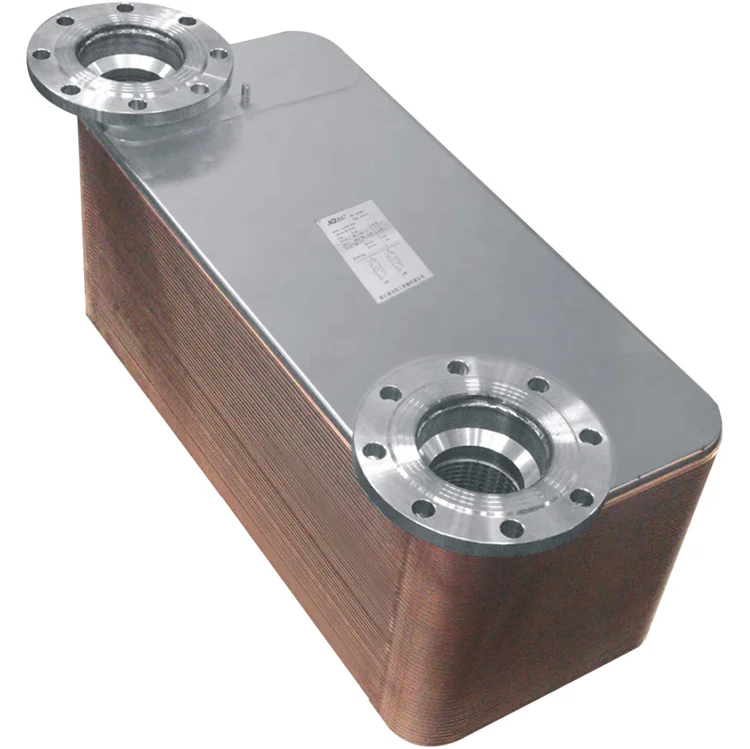

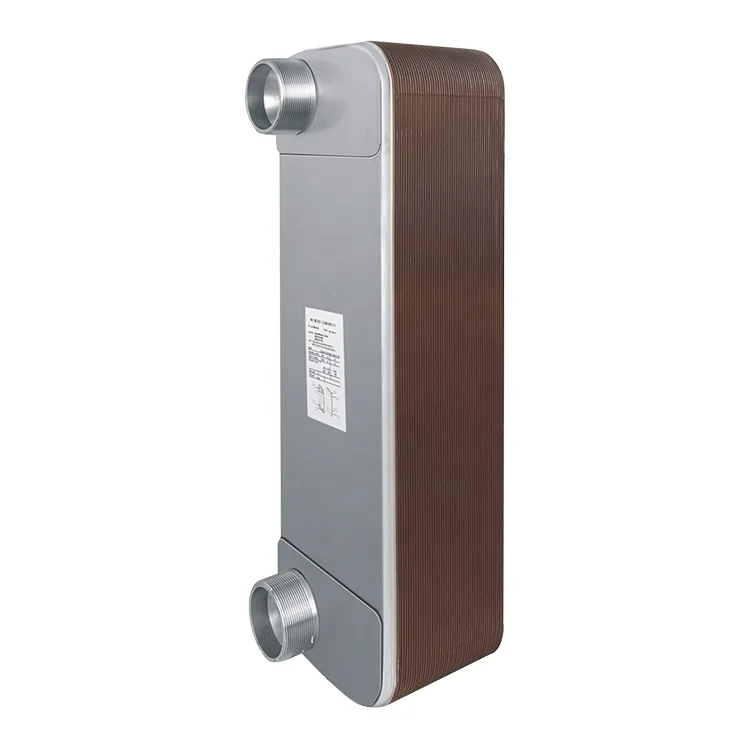

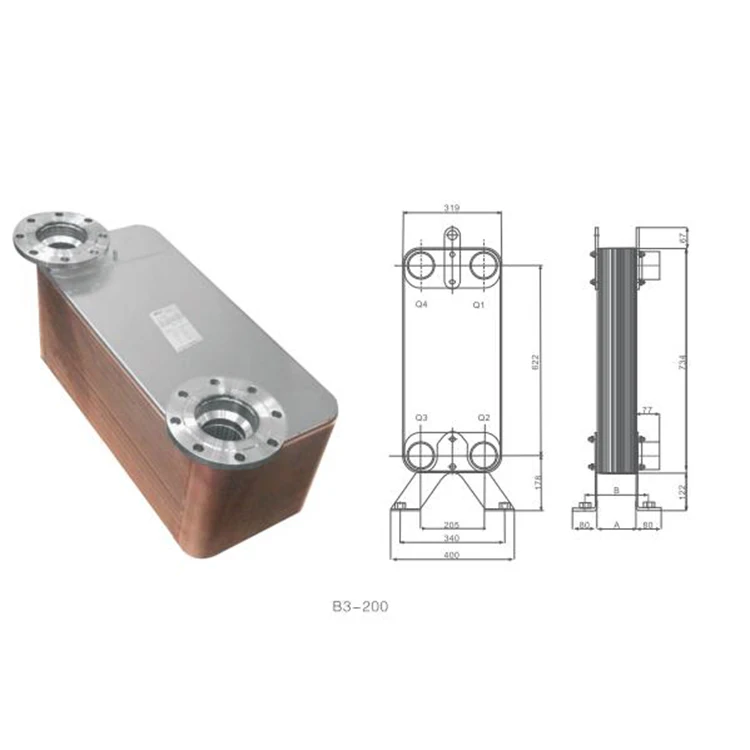

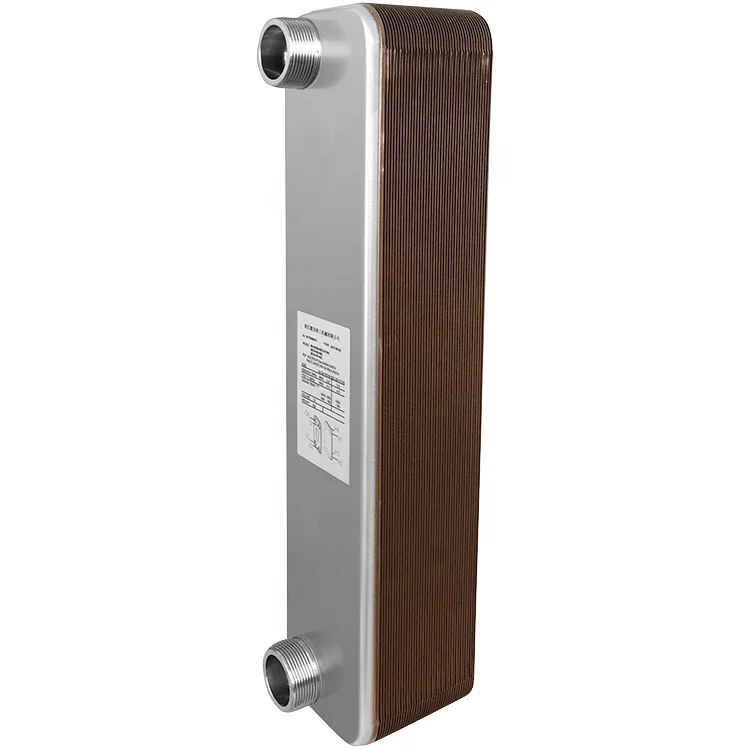

Brazed plate heat exchanger is a new type of high efficiency heat exchanger which is brazed by a series of metal sheets with corrugated shape.



A thin rectangular channel is formed between plates, and heat is exchanged through half pieces.



Compared with the conventional shell and tube heat exchangers, the heat transfer coefficient is much higher in the same flow resistance and pump power consumption, and there is a tendency to replace the shell and tube heat exchangers in the applicable range.





Characteristic:
1. high efficiency: combined with the characteristics of fluid turbulence technology, the heat exchange efficiency of the shell and tube heat exchanger is 3-6 times higher than that of the traditional shell and tube heat exchanger.


2.small size, light weight: only the equivalent of the tube and shell heat exchanger 20-30%, greatly reduce the design and installation space, so that the whole unit structure more compact, more reliable quality.


3. high temperature and high pressure: this metal material determines its own high temperature(up to 400 degrees C) and withstand voltage( working pressure 30BAR, enhanced to 45BAR)


4. ow cost: saving material cost compared with general heat exchanger, saving installation space and reducing overall design cost.


5. corrosion resistance: good corrosion resistance.


6. installation convenience: a variety of fixed ways, easy to install.


7.excellent quality: advanced industry leading technology and many years of practical production experience, creating high quality products.







Q:How to seek for after-sales service?

A:If you are not satisfied with the products you have got from our company, you can contact the sales manager who sold you the heat exchangers. Warranty usually start from the day when heat exchanger is installed and last for 12 months and warranty only contain the defect of manufacturing and material, but under no condition will the warranty last more than 12 months. In warranty period,our company will fix the product for free, and if the heat exchanger cannot be fixed than we will change a new one for you. Beyond warranty period, the repair service will be paid for.



About Delivery time

A----

Usually we send tne shipments in FOB term.However, the CIF are also acceptable which decided by the clients.



About Lead Time
A----

Usually it takes about 1520 days after we received your PO and prepayment.

However, it would depend on our production line schedule and the complexity of the item.



About Payment Term
A------

By T/T in Advance, or Irrevocable L/C at Sight.Equipments can be customized, leave us an inquiry to know more details about price, packingand shipping.





Q1: Are you a factory or a trading company?

A1: We are a factory



Q2: Where is your factory located?

A2: Our factory is located in Wenzhou city, Zhejiang province, you can go there by plane to Wenzhou international airport, it is about 7km from airport to our factory.



Q3: Is a sample available?

A3: Yes, but the sample will be at your charge.



Q4: What is the main market for your products?

A4: Our main markets are in the Middle East, Asia, Africa, Eastern Europe and Russia. We look forward to your cooperation.



Q5: What is your warranty?

A5: We can assure you one year against manufacturing defect.



Q6:Can we do our OEM logo?

A6:Yes,we can do OEM logo for you.



Q7:Can you do our country plug?

A7:Yes,we can do the plug according to your request without extra cost.
