Impact Force: | 14KN; | Warranty: | 3 years; |
Weight: | 80; | Condition: | New; |
Usage: | Construction Work; | Power(W): | 6.5HP; |
Name: | Tamping Rammer; | Supply Ability: | 100 Set/Sets per Month; |
Brand Name: | DingYe; | Certification: | CE ISO; |
Payment Terms: | L/C,T/T,Western Union; | Advantage: | Long Life; |
Voltage: | gasoline, diesel or electric; | After-sales Service Provided: | Video technical support,Online support,Free spare parts; |
PLATE SIZE: | 400*300mm; | Port: | Qingdao port, shanghai port or others; |
Place of Origin: | china; | Dimension(L*W*H): | 1*0.53*0.57M; |
Jumping Height: | 45-70mm; | Keyword: | Tamping Machine; |
Engine Brand: | Honda Brand; | Packaging Detail: | carton box or wooden box; |
Engine: | Honda GX160; | Model: | DYT80 tamping rammer; |

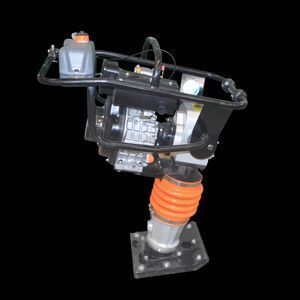

electric jumping jack
Features:
1.Single Cylinder air cool and 4 stroke .
2.Heavy duty throttle control provides more reliable and longer service.
3.Additional built in air filtration system plus the original air cleaners in the engline provides cleaner air to engline for longer life and improved durability.
4.An integrated fuel valve provides for easy starting.
5.Heavy shock mount system to reduce hand-arm vibration and improve operator comfort.
6.Plastic oil tank offers longer life and rust-free.
7. Rammer shoe made of steel plate with wooden insert offers economical usage.
8.Special protective frame for engine,prevents any possible damage on tough jobsite.
9.Special designed trolley kit fo easy transportation.
10.High quality,German made polyurethane bellow.Accepts more compacting force, offers a reliable lubricating system.
Technical Parameter:
Model | DYT80 |
Minimum height | 50-60mm |
Overall dimensions | 760*430*1000mm |
Ram plate size | 280*350mm |
The impact | 16kn |
Impact number of times | 420-650r/min |
Maximum output power | 3.0kw |
Gas tank volume | 3.0liter |
