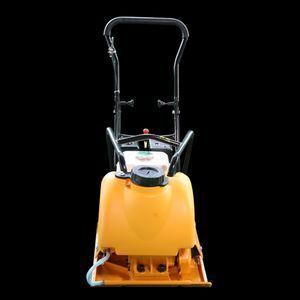

CE Vibrating Plate Compactor Soil Compactor

Supplier: Jining Dingye Heavy Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Luka Li
Price: $460.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;	Certification:	CE ISO;
Product name:	plate compactor;	Warranty:	3 years;
Application:	soil asphalt;	Plate Size:	600*420mm;
color:	yellow or you require;	Payment Terms:	T/T,Western Union;
weight:	70KG;	Power Type:	Gasoline;
Brand Name:	DingYe;	Condition:	New;
Place of Origin:	Shandong China;	Power(W):	5.5HP;
Dimension(LWH):	1104090;	Model:	DYP60;
Engine:	Honda or Loncin;	Type:	gasoline;

CE Vibrating Plate Compactor Soil Compactor

Products Description

Plate compactor made of nature rubber ,has better absorption, which protects the engine and user friendly.

Can modify machine for different purpose upon client's request

a. Add PU plate for use on fragile surface, it's absorb impact to the surface.

b. Add water tank for use on asphalt surface, anti-stick.

c. Add wheels for easier transportation

Many power source options to choose from, such as Honda, Robin and Loncin

Products Technical

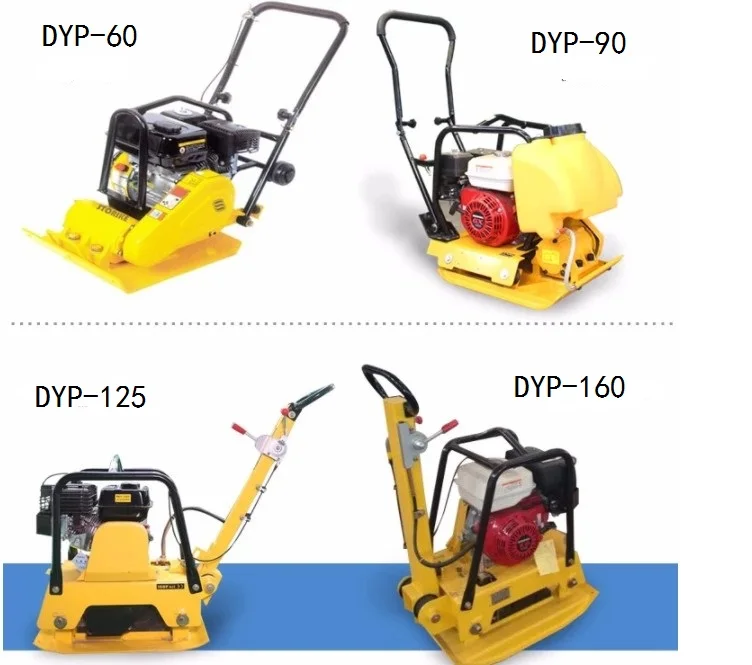

Model	DYP-60	DYP-90	DYP-125	DYP-160
Engine	HONDA GX160	HONDA GX160	HONDA GX160	HONDA GX160
Engine type	Gasoline Air cooling	Gasoline Air cooling	Gasoline Air cooling	Gasoline Air cooling
Power(HP)	5.5	5.5	5.5	5.5
Work Speed(m/min)	34	23	28	27
Exciting Force(KN)	10.5	15	25	30.5
Excitation Frequency(HZ)	93	92	72	67
Work Efficiency(sq.m./hr)	423	405	400	500
Compaction Depth(cm)	20	30	30	50
Working weight(KG)	66	90	125	159
Plate size(cm)	50*35	53*50	62*40	73*37
Rammer size(mm)	L1080W350 H850	L1100W500 H850	L1200W400 H930	L1250W370 H930

Products Details

1. Reverse plate compactor makes it more convenient to operate
2. Ductile iron base plate provides better durability
3. Open plate provides self cleaning
4. Radius base plate for easy access to corners
5. Sealed belt cover to prevent sand and soil in

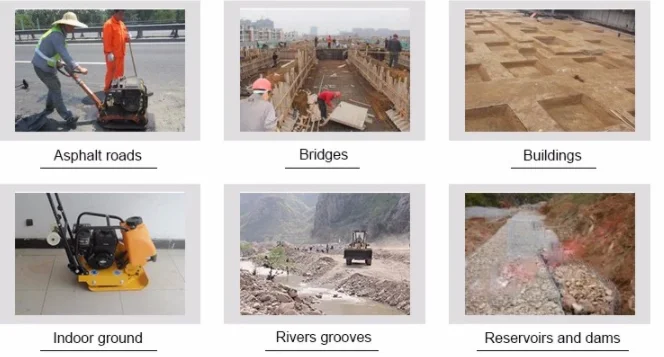

Hand held electric compactor vibratory plate compactor for sale is used in road, municipal, construction, water conservancy and other fields in the construction of roads, streets, buildings, canals, bridges, the engineering foundation, curb, asphalt pavement compaction.
