Production Capacity: | 100sets; | Power (kW): | 5.5; |
Place of Origin: | Hebei China; | Certification: | ISO and CE; |
Selling Units: | Multiple of 1; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Brand Name: | wanzhong; | Package size per batch: | 12X13X12 cm; |
Key Selling Points: | Competitive Price; | Application: | Produce Common Steel Nails; |
Raw material: | Low Carbon Steel Wire; | Speed: | 170-550pcs/min; |
Voltage: | 220V/380V/415V/440V; | Package Type: | wooden box , wooden pallet or customize 1825usd is 1C price; |
After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; | Nail length: | 10-127mm; |
Gross weight per batch: | 13 KG; | Model: | Z94-1C/2C/3C/4C/5C/6C; |
Name: | common nail making machine; | Warranty: | 1 Year; |
Package Preview: | https://sc01.alicdn.com/kf/HTB1Xrr9TYvpK1RjSZPiq6zmwXXab.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1lApubfc3T1VjSZLeq6zZsVXap.jpg_640x640.jpg; | Nail wire diameter: | 0.8-5.0mm; |
Applicable Industries: | Building Material Shops,Manufacturing Plant,Farms,Retail,Construction works ,Energy & Mining; | Condition: | New; |

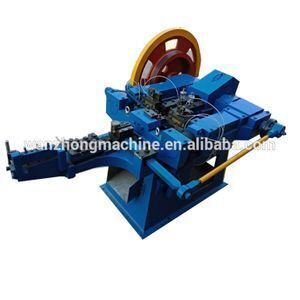

Common wire nail making machine adopts plunger type structure to ensure its high working speed, low noise and low impact characteristics.
Both scrap and new wire steel can be used as material for common wire nail making machine.
Main technical parameters:
Model | Z94-1C | Z94-2C | Z94-3C | Z94-4C | Z94-5C |
Max. dia. of nail | 2.0mm | 2.8mm | 3.2mm | 4.2mm | 5.0mm |
Min. dia. of nail | 0.8mm | 1.2mm | 1.8mm | 2.5mm | 2.8mm |
Max. Length of nail | 25mm | 50mm | 85mm | 105mm | 127mm |
Min. length of nail | 10mm | 16mm | 30mm | 50mm | 50mm |
Motor power | 1.5kw | 2.2kw | 3kw | 5.5kw | 7.5kw |
Nail making speed | 500-550pcs/min | 360-400pcs/min | 280-300pcs/min | 200-240pcs/min | 170-180pcs/min |
L*W*H(mm) | 1300*900*1100 | 1700*1000*1200 | 2100*1200*1300 | 2400*1500*1400 | 2700*1550*1450 |
Weight | 0.6tons | 0.8tons | 1.1tons | 1.7tons | 2.0tons |
Function features and advantages
This new type machine adopts plunger and oil pipe lubricating structure to ensure the high working speed, low noise and less impact. It has the features of advanced design, compact conformation, and attractive appearance. the machine load is small, stable and reliable operation. Automatic refueling system, the use of arc design, the strength of long life and so on.
The whole production process is below:
Scrap or new steel wire→ wire drawing machine→nail making → polishing → finishing nails
