China Factory Hydraulic Vertical Slotting Machine B5032 for metal

Product details
Place of Origin:Shaanxi China;Port:Qingdao/Dalian;
After-sales Service Provided:Engineers available to service machinery overseas;Packaging Detail:Plywood Case;
Payment Terms:L/C,T/T,We choose different payment methods accordingly;Warranty:12 Months;
Dimension(L*W*H):2290*1525*2285mm;Voltage:220V/380V;
Weight:3500kg;Brand Name:Premier Machines;
Key Selling Points:Competitive Price;Power(W):4kw;
Condition:New;Certification:ISO9001;
After-sales Service Provided:Online support,Video technical support;Applicable Industries:Manufacturing Plant,Machinery Repair Shops;
Supply Ability:50 Set/Sets per Month;
MASS_APP4_601_BEGIN

MASS_APP4_601_END

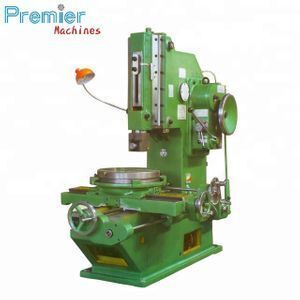

Vertical Hydraulic Slotting Machine for Metal

Model: B5032

Introduction

This machine tool is used for process planes,model surfaces,key seating,etc,

and it is suitable for the single-piece or small-batch production.

Feature



1) The main transmission mechsnism is used for converting the moting of the crank gear in order to reciprocating motion of ram .

The worktable us designed for ongirudinal ,cross and rotary feeding both auytomatically and manually.

The feed is stopped automatically.when the worktable is in case of trouble.

2) This machine is designed elaborately with high standardization,uniform ization ,systemation and

has reasonable arrangement with compact and harmonical construcition,pleasing appearance,conveninent maintenance.

3) The electric epuipment of this machine is suitable for 3-phasesA.C.power supply of 50 cycles.380V.

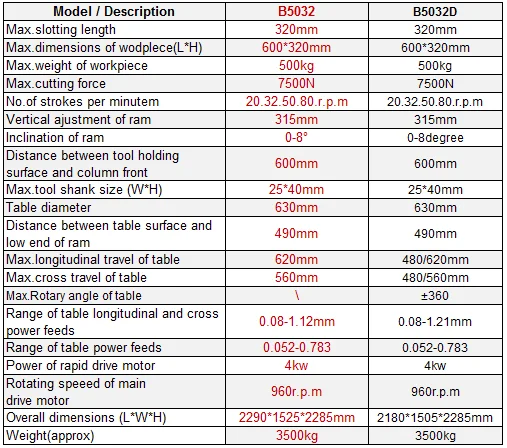

Specificatioin



Detailed Images
