XS-ASY Six Colors Gravure Printing Machine,Roto Printing Machine,Rotogravure Printing Machine

Supplier: Ruian Xinshun Machinery Factory
Region: Zhejiang, China
Contact: Ms Shelly zhou
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

heating power:	3.2kw;	Certification:	CE;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service;	Color & Page:	Multicolor;
Usage:	Paper Printer,plastic film printer;	Type:	Rotogravure Printing Machine;
Port:	Ningbo;	Brand Name:	Xinshun;
After-sales Service Provided:	Engineers available to service machinery overseas;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Usage:	soft package printer;	Warranty:	1 Year;
Condition:	New;	Weight:	5T;
machine color:	as required;	Dimensions(LWH):	8800x1200x1700 mm;
Automatic Grade:	Automatic;	Voltage:	380V;
Place of Origin:	Zhejiang China;	Packaging Detail:	Gravure Printing Machine will be packed by standard export packaing.;
Plate Type:	Gravure;	Supply Ability:	25 Set/Sets per Month as you request;

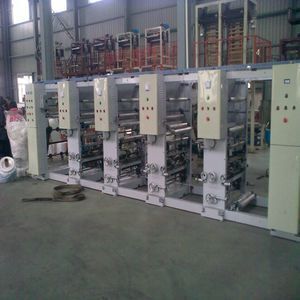

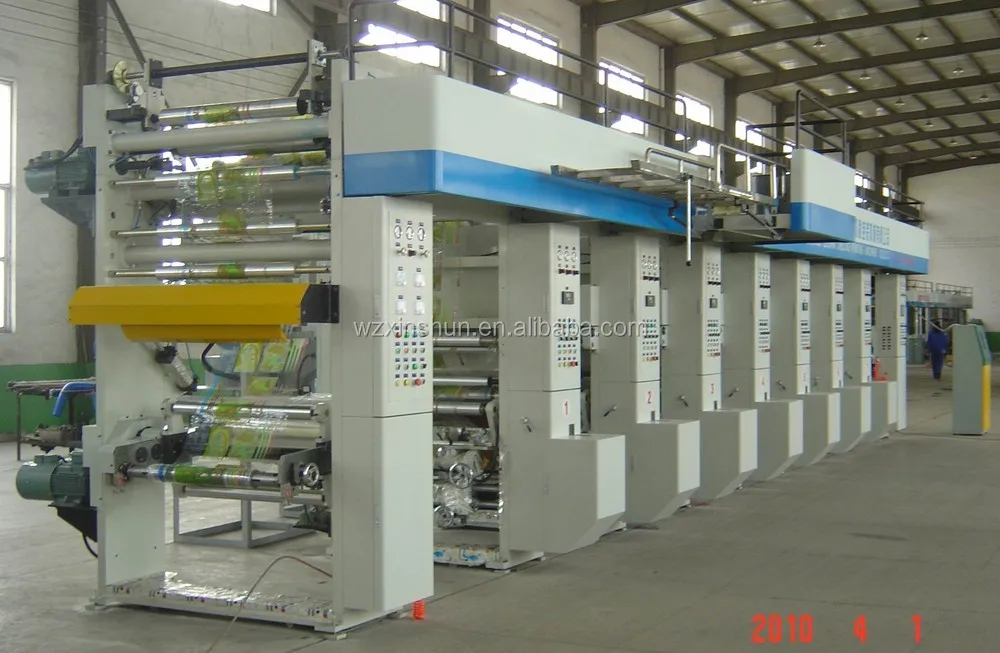

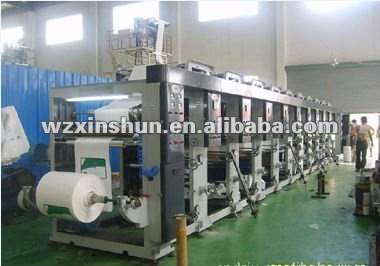

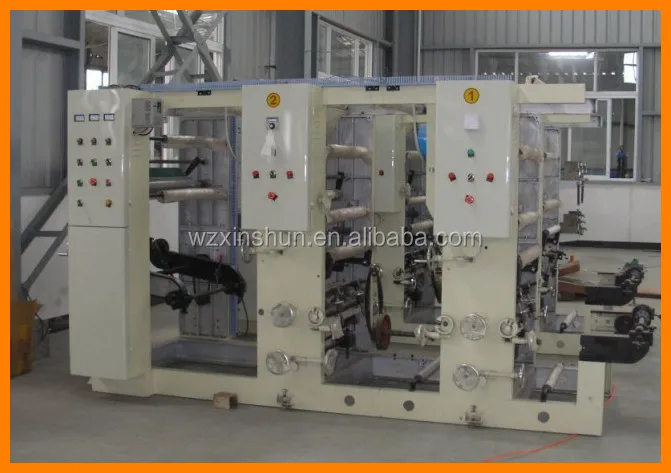

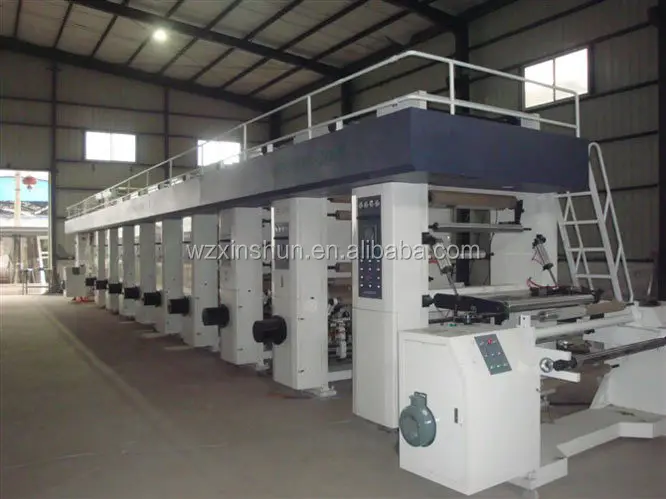

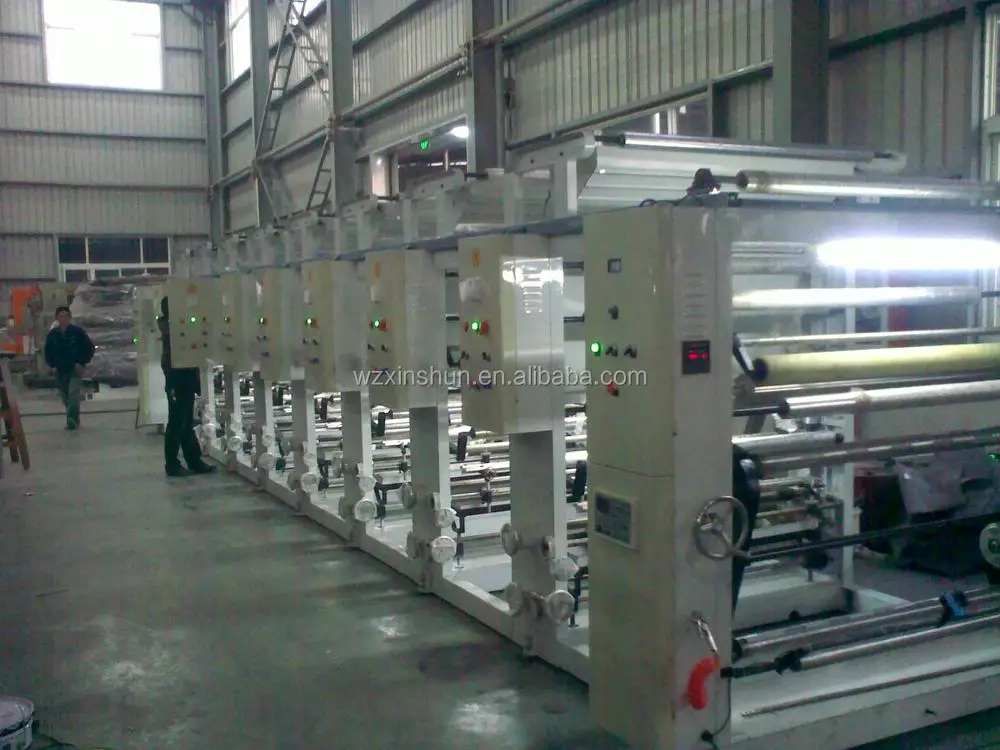

XS-ASY Six Colors Gravure Printing Machine,Roto Printing Machine,Rotogravure Printing Machine

This machine is suitable for printing roll plastic film, non-woven cloth, thin leather, paper, aluminum foil, and soft packages.

Rotogravure printing machine; rotogravure printing machinery; gravure printing machine

Performance and Features :
1. The latest improved gear box, 360 a on-stopping registration device.

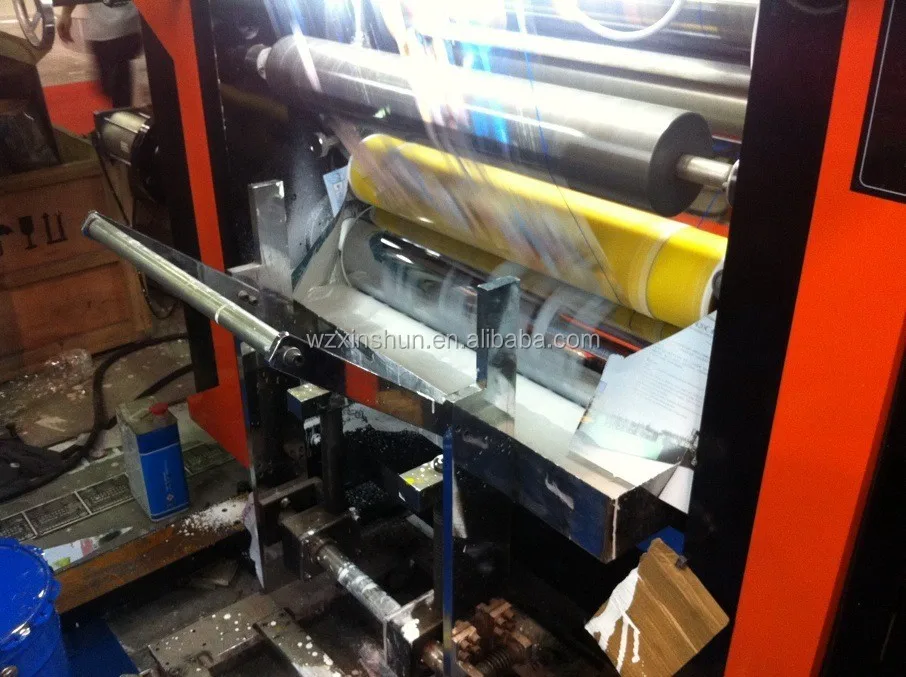

2. Movable type doctor blade, transverse reciprocating motion.
3. Far-infrared heating tube drying system can keep dry at a speed of 60m/min.
4. Unwinding and traction adopts magnetic powder brake to make material moving more stable.
5. Rewinding and traction adopt magnetic powder clutch to make color register accurate and rolling end face more neat and smooth.
6. Current output type temperature control system makes heating quicker and electricity saving.
7. Turnover double-station unwinding and rewinding mechanism, receiving and replacing material without stopping the machine.
8. Obverse and reverse side once-through continuous printing

Performance and Characteristics:

ASY-600,800,1000 Six Color Gravure Printing Machine It can be used for continuously printing various plastic films,cloths,thin leathers and package products, etc with one -sided and two -sided printing finished by once-throuth operation.360 register device is accruagte and doesn'taffect stretching of film so that color-checking of printing can be adjusted freely at any time.The farinfrared tube drying unit can keep drying at 50m\min so as to make picture clear and exquisite. The machine models of 2-8 colors can be chosen freely.

Main Teachnical Variables:

Model	600	800	1000
Printing width(mm)	600	800	1000
Printing Length(mm)	200-1250	200-1250	200-1250
Max.Speed of printing(m/min)	10-60	10-60	10-60
Format Precision(mm)	lower than 0.15	lower than 0.15	lower than 0.15
Power of main motor(kw)	4	4	5.5
Fan Power(kw/row)	0.19	0.19	0.19
Heating Power(kw)	3.2	3.2	3.2
Outline dimension(mm)	8800×1200×1700	8800×1400×1700	8800×1600×1700
