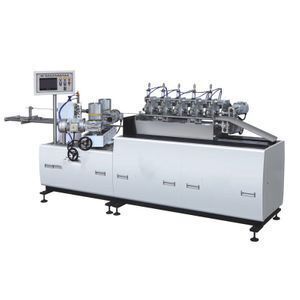

Ruain Xinshun high speed multi-cutters paper drinking straw making machine

Supplier: Ruian Xinshun Machinery Factory
Region: Zhejiang, China
Contact: Ms Shelly zhou
Price: $14800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Working Air Pressure:	0.6Mpa;	Payment Terms:	Western Union,MoneyGram;
Machine Size:	560016001750mm;	Cutting Length:	100-800mm, Encode Change;
Speed:	0-50 pcs/min;	Supply Ability:	30 Set/Sets per Month;
Working Space:	11000mm * 6000mm*2000;	Name:	High Quality Disposable Jum;
Weight:	2000kgs;	Cutter:	5 sets or 6sets;
Port:	Ningbo;	After-sales Service Provided:	Overseas service center available;
Dimension(LWH):	560016001750mm;	Warranty:	1 Year Warranty;
Brand Name:	XINSHUN;	Straw Color:	Colorful;
Voltage:	380V;	Straw Diameter:	5-12 mm;
Condition:	New;	Packaging Detail:	wooden box;
Place of Origin:	Zhejiang China;	Power(W):	7.7 KW;
Operator:	1-2 Persons;	Certification:	CE Certificate;

Automatic multi-cutters paper drinking straw making machine

Main technical parameter

Inner Diameter : 4.3-12mm

Paper Roll :2-3 Plies

Thickness : 0.25-1mm

Cutting Length : 120-850mm

Hub Wheel :Two Head

Way Of Fixing Shaft : Clamp

Production speed :10-50m/Min (20-30 degree summer 20-50m/min , 0-10 degree Winter 10-35m/min )

Way Of Cutting : 58*38*1.5mm Circular Cutting Blade

Way Of Gluing :Single / Double Side

Blade : 5 Groups

Paper Reel Stand :6 Plies Paper Reel Stand

Glue System : 2 plies independent glue tank

Main Motor : 1.5kwx2 CHINA KEJIN

Inverter : 3.7kw CHINA TAIWAN DELTA

Servo Motor : 1.3kw JAPAN YASKAWA

Pneumatic Component : China Taiwan Airtac
low-voltage apparatus : Schneider

Control System : Our factory design

Linear Guide System :JAPAN THK
Operator : 1-2 Persons

Main Part Dimension : 3250*1100*1450mm

Overall Dimension : 7200*4800*1500mm

Weight :1800kgs

Way Of Scraping Glue Independent Glue : Box/Polyurethane Scraping Blade

Moving Finished Paper Straw :Automatically

Lubricating Oil :Automatic Giving
