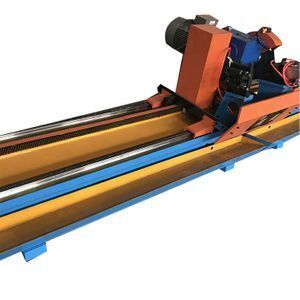

Automatic copper metal iron tube cutting circular cold saw

Product details
Packaging Detail:Export waterproof and Seaworthy packing.;Material:plain carbon steel;
Outlet way:stand out;Voltage:380V/220V;
Key Selling Points:High-accuracy;Place of Origin:Hebei China;
Warranty:1 Year;Port:Tianjin port or other China's major ports;
Dimension(L*W*H):5m*1.5m;Condition:New;
Supply Ability:200 Set/Sets per Year Pipe Cold Cutting Machine;Price:Negotiable;
Warranty:One year;Color:Blue;
Application:Pipe cutting;Rated Power:32.9kw;
Product name:Automatic copper metal iron tube cutting circular cold saw;Weight (KG):800;
Tube type:square tube below 100mm and corresponding square tube, round tube;Applicable Industries:Hotels,Machinery Repair Shops,Manufacturing Plant;
Certification:ISO9001,CE,BV;Wall thickness:0.8~4.0mm;
Fixed length accuracy:+ 2mm;Brand Name:Tengtian;
After-sales Service Provided:Online support,Field installation, commissioning and training;Payment Terms:L/C,T/T;

Automatic copper metal iron tube cutting circular cold saw

Product Description

Specifications:

♦ Long - term running with high speed and precision,low fault
♦ Easy to operate and maintain
♦ Long useful time,good characteristic



Main parameters:

1. Cutting Length: 0.5---32m Tunable

2. Cutting Precision: ±3mm

3. Max Cutting Frequency: 10 cuttings per min

4. Max Speed: 50m/min

5. Max Thickness of Pipes: 6 mm

6. Saw Head Action: Hydraulic Drive (Flat-pushing Manipulation)

7. Pipe Clamp: Hydraulic Clamping.

Material:

HRC,CRC,

Motor Type:

Servo Motor

Cutting Speed:

Max50m/min

Cutting Accuracy:

≤±2 Mm

Round Pipesize:

60-165mm

Thickness:

2.0-6.0mm

Saw Blade:

HSS / TCT Saw Blade

Square Pipe Size:

50*50 - 150*150mm







Model

Diameter Range

Thickness Range

Max. Speed

Motor

Dia. Of Saw Blade mm

clamping Type

CS - 32

12~38

0.4~2.0

120

YASKAWA / SIEMEMS

350

Pneumatic

CS - 50

20~63.5

0.6~2.0

100

YASKAWA / SIEMEMS

400

Pneumatic or Hydraulic

CS - 60

25~76

0.8~3.0

80

YASKAWA / SIEMEMS

450

Pneumatic or Hydraulic

CS - 76

25~76

0.8~4.0

80

YASKAWA / SIEMEMS

450

Hydraulic

CS - 114

50~114

1.2~5.0

60

YASKAWA / SIEMEMS

600

Hydraulic



Cold Cutting Saw for Pipe & Profiles:



Automated sawing tubes inline/offline & High Production.

High Speed Steel or Carbide Tipped Blades.

YASKAWA/SIEMENS servo motor & famous brand electric spare parts.

Almost fit for a variety of tube profiles.

Remove secondary chamfering or de-burring.

Carbon Steels, Stainless Steels, HSLA.

High speed and high precision cutting.
Excellent cutting edge, no burrs & save costs.

Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer's specific requirements, so each customer can buy his own well-content Cold Saw from us.
About us




                                                                                                                                                                                                                                     More>>



Our Customers

Our service:

1) We will send the engineer for  the installation and training your workers how to operate this machine in correct way.

2)  Warranty Team

One year quality guarantee, life guarantee repair.  Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3)  We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4)  We can also send the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

FAQ

Q: Do you have after sales support?
     Yes, we are happy to give advice and we also have skilled technicians available.
Q: Once we've bought a machine from you, are you able to supply us with material?
     We can assist you in finding the appropriate materials to suit your machine.
Q: Do you sell only standard machines?
     No, most of our machines are built according to customers specifications, using top brand name components.
