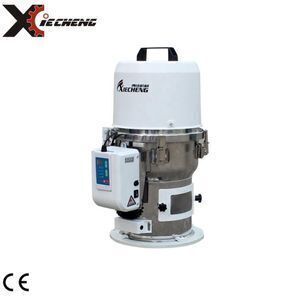

High Rotating Speed 300g 1hp Industrial Hopper Plastic Auto Loader Machine

Click here to contact

Product details

Power(W):	1100;	Dimension(LWH):	380280580mm;
Specification of the attached hoses:	38mm*3.5m 1pcs;	Weight:	12KG;
Conveying Tube Inner Diameter:	38 mm;	Certification:	CE;
After-sales Service Provided:	Online support,Video technical support;	Specification:	1.1kw/1.3HP;
Static wind pressure:	1300mm/H20;	Payment Terms:	L/C,T/T,MoneyGram;
Voltage:	220V/50Hz/1Phase as usual;	Type:	Carbon Brush;
Warranty:	1 Year Warranty;	Reservoir volume:	6 L;
Place of Origin:	Guangdong China;	Application:	plastic industry;
After-sales Service Provided:	Overseas third-party support available;	Supply Ability:	500 Set/Sets per Month;
Packaging Detail:	Standard wooden case or customized;	Lifetime:	more than 5 years;
Loading distance:	3.5 m;	Condition:	New;
Applicable Industries:	Manufacturing Plant;	Port:	Jiangmen/Guangzhou/Shenzhen;
Conveying capacity:	300kg/hr;	Brand Name:	XIECHENG;

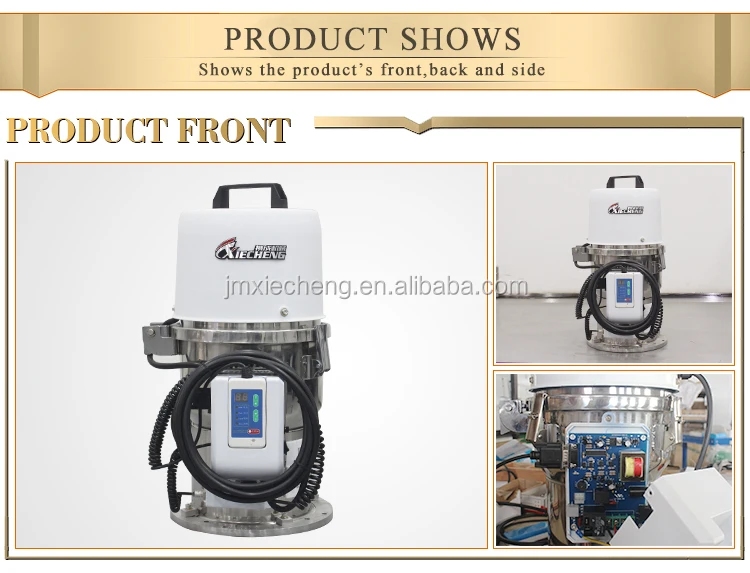

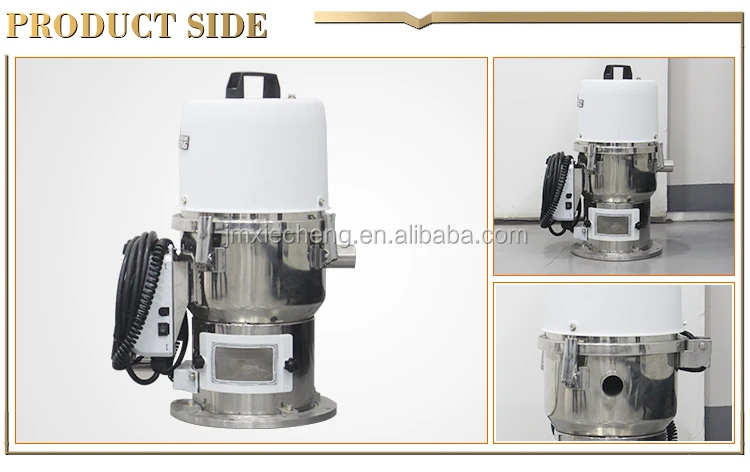

High Rotating Speed 300g 1hp Industrial Hopper Plastic Auto Loader Machine

With small footprint and low weight, available placed directly onto other machines or containers for auto loading.

Microcomputer controlled.

Alarm for overload and lack of material.

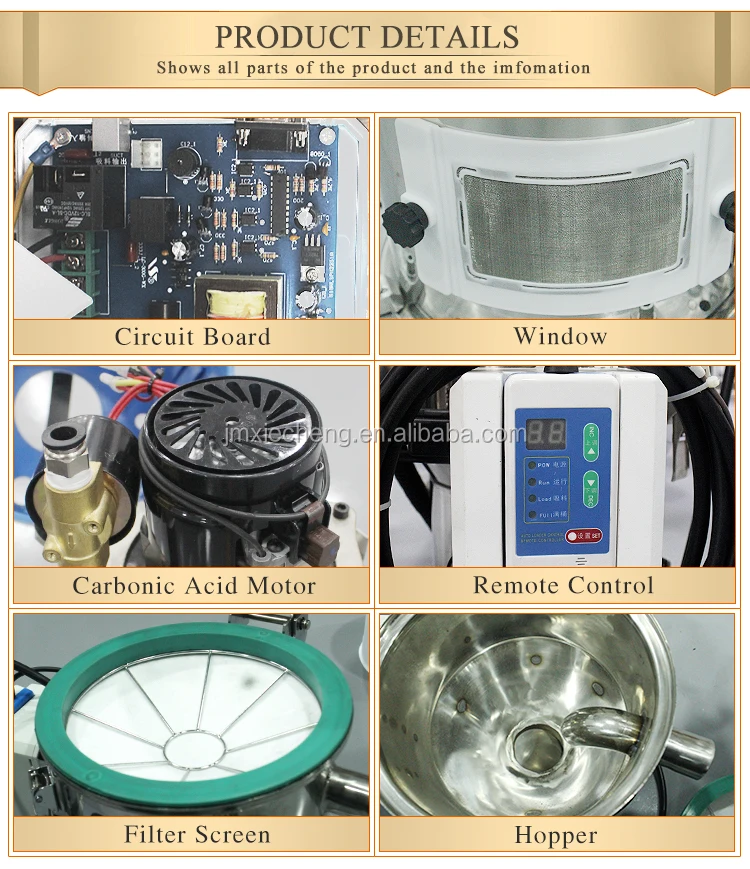

300G equipped with high – speed rectifier motor with delicate size and strong suction force – suitable for new materials.

400G with induction high pressure pump – with low noise and long service time.

Cable control board design – easy to set and control with distance.

Filter for air and dust (Optional part).

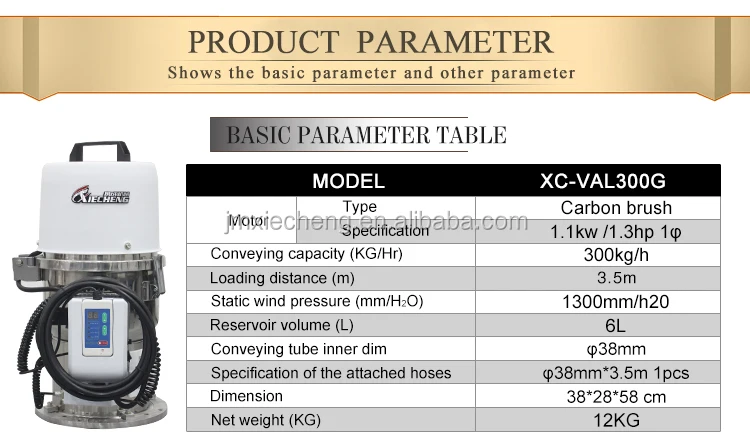

Model		XC-X300G	XC-X400G
Motor	Type	Carbon Brush	Induction
Motor	Specification	1.1kw/1.3hp 1φ	0.75kw/1hp 3φ
Conveying capacity(kg/hr)		300	330
Loading distance(m)		3.5	4
Static wind pressure(mm/H₂O)		1300	1400
Reservoir volume(L)		7.5	7.5
Conveying tube inner diameter(mm)		φ38	φ38
Specification of the attached hoses		φ38mm×3.5m 1pcs	φ38mm×4mm 1pcs
Dimensions(cm)		34×34×59	45×37×66
Approx. Net weight (kg)		12	27
