Packaging Detail: | Qualified wooden cases; | Power(W): | 15kw; |
Supply Ability: | 10 Piece/Pieces per Month; | Port: | SHANGHAI; |
Material: | Stainless Steel; | Condenser: | Vertical; |
Brand Name: | solventx; | Main uses: | Industrial Distillation; |
Place of Origin: | Shanghai China; | Certification: | CE/ISO9001; |
NAME: | Fall Film Evaporter; | Process: | Drum Evaporator; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Warranty: | 1 Year; |
Dimension(L*W*H): | 6.9x6.9x8.2ft; | After-sales Service Provided: | Free spare parts; |
Voltage: | 380V; | Power Source: | Electric; |
Weight: | 800kg; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Farms,Home Use; |
Recovery Speed: | 200L/h; | Condition: | New; |

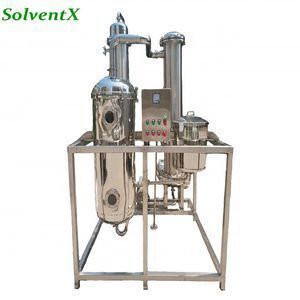

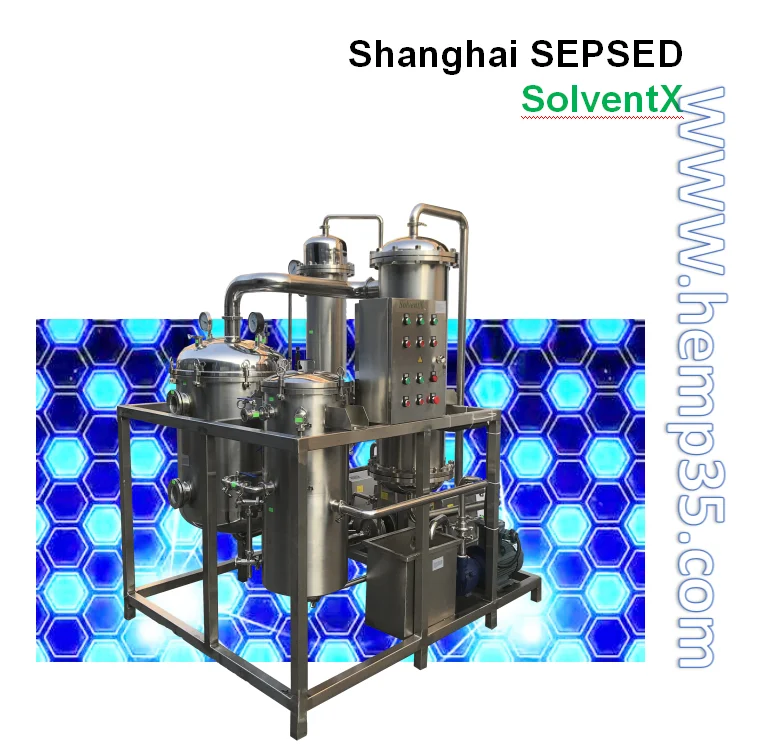

New Design Falling Film Evaporator
Falling Film Evaporator Technical Parameters
Parameters | FFE-100 | FFE-150 | FFE-200 | FFE-500 | FFE-800 |
Evaporation Capacity (kg/h) | 100 | 150 | 200 | 500 | 800 |
Steam Press (Mpa) | <0.25 | ||||
Vacuum Degree (Mpa) | 0.08 | ||||
Concentration Ratio | 1.2~1.3 | ||||
Dimensions (m) | 1.8*1.8*2.3 | 1.9*1.9*2.5 | 2.1*2.1*2.8 | 2.5*2.5*3.1 | 2.8*2.8*3.6 |

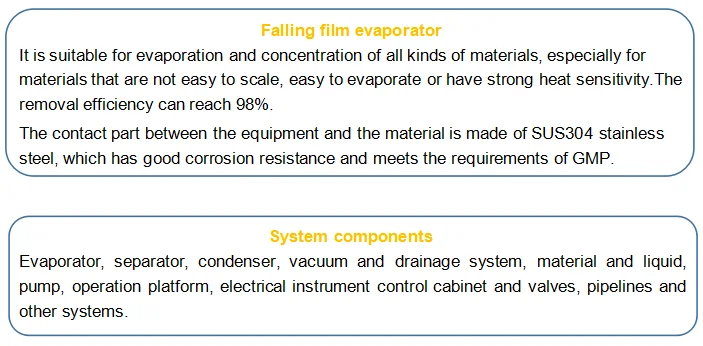

Our falling film evaporator system:
1) All system power by 3 phase 380V/50~60Hz;
2) Depending on what capacity you need;
3) Full part of Pipelines Valves Joints Fittings flanges;
4) Pumps & heater & chiller power of each model are options
