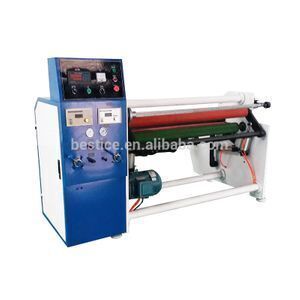

Automatic craft paper/BOPP/PET/release paper roll rewinding machine

Product details
Warranty:1 Year;Payment Terms:L/C,T/T,Western Union;
Labeling way:manual;Applicable Industries:Manufacturing Plant;
After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Port:Tianjin Xingang Port/Shanghai Port;
Unwinding paper core diameter:76.2mm;Min rewinding width:100mm;
The roller width:1350mm/1650mm;Voltage:380V 50hz;
Brand Name:BESTICE;Model Number:BC-806;
Weight:1000kg;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;Packaging Detail:1. film packing after wet and rust treatment 2. wooden case packing suitable for ocean shipping 3. according to customer requirement.;
Available working width:1300/1600mm;Material cutting way:manual;
Max. Unwinding diameter:800mm;Supply Ability:300 Set/Sets per Year;
Meter counter:meter counter sensor;Max. Rewinding diameter:250mm;
Place of Origin:Hebei China;Dimension(L*W*H):2250mm*1450mm*1400mm;
Certification:CE ISO9001;

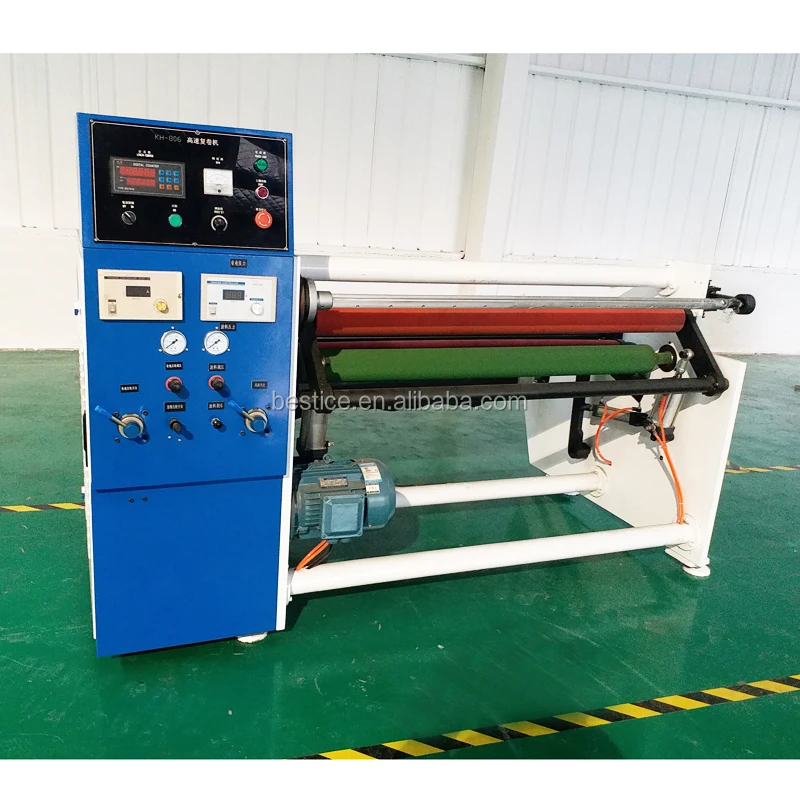

Automatic craft paper/BOPP/PET/release paper roll rewinding machine





1. Application

The one shaft rewinding machine is suitable for film, paper, and kinds of tape such as BOPP tape, masking tape, kraft paper tape, double side tape, and foam tapes, fiber tape, medical tape etc.







2. Specification

1) Available working width: 1300mm/1600mm

2) The roller width:1350mm/1650mm

3) Max. Unwinding diameter: 800mm

4) Unwinding paper core diameter: 76.2mm

5) Rewinding working width: 100mm to 1300mm

6) Max. Rewinding diameter: 250mm

7) Rewinding core diameter: 25.4/38/76.2mm

8) Machine speed: 150m/min

9) Power source: 380V 50Hz 3 Phase

10) Air source: 5kg

11) Machine size: 2250mm*1450mm*1400mm

12) Weight: 1000 kg

13) All machine finished will do the running test.





Related Product

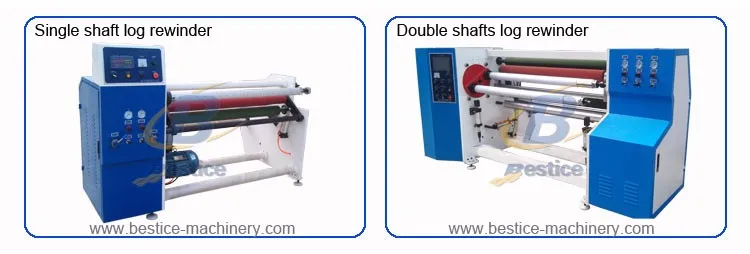

Single/ Double shafts log rewinder

Log rewinding machine is suitable for rewinding various tape such as BOPP tape, PE, PET, masking tape, double-sided tape, foam tape and paper, film etc many other adhesive and non-adhesive materials.

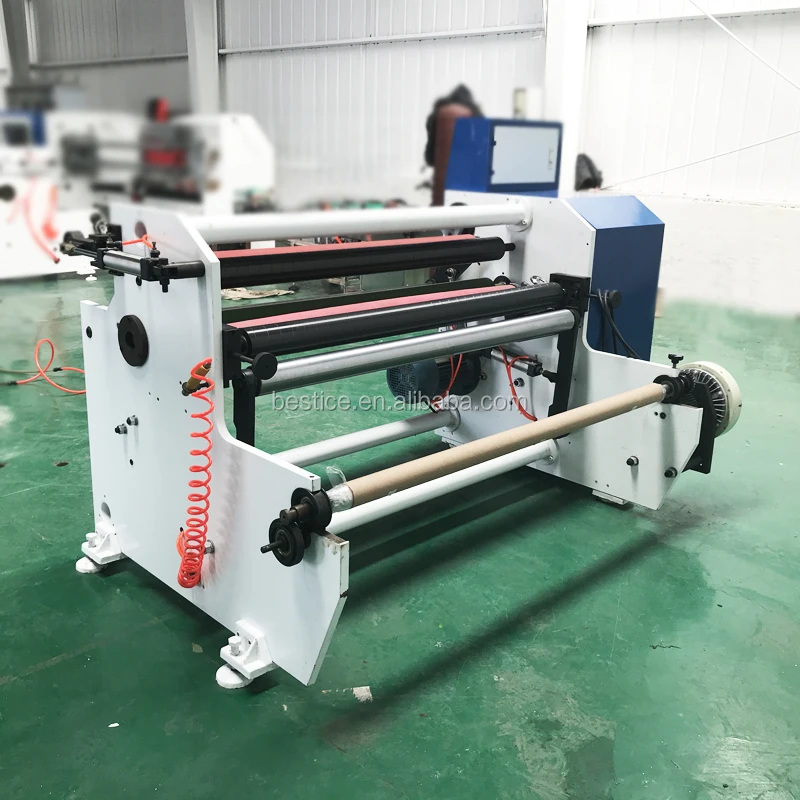

Automatic log slitter
Suitable for cutting various tape, such as: BOPP, PVC, PE, masking tape, double sided tape, kraft paper tape, foam tape, industrial tape and paper, film, etc.







Certifications





Packaging & Shipping







Our Services


Pre-sales



As long as you tell us your detail requirement then we will supply the appropriate and cost-effective machines for you. And we have the R&D department and can customize for you. For all your request, we will supply best suggestion and solution on time.



On sale



 During the manufacturing time, if you have any query, you  can contact with us freely You could contact us by e-mail, or by Skype, Whatsup, or Wechat and QQ.

Welcome you to visit our factory to check the machine. We will pick you up from airport or train station.



After-sale service



We have the engineers available for overseas service, Installation and setup and train your worker for running the machine. If you meet anything you can not solve then you can conatct us freely. We will cooperate with you to solve it.



QC



All our machine will be tested by our QC department before shipping, to ensure every machine will work well after they reach you. The QC is through all production, from raw materials, processing, assembling, finished machine testing.





Our Clients

We coopreate with the customers worldwide, America, Japan, india, Pakistan, Bangladesh, Uzbekistan, Middle east, South America, Africa, ect .Following pictures are all took at customer factory.

Company Information




Hebei Bestice Machinery factory was established in 1998 and we are professional in manufacturing carton box,tape, paper and film machineries which is widely used in various industries.

Carton box making machine mainly including: corrugated cardboard production line, automatic/semi-automatic printing slotting and die cutting machine, automatic/semi-autoamtic laminator, automatic/semi-automatic carton folding gluing machine,carton stitching machine, single facer flute corrugation machine, sheet cutter, thin blade slitter scorer etc.

Tape,paper and film processing machine mainly including: automatic cutting machine, rewinding machnie, BOPP tape slitting rewinding machine, film/paper slitter rewinder, cross cutting machine, coating machine, printing machine etc.

All of our machines are heavy duty construction and built by high quality components for reliability and long life service; it guarantee to provide an excellent return for your capital investment. We already cooperated with the customers from America, Canada, Spain, England, Japan, Russia, India, Malaysia, Bangladesh, Pakistan, Saudi Arabia, Ethiopia, Algeria, Mexico, Chile etc.

We sincerely hope: we work together for better future!
