Automatic Prestressed Concrete Pile Machine

Product details
Condition:New;Wheel Materail:Casting steel;
Single gross weight:2,000 KG;Usage:Foundation;
Place of Origin:Shandong China;Frequency:Yes;
Product Name:Concrete Pile Machine;Warranty:24 months;
Weight:3T;After-sales Service Provided:Engineers available to service machinery overseas;
Application:Concrete Pile;Efficiency:300 Posts /day;
Cylinder Material:Q235;Selling Units:Single item;
Package Type:Prestressed Concrete Pile Machine packed in 40HQ or OT container;Length:6-18m;
Brand Name:Haiyu;Single volume:40 cm;
Piling Speed(m/min):Depends;Certification:ISO9001;
Advantages:High effectve;Dimension(L*W*H):Customised;
Diameter:300-1500mm;
Product Description

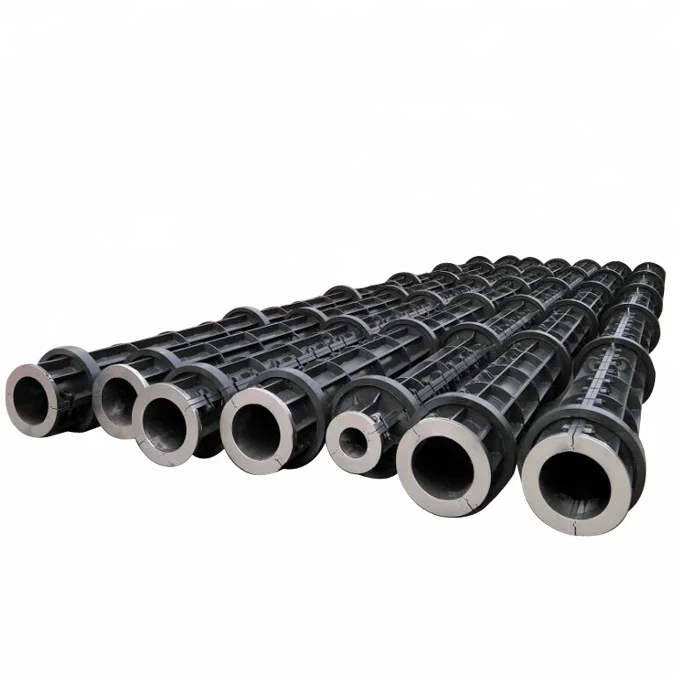

PHC Concrete Pile Mould

According to Concrete pile strength , there are PHC piles, and PC piles, According to different wall thickness, there are PC piles and PTC piles. Spun pile production line is used to produce High strength Cocrete piles. The popular specification of PHC piles are3 00mm ,400mm, 500mm, 600mm, 800mm and 1000mm, the length can be 7-15 meters, or we can design the mould according to your request.

Related Machine
Detailed Images

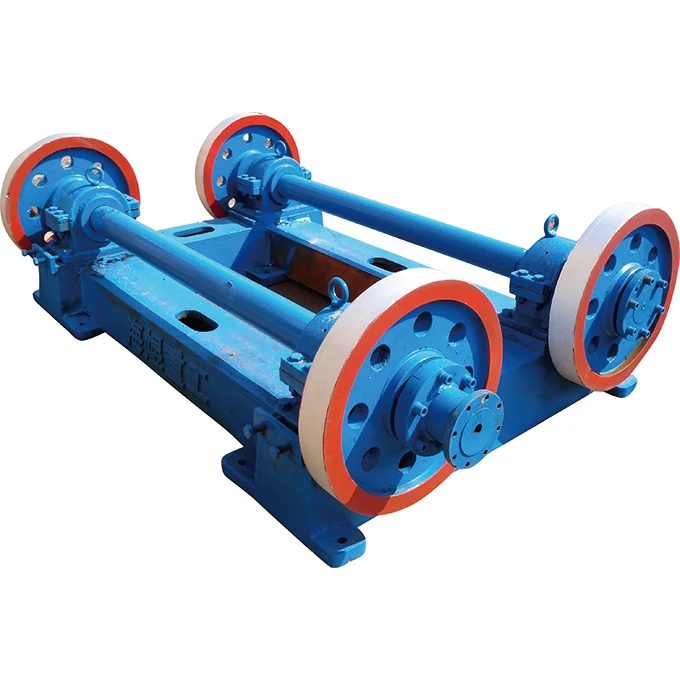

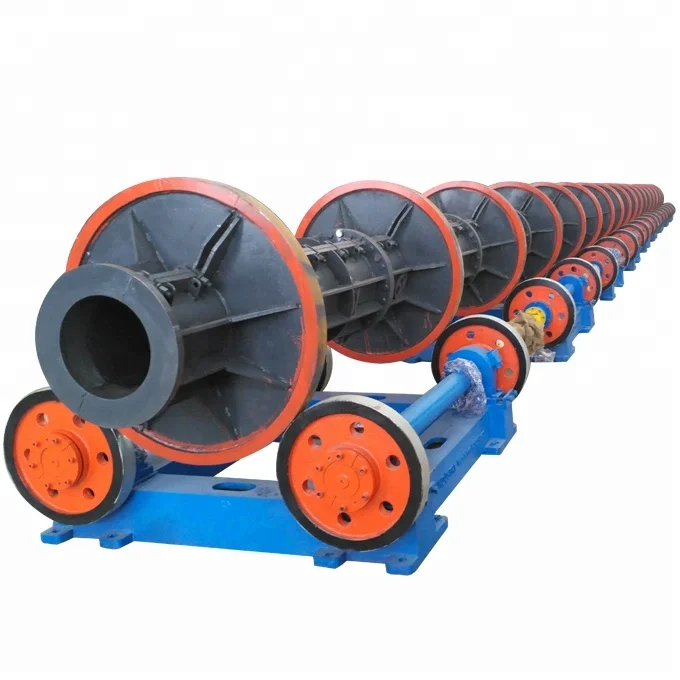

Spinning Machine

Name:  Centrifugal spinning machine for concrete pile

Brand:  Haiyu

Original: China

Driving Shaft Diamter: 110mm;
Diameter of Riding Wheel: 600mm
Wheel Material: High Frequency quenching treatment ZG45

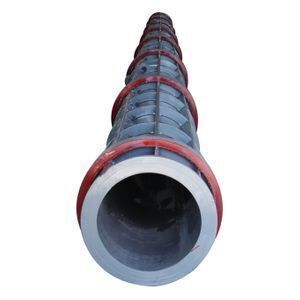

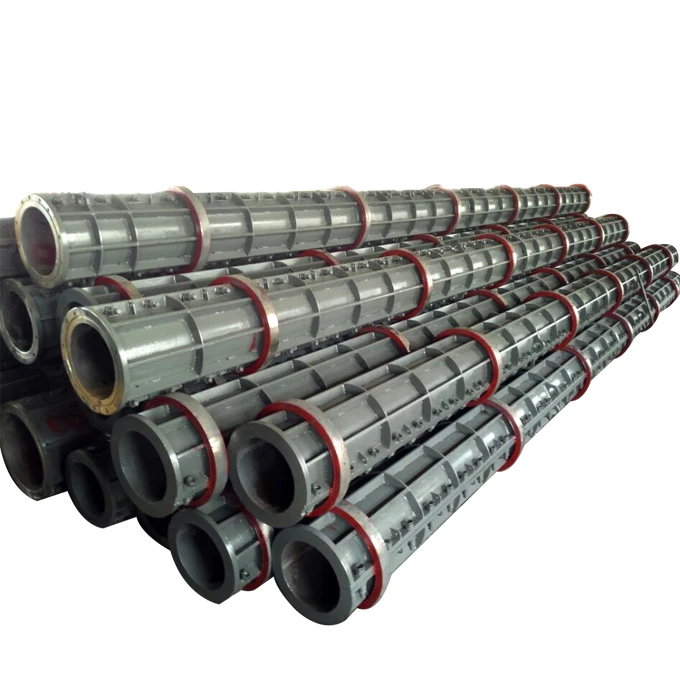

Concrete Pile Mould

Name: Concrete Pile Mould for concrete pile
Brand:  Haiyu
Original: China
Cylinder Material: Q235
Steel Plate Thickness: 10mm

Flange thickness: 35mm

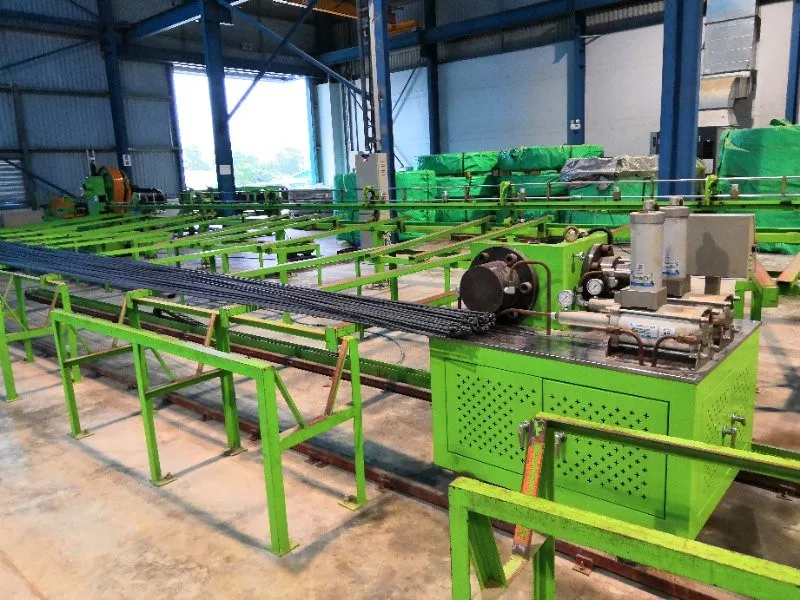

Heading Machine

Name: Heading Machine for concrete pile

Brand: Haiyu
Original: China
Steel wire diameter : Ф7.1、Ф9.0、Ф10.7、Ф12.6

Heading Speed: 4-8/min

Maximum clamping force: 50T

Clamping Pressure: 12~25MPa

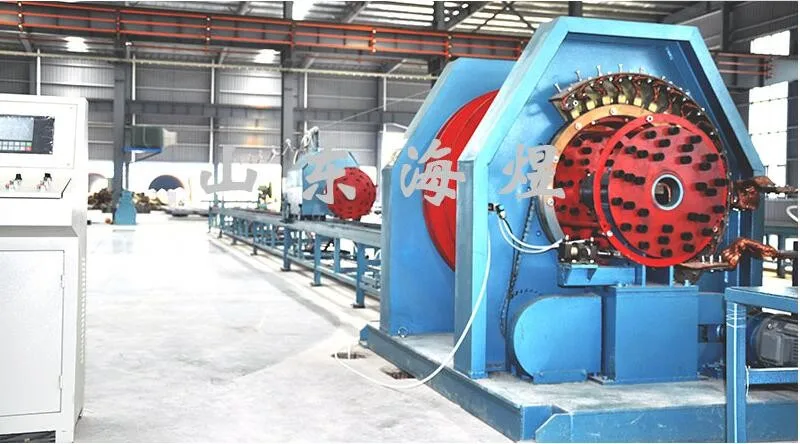

Steel Cage Welding Machine

Name:  Steel cage welding machine for concrete pile
Brand:  Haiyu
Original:  China
Welding Length : 8-15m

Welding speed : MAX3000mm/min

Control Method : Automatic

Welding power: 200KVA

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
40HQ container or truck
Weight
25-30 T



Packaging Details
For the spare parts or some small parts we will packed in wooden box. We also can packed it according to customers special request.
Packaging
Size
1000 (L) * 1400 (W) * 1500 (D)
Weight
2T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
