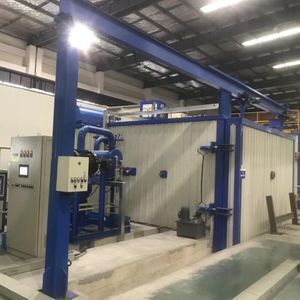

Transformer insulator coil drying furnace vacuum oven

Click here to contact

Product details

Brand Name:	SIMUWU;	Weight:	4T-110T;
After-sales Service Provided:	Engineers available to service machinery overseas;	Temperature fluctuation:	≤±1℃;
Payment Terms:	L/C,T/T;	Warranty:	12 Months;
Power(W):	adjustable;	Condition:	New;
Technical Parameters:	custom mode;	Dimension(LWH):	Customized;
Operating temperature range:	From room temperature to 200 ℃;	Applicable Industries:	Manufacturing Plant;
Key Selling Points:	Flexible Manufacturing;	Supply Ability:	2 Set/Sets per Month quickly delivery time;
Place of Origin:	Shanghai China;	Product name:	Hot Air Circulation Vacuum Drying Equipment For The Transformer Body;
Packaging Detail:	Sea transportation suitable package Transformer insulator coil drying furnace vacuum oven;	Type:	Vacuum Drying Equipment;
Port:	SHANGHAI;	Power(W):	Customized;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;

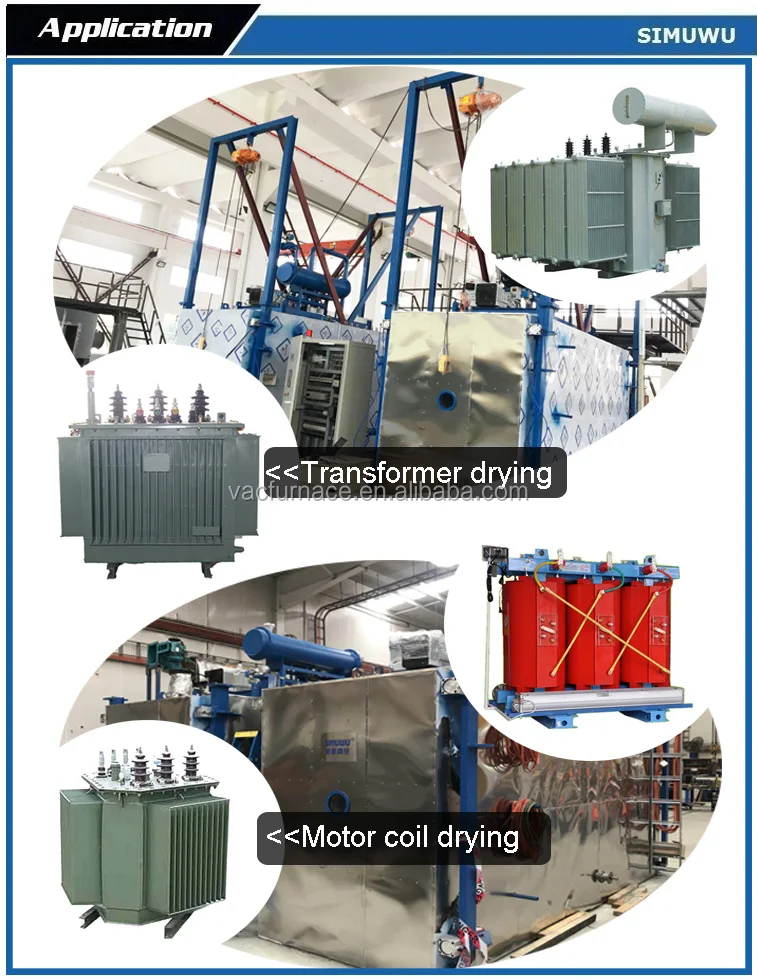

Warranty:	12 Months;	Application:	transformer;
Condition:	New;	Voltage:	380V;
Certificate:	ISO9001 CE;	Certification:	CE ISO;

Product Description

Introduction

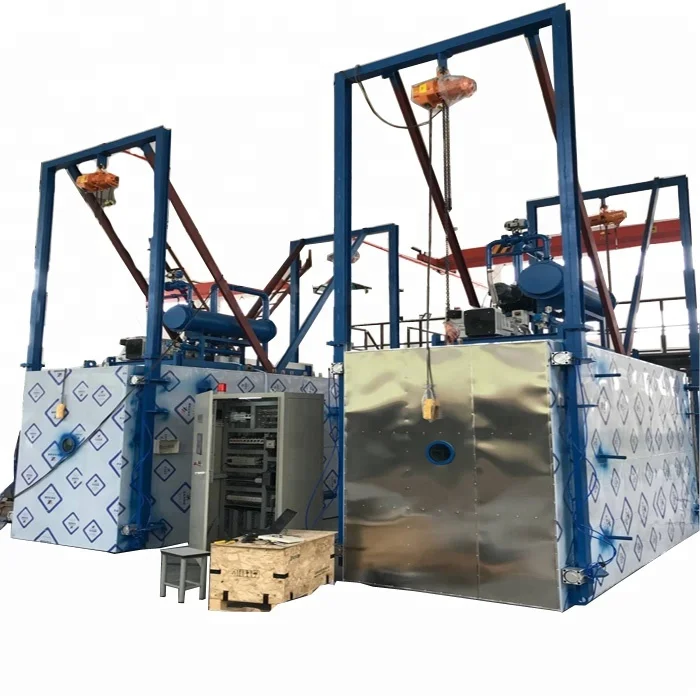

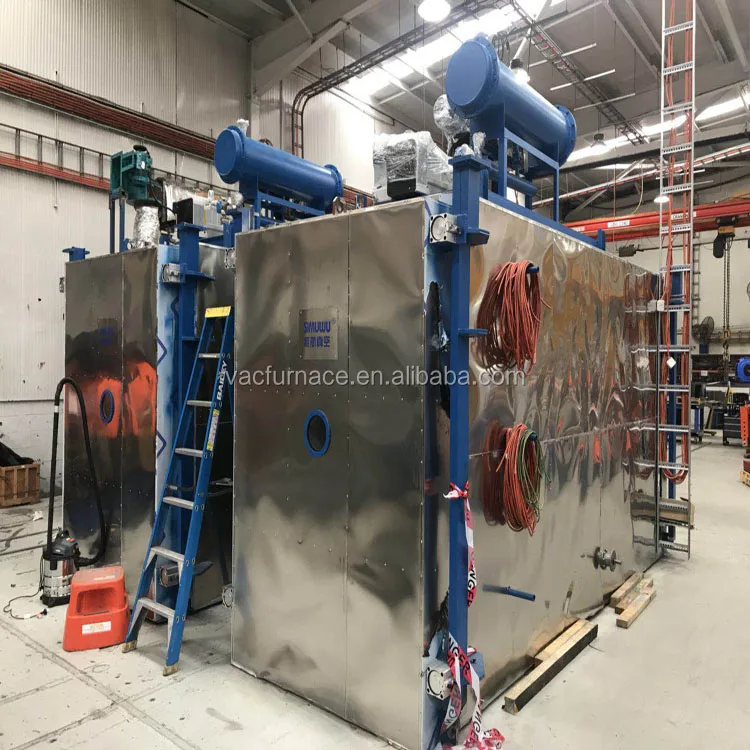

GH-HC series this plant is suitable for the transformer body drying

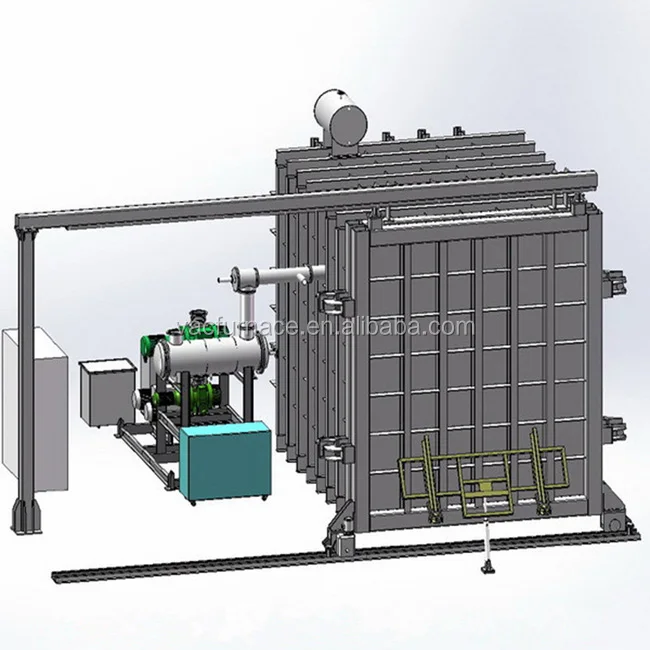

Structure

1, Vacuum drying chamber

2, Vacuum system

3, Closed hot air circulation system

4, Thermal oil heating system

5, Refrigeration system

6, Compressed air system

7, Cooling water system

8, Hydraulic system and two chambers open cover mechanism

9, Measurement and control system

Technical paramters

Name	Hot air circulation vacuum drying curing oven	Technical Parameters (Can be adjusted according to user requirements)
Technical Parameters
Power	3 Phase 380V 50HZ
Operating temperature range	From room temperature to 200 ℃
Empty furnace heating time	40~100℃/h
Furnace surface temperature rise	≤Room temperature+25℃
Temperature fluctuation	≤±1℃
Temperature uniformity	≤±25%(referring to the highest temperature)
The heating power	Based on the oven volume
Blasting power	0.75KW/ unit, the number to be determined
Exhaust power	0.75KW/1unit
Effective size
160018002000mm(WHL)
200020003000mm(WHL)
200020003500mm(WHL)
Can be customized according to user requirements of non-standard size
Trolley size	The box of this package
Furnace body	The overall framework of the structure, large oven site with do
Door	Manually open the front of the furnace door
Shell	Q235 cold-rolled steel plate after anti-rust treatment, spraying acrylic dry paint
Liner	Q235 cold-rolled steel plate by rust treatment, spraying W61 series of silicone heat-resistant paint
Shell skeleton	Q235 channel, angle steel rust treatment
Liner skeleton	Q235 rust-proof steel angle rust treatment, spraying W62 silicone temperature system paint
Insulation Materials	High-quality aluminum silicate cotton, rock wool or other insulation materials

Rectangular chamber
