Plasma nitriding vacuum heat treatment furnace

Product details
Type:Plasma nitriding vacuum furnace;After-sales Service Provided:Engineers available to service machinery overseas;
Place of Origin:Shanghai China (Mainland);Supply Ability:2 Set/Sets per Month Plasma nitriding vacuum furnace;
Voltage:220V/380V;temperature uniform size:custom made;
Usage:Heat Treatment Furnace;pressure rising rate:0.67Pa/h;
Power(W):adjustable;Packaging Detail:Safety bulk lashing plan for over weight & over volume parts, containers for normal. plasma nitriding vacuum furnace heat treatment;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Payment Terms:L/C,T/T,Western Union,MoneyGram,Plasma nitriding vacuum furnace;
Weight:2T-35T;usage:applied for gears, crankshafts, camshafts;
Condition:New;Brand Name:SIMUWU;
Product Name:Plasma nitriding vacuum furnace;Dimension(L*W*H):Custom Made;
product range:vacuum heat treatment furnace;name:Plasma nitriding furnace;
Port:SHANGHAI;Certification:ISO9001:2008 CE;
Max temperature:650C;Warranty:12 Months;
temperature uniformity:+/-5degree;loading capacity:custom made;

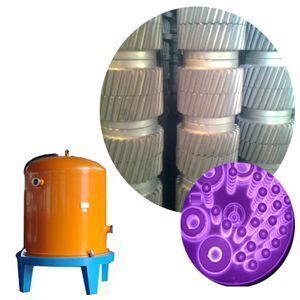

Plasma nitriding vacuum heat treatment furnace

Product Description



Plasma nitriding vacuum heat treatment furnace





Glow plasma nitriding technology is an energy-saving, environmental protection, precise and efficient surface heat treatment process, which can be applied to the surface reinforcement of important parts and tools. Over the years, we have studied theplasma heat treatment technology field extensively and deeply and completed a number of major national research projects and obtained many patents. Our equipment and process technology has been successfully applied in key parts.



Available equipments:

RVN-LD series pulse power plasma nitriding furnace

Auxiliary heated ion nitriding furnace

Touch screen +PLC control automatic plasma nitriding

Computer controlled plasma nitriding furnace.

Pit type plasma nitriding furnace.

Non-standard and special plasma nitriding furnace.



Provided process and training

Deep controllable plasma nitriding patent technology, nitriding depth can reach 1.2mm and control the surface structure to obtain excellent fatigue properties.

Plasma oxygen sulfur nitride co-infiltration, on the outside of the diffusion layer, FeS and Fe3O4 layers with thefunction of oil storage and solid lubricant are obtained, which combine wear-resistance and reducing wear performance.

Our plasma nitriding production base has complete inspection equipment with four large plasma nitriding furnace,providing technical training and turnkey project at any time.

Plasma nitriding vacuum furnace



NameParameter

vacuum heat treatment furnace (hardening, annealing,

tempering, quenching)

steel heat treatment
ModelVertical
Ultimate vacuumCustom made
Pressure rising rate0.67pa/h ( adjustable )
Max temperatureCustom made
Temperature uniformity±5℃
Heating powerCustom made
Temperature control methodIntelligent programmable temp controller
Control methodIntelligent programmable temp controller

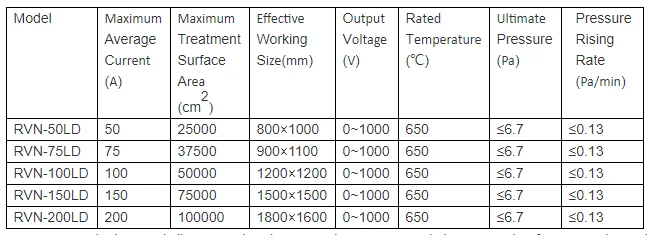

 Specifications

Plasma nitriding vacuum furnace

vacuum nitriding furnace

Plasma nitriding vacuum furnace

Note: non-standard size and pit type, auxiliary heating and program control plasma nitriding furnace can be customized.

The structure of the equipment is unique,and it can choose to equipped with DC or pulse power supply, providing the equipment and mature technology turnkey project.

With advanced deep plasma nitriding and plasma multi-element co-infiltration technology, we provide process debugging,equipment upgrading and other services.



Click here for more informations!







 Application fields: Die steel, stainless steel, gear, high speed steel, tool steel and so on.



Advantages of Vacuum Heat Treatment:

Vacuum as "Protective Atmosphere"

? No toxic protective gases containing CO

? No health hazards in the work shop

? No danger of explosion or open flames

? No furnace conditioning

? Use of inert gases (nitrogen or helium)

? No CO2 emission

Vacuum Carburizing

? Use of various processes

? Use of different gases

? Shorter carburizing cycles than in conventional technology

? Higher carburizing temperatures offer potential to further reduce process time

? Small gas consumption l instead of m3

Gas Quenching Instead of Oil Quenching

? Clean, dry parts after hardening

? No washing machine - no disposal of washing water

? No maintenance of washing equipment

? No complicated washing water chemistry

? Saves space

? Cost benefits

? Quenching intensity is controlled via gas pressure or gas velocity

? No vapor blankets during quenching

? Homogeneous quenching

? Reduced distortion

Surface Influences

? Free of surface oxidation

? No surface decarburization

? Bright, metallic, shiny parts

Plant Operation / Installation / Maintenance

? No idling over the weekend

? No continuous gas consumption

? Short heat-up times

? Fast access to installed modules

? No fire detection or sprinkler system

? No open flames

? No flammable gas mixtures

? Cold-Wall Technology

? No gas emission

? Minimum energy loss

? No heat radiation to atmosphere

Auxiliary Equipment of Protective Gas Plants are no longer required, like:

? Fire safety equipment

? Sprinkler system

? Exhausts

? CO2 extinguisher for the oil bath

? Measuring CO concentration in the shop

? Smoke exhaust in the roof (automatic opening and closing)

? Oil-proof floor or tank

? Methanol storage
