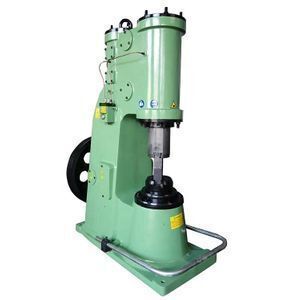

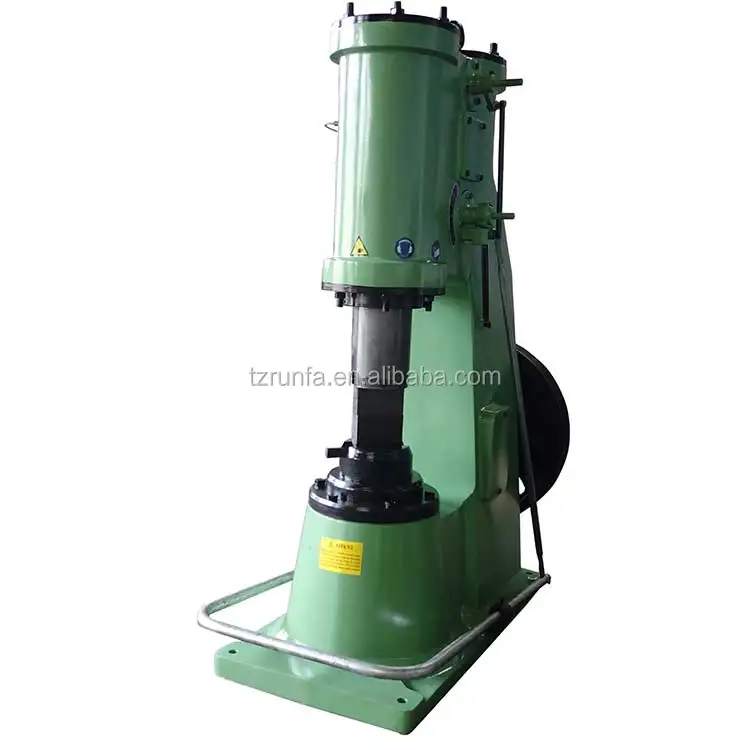

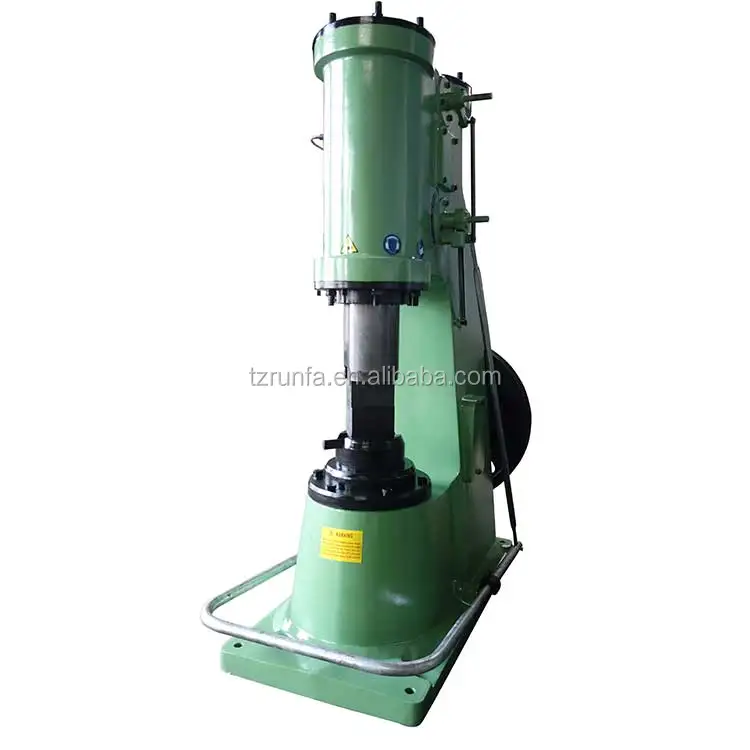

C41-75KG/55KG/40KG/25KG/20KG/16KG/6KG Air/Pneumatic Power Blacksmith Forging Hammer

Product details
Distance between top adn bottom die:300mm;Applicable Industries:Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Retail,Food Shop,Construction works ,Food & Beverage Shops;
Dimension(L*W*H):1500X720X2050mm;After-sales Service Provided:Free spare parts,Video technical support,Online support;
Supply Ability:20 Set/Sets per Month;Distance from center of die to frame:300mm;
Power(W):7.5KW;Condition:New;
Voltage:220V/380V/415V/440V;MAX.HIT ENERGY:1KJ;
Packaging Detail:Exporting required package;Hammer die surface:145x65mm;
Certification:CE;Brand Name:HeLi;
Port:QINGDAO;Weight:2400KG;
Place of Origin:Shandong China;Warranty:1 Year;
falling parts weight:75kg;Forged round steel:85mm;
Main motor power:7.5kw;Payment Terms:L/C,T/T;
HIt frequency:210pecs/min;Forged reactangle steel:75mm;

Item



Unit



Numerical Value



Weight of falling parts



kg



75



Maximum blow energy



kJ



1



Distance from center of die to frame



mm



300



Distance between top and bottom die



mm



300



Number of blows per minute



min-1



210



Dimension of top to bottom



mm



145*65



Diameter of the working cylinder



mm



235



Diameter of the compressing cylinder



mm



240



Travel distance of malleus



mm



345



Travel distance of plunger



mm



200



Forges



Round



mm



Φ85

Square



mm



65



Motor



Power



kw



7.5



Rotate speed



rpm



1440









Outside Size



Length



mm



1500



Width



mm



720



High



mm



2050



Hammer weight



kg



~2400
