China high precision T8016 cylinder boring machine

Supplier: SJR Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Selina Ren
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	380V;	Certification:	CE;ISO;
Brand Name:	SMAC;	Place of Origin:	Jiangsu China;
Dimension(LWH):	620420960mm;	Power(W):	0.55kw;
name:	china cylinder boring machine T8016;	Payment Terms:	L/C,D/A,D/P,T/T;
After-sales Service Provided:	Online support;	Condition:	New;
Packaging Detail:	wooden case;	Weight:	110;
Port:	shanghai;	Warranty:	1 Year;
Supply Ability:	32 Set/Sets per Month cylinder boring machine;	CNC or Not:	Normal;

Product Description

China high precision T8016 cylinder boring machine

The cylinder boring machine is used for boring cylinder holes of internal combustion engine,and inner holes of cylinder sleeve of cars or tractors,and also for other machine element hole.It has high cost performance.

Date

china cylinder boring machine T8016

Main Specifications		T8018C	T8018B(T8018A)	T8016	T8014A	T808A	T807	T806A	T806
Processing Diameter	mm	42-180	30-180	80-160	65-140	50-85	39-70	45-80	39-60
Max boring depth	mm	650	450	300	300	170	160	170	160
Spindle Speed	rpm	175,230,300,350,460,600(140-610)	175,230,300,350,460,600(140-610)	240,350	250,380	394	480	486	486
Spindle Feed	mm/r	0.05,0.10,0.20	0.05,0.10,0.20	0.1	0.11	0.1	0.09	0.09	0.09
Power	Kw	3.75	3.75	0.55	0.25/0.37	0.25	0.55	0.25	0.25
Overall Size	cm	260150232	200123192	402690	323085	352772	5048115	3340108	3340108
Packing Size	cm	157191257	140140225	624296			6070140
N.W/G.W	Kg	3500	2000	110	62	48+25	108	85

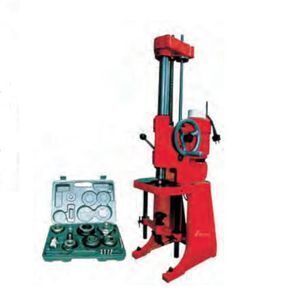

product show

china cylinder boring machine T8016

packing show
