Fully automated high payload Intelligent Warehouse Logistics AGV Robot for stacking

Supplier: Danbach Robot Jiangxi Inc.
Region: Jiangxi, China
Contact: Ms. Melissa Zheng
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Qingdao,Tianjin or as you required;	Moving Direction:	omni way;
After-sales Service Provided:	Field installation, commissioning and training;	Product Name:	Warehouse Logistics AGV Robot;
Power System:	Electrical;	Packaging Detail:	Warehouse Logistics AGV Robot packed in wooden cases;
Guidance Precision:	±10mm;	Brand Name:	DANBACH;
Place of Origin:	Jiangxi China (Mainland);	Guidance Type:	Laser or Magnetic Tape;
Communication:	Wireless LAN;	Charging:	Automatic or Manual;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	30 Set/Sets per Month Warehouse Logistics AGV Robot;
Nonstop Working Time:	More than 8 hours;	Application:	Intelligent Warehousing,Material Stacking;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Warranty:	1 Year;

Fully automated high payload Intelligent Warehouse Logistics AGV Robot for stacking

Product Description

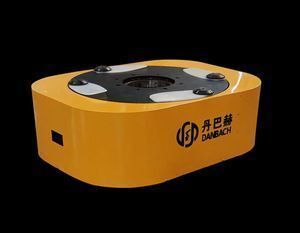

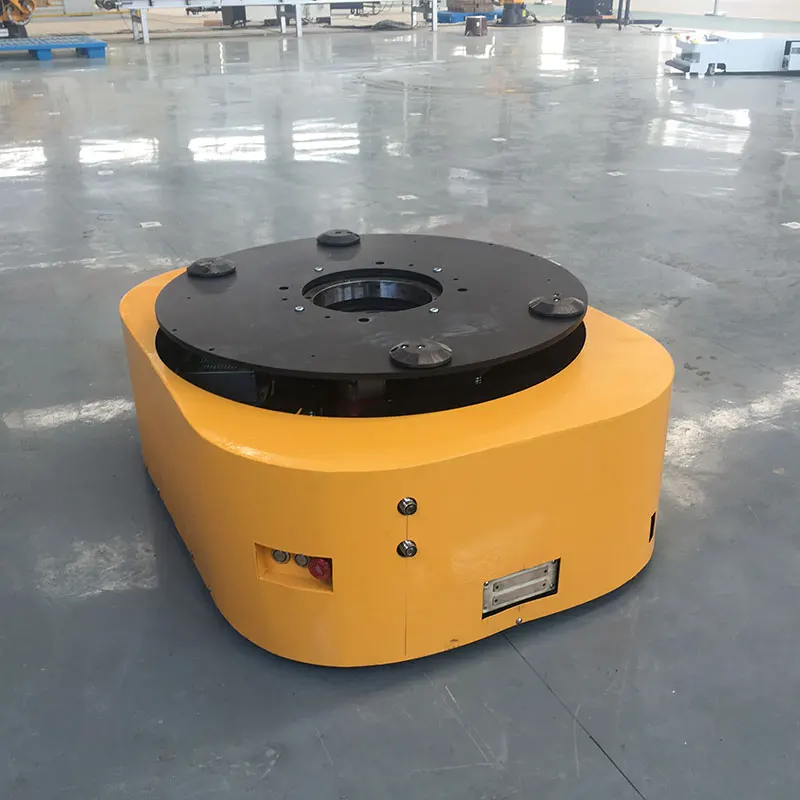

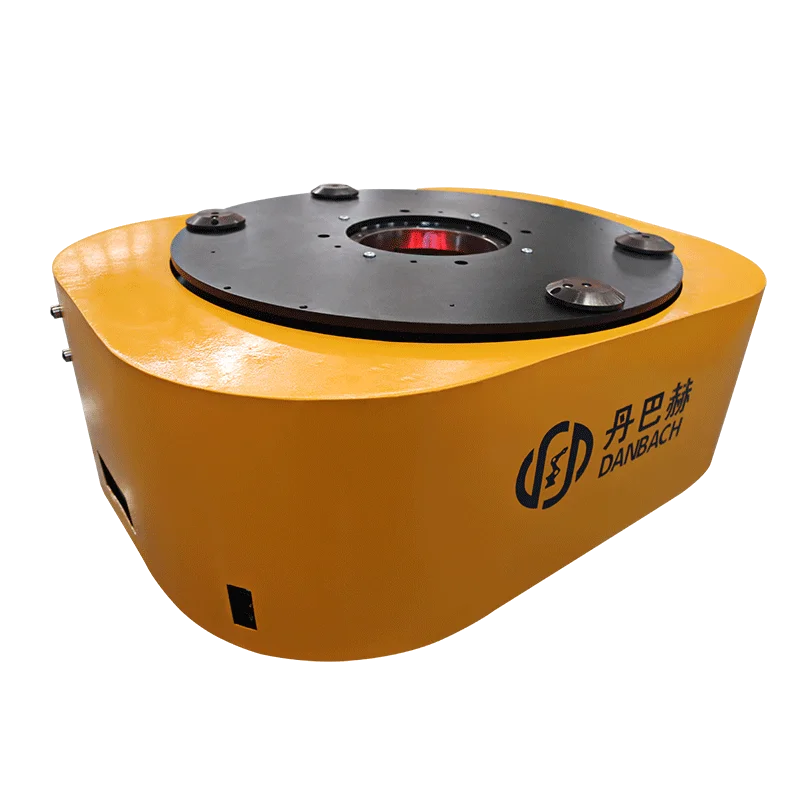

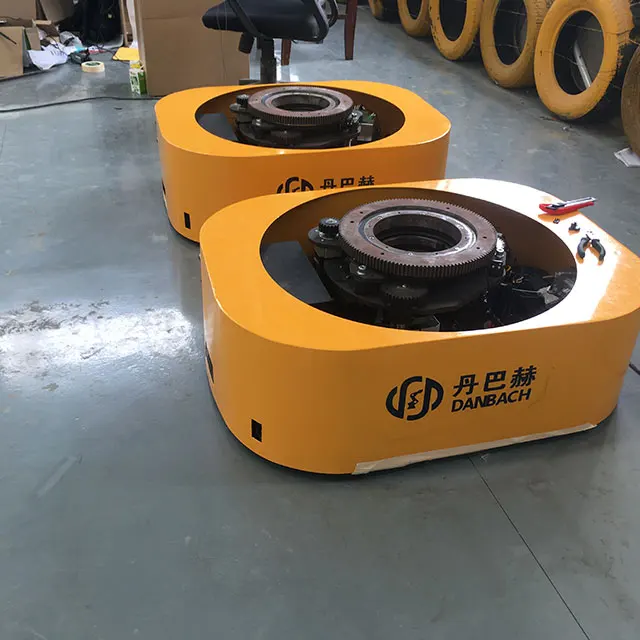

Danbach Warehouse Logistics AGV Robot Introduction

DBH high payload Warehouse Logistics AGV Robot is a kind of AGV control solution on basis of laser guide. It can meet all kinds of working conditions. It is easy to operate, the configuration is flexible, and the function extension is very simple.

DBH intelligent warehouse agv forklift is mainly applied in the field of automotive, warehousing or logistics, papermaking, stereoscopic warehouse. It helps to achieve automated logistics transportation, reduce labor cost and improve the production efficiency.

Danbach Warehouse Logistics AGV Robot can solve the following cases:

1. Palletizing or unloading material;

2. The guidance line needs to be frequently changed;

3. The working condition is harsh, the magnetic field is strong, and the positioning precision needs to be high.

4. The material carrying method is various.

5. It needs big carrying capacity.

Danbach Warehouse Logistics AGV Robot Parameter

AGV Body Weight	150KG
Carrying Capacity	500KG
Dimension	912712320mm
Max. Moving Speed	1m/s
Guidance Type	Visual Two-dimension
Obstacle Avoidance Method	Laser Radar
Communication Method	WIFI
Control/Stop Precision	<10mm
Step/Clearance	<10mm
Lifting Height	≥52mm
Lifting Time	≤4s
Battery Volume	40AH
Continuous Working Time	8 Hours ( Full Load) It can meet running demand around the clock.
Charging Mode	Automatic Charging
Charging Time	≤1.5 Hours(fully discharged)
Condition Indicator Light	Front or Rear Panel
Emergency Switch	Front or Rear Panel
Quick Operation Button	Front or Rear Panel

Benefits of Danbach Warehouse Logistics AGV Robot

DBH logistic automation AGV has accurate positioning. It does not need other positioning device on the floor. The moving path is flexible, and it can adjust to various kinds of onsite conditions. The end user can revise the moving path at any time via software. It is much easier without magnetic tape or landmark maintenance. It is the most advanced guidance type. It can carry empty pallet, load pallet, paper roll, etc.
