Artificial Lift Coiled Tubing Anchor 6 5/8"* 3 1/2"

Supplier: Weifang Baofeng Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Monica Nie
Price: $580.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	T/T,Western Union;	Product name:	Torque anchor;
Model Number:	6 5/8"* 3 1/2";	Packaging Detail:	plywood box;
Thread type:	3 1/2" EUE;	Type:	Torque anchor;
Port:	Qingdao,Ningbo,Shanghai,Guangzhou,Tianjin;	Supply Ability:	300 Piece/Pieces per Month;

Product Description

Oilfield Downhole Tool Tubing Anchor

The Type of tubing anchor catcher acts as a tubing anchor to maintain tension in the tubing string
and as a tubing catcher to prevent parted pipe from falling to the bottom of the well.

Tubing anchor catcher is run below a sucker-rod pump to anchor the lower end of the tubing string. Then the string can be landed in tension, reducing the tubing tendency to corkscrew from cyclical loading during pump operation.

Running & Setting of Tubing Anchor

1.Install the anchor in the tubing string, above or below the pump. Rotate the tubing to the left to set the anchor catcher

2. With tubing in slight compression, rotate the tubing to the right to retract the cones from the slips and allow the slips to move back into the housing.

Oil Downhole Tool Tubing Anchor for PC Pump Technical Parameter

Casing OD	Casing Weight	Setting Range		Tool OD	Threads Upper Box Lower Pin
Casing OD	Casing Weight	Min.ID	Max.ID	Tool OD	Threads Upper Box Lower Pin
5 1/2"	13.0-23.0	4.670	5.044	4.50	2 7/8 EUE
6 5/8"	17.0-32.0	5.675	6.135	5.50	2 7/8 EUE
7"	17.0-32.0	6.094	6.538	5.854	3 1/2 EUE
9 5/8"	32.3-47.0	8.681	9.001	8.000	3 1/2 EUE

Feature:

• Rotate left to set, right to release

• Straight pull emergency shear release

• Increases pump efficiency

• Improves operating costs by reducing maintenance and down time caused by tubing or sucker rod wear

• Parts interchangeable with other manufacturers

Custom sized and configurations also available

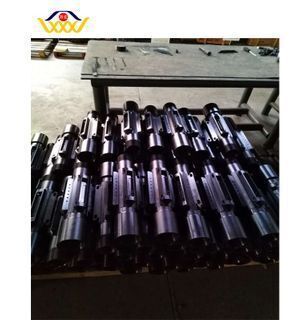

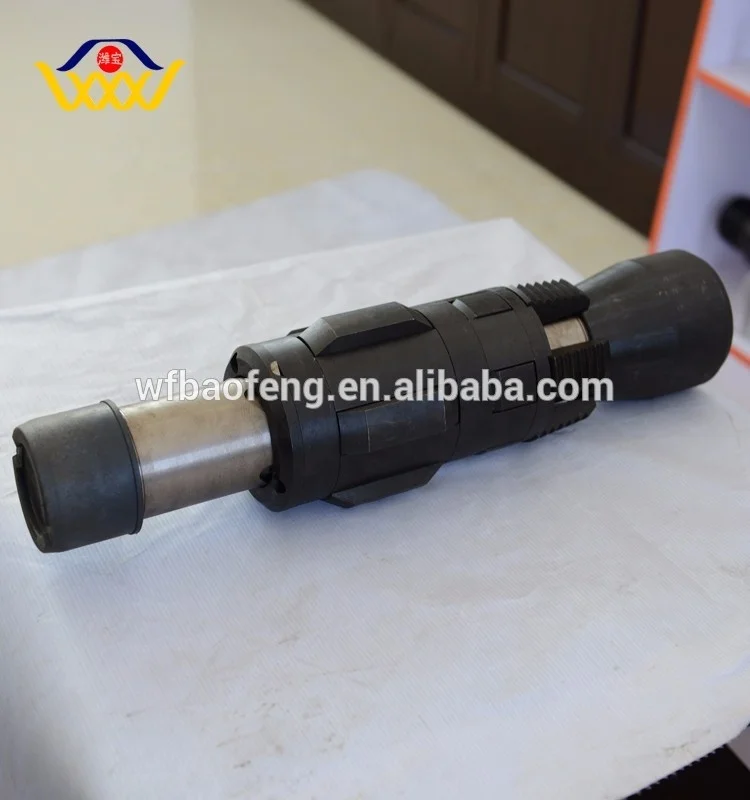

Detailed Images
