High Efficiency Stainless Steel High Speed Emulsifying Machine

Supplier: Wenzhou Vince Machinery Science Co.,ltd
Region: Zhejiang, China
Contact: Ms Christie Zhang
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Processing:	Emulsifier;	Port:	Shanghai port/ Ningbo port;
Supply Ability:	50 Unit/Units per Month;	Power(W):	0.75-5KW;
Certification:	ISO9001;	Packaging Detail:	Easy-packing/wooden case packing;
Condition:	New;	Warranty:	1year;
Weight:	Based on actual volumn;	Dimension(LWH):	Based on actual volumn;
Processing Types:	Dairy Product;	Voltage:	380V/50HZ,3P/customized;
Payment Terms:	L/C,T/T,30% TT deposit, balance before shipping;	Material:	stainless steel304/316;
After-sales Service Provided:	Overseas third-party support available;	Place of Origin:	Zhejiang China;
Delivery Detail:	15-35days;	Brand Name:	VINCE;

High Efficiency Stainless Steel High Speed Emulsifying Machine

Product Description

Specifications

Emulsification tank(emulsification vessel,stainless steel emulsification tank),

Material: Stainless steel,

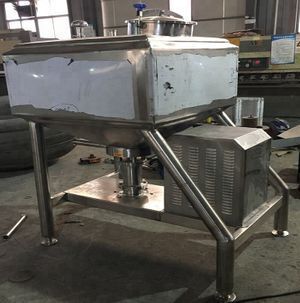

Square High Shear Emulsifying Tank

This square high shear emulsifying tank is to blend the materials efficiently under mixing, pressing and shearing force caused by the high-speed rotation of the impeller in the bottom, which is especially applicable for the mixture of sugar, starch, milk powder, egg powder products with the emulsifying agent, stabilizing agent and thickening agent which are usually used in the mixing flow of formula milk powder, acidophilus milk, various drinks, ice cream, egg roll and waffles. We have adopted R-arc transition regarding the structural design to guarantee there is no dead corner to influence the sanitation; Furthermore, the technical innovation has been carried out on the sealing structure for the mixing at the bottom to prolong the service life of the mechanic seal and bearing to the largest extent, and it has also saved the service cost for the clients.

Volume (L)	Length (Inner tank) (mm)	Width (Inner tank) (mm)	Height (Inner tank) (mm)	General height (mm)	Insulation layer (mm)	Motor powder (kw)	Speed (r/min)
400	900	900	550	1700	50	7.5	1460
600	1000	1000	650	1850	50	11	1460
800	1050	1050	750	1950	50	15	1460
1000	1150	1150	750	2000	50	15	1460
1500	1250	1250	1000	2300	50	18.5	1460
