Dimensions (L*W*H): | customizable | strength: | 36KW |
Supply capacity: | 20 sets per month | Warranty: | 1 year |
Product Category: | stationary | port: | Whampoa Port |
Core components: | Motors, pressure vessels | control: | programmable logic controller |
Function: | Mixing and Homogenizing | usage: | chemical industry |
Applicable industries: | Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Food Stores, Food and Beverage Stores | Packaging Details: | plywood |
pack: | wooden box | After-sales service provided: | Provide overseas service center |
Health status: | new | Material: | 316 stainless steel |
product name: | Homogenizer | motor: | Siemens |
thing: | Emulsifying homogenizer | Marketing Type: | Hot Products of 2021 |
Processing Type: | juice | Core Components Warranty: | 1 year |
Voltage: | 220 | payment terms: | L/C,Western Union,T/T |
place of origin; place of origin: | Guangdong, China | Showroom location: | France, Vietnam, Nigeria |
Video external inspection: | if | Processing: | Emulsifier |
Mechanical test report: | if | brand: | PMK |
weight: | 900kg | | |
attention:
1. All prices and parameters shown above are standardized. If you want specific information, please click "Contact Supplier" to send us an email.
2. Due to the time difference, we suggest that you can choose to send us an inquiry instead of chatting online
3. When sending us an inquiry or a message, please tell us your email or WhatsApp/WeChat, etc., so that our sales manager can get in touch with us quickly.
Product display

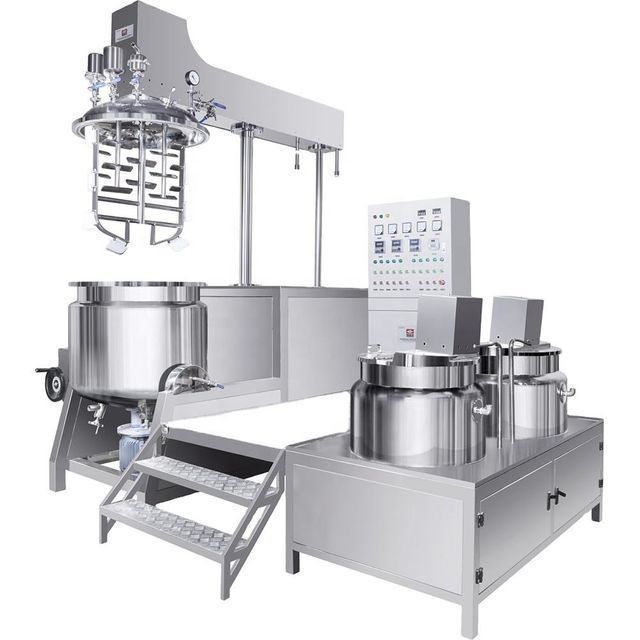

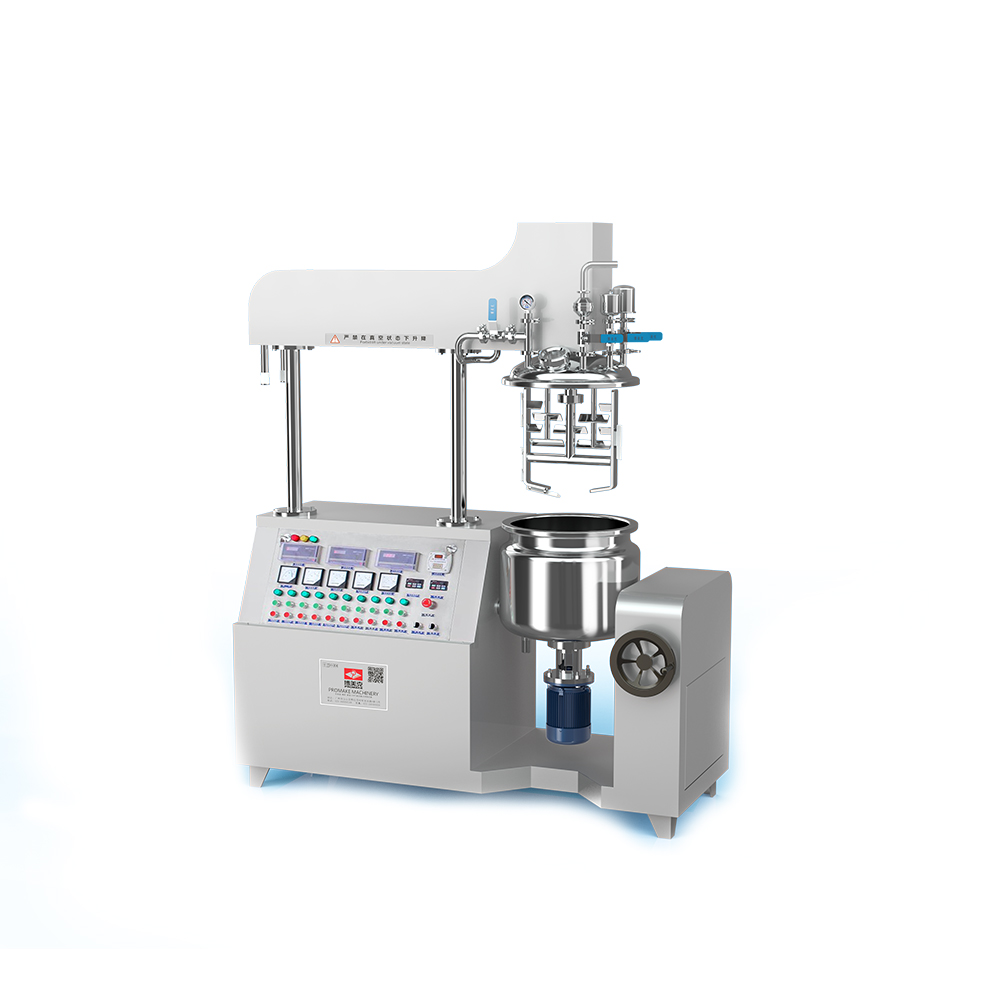

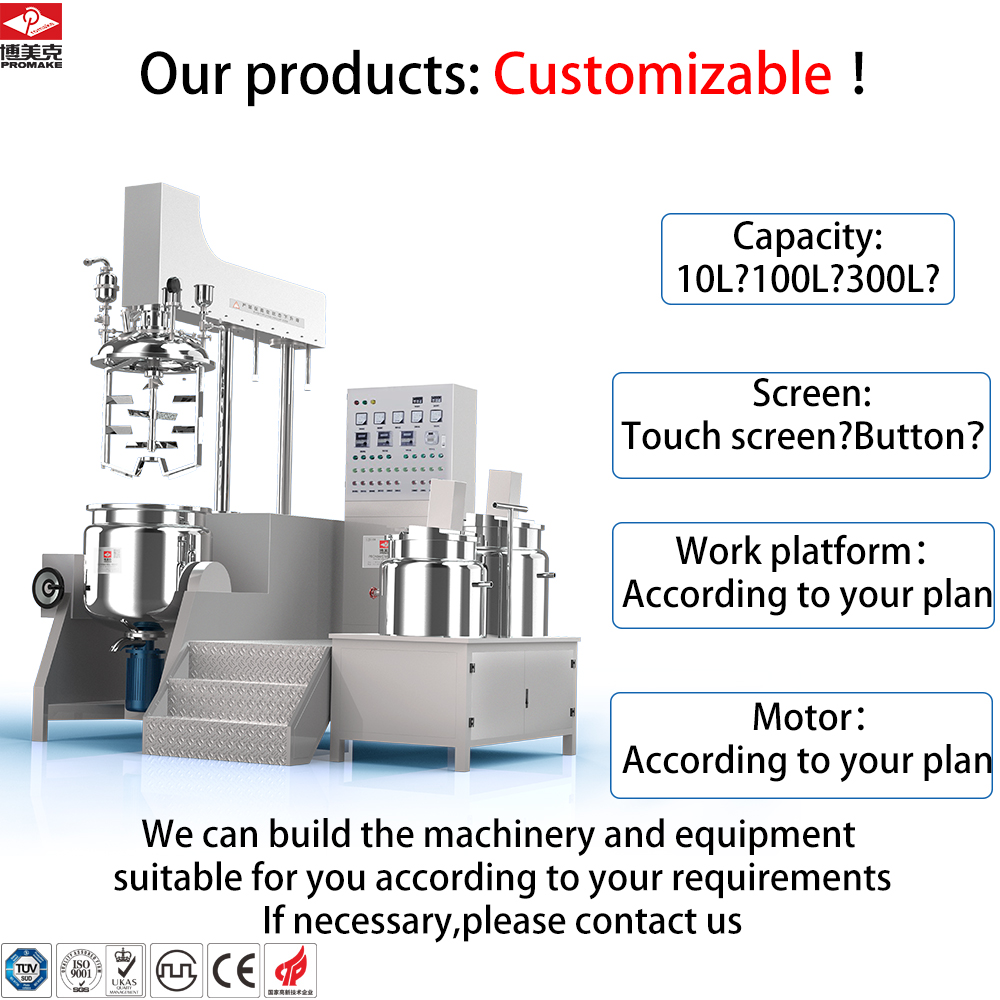

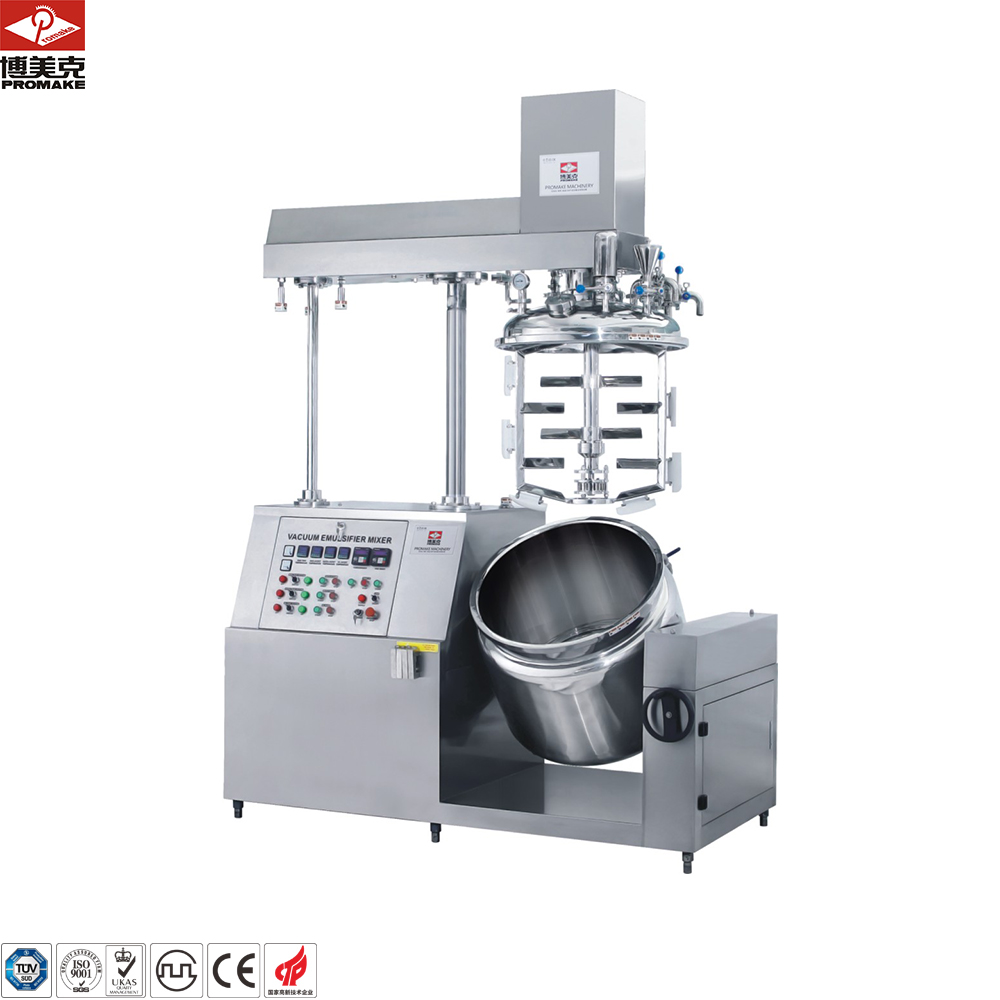

PMK-100L-2000L vacuum emulsifier can be customized
Product Description
The vacuum homogenizing emulsification mixer is professionally designed according to the manufacturing process of cosmetics, creams and other ointments. The equipment consists of vacuum stirring pot, water pot, oil pot, vacuum pump, hydraulic system, dumping system, electric control system, working platform, etc. The equipment is controlled by PLC touch screen, and its advantages include: easy operation, stable performance, remarkable homogenization effect, high production efficiency, convenient cleaning, reasonable design, placement according to local conditions, and high degree of automation.
Applicable product range

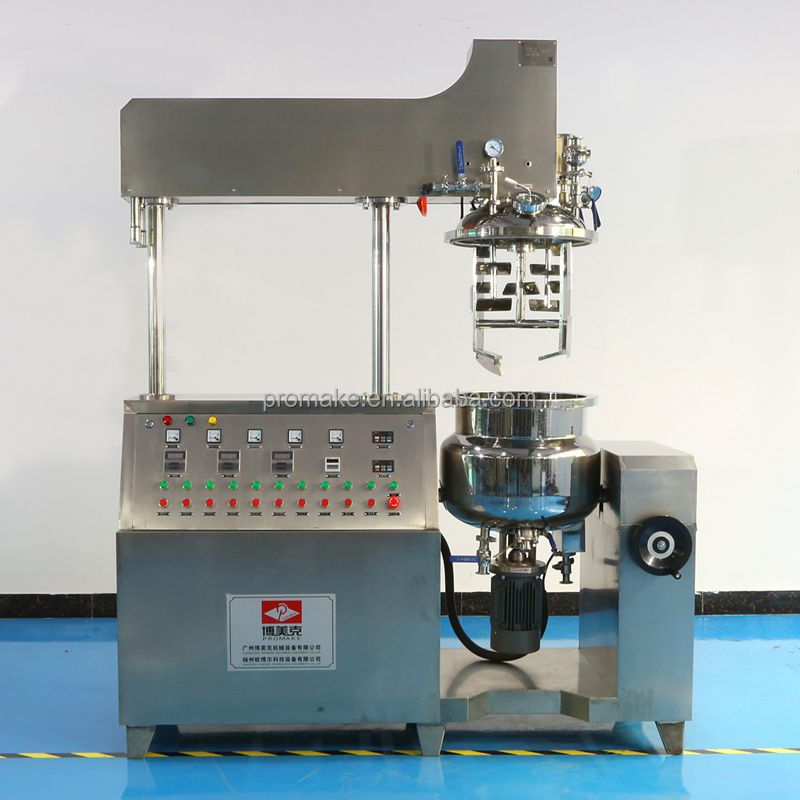

Equipment details display

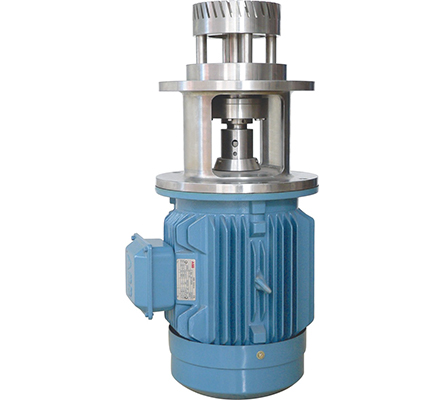

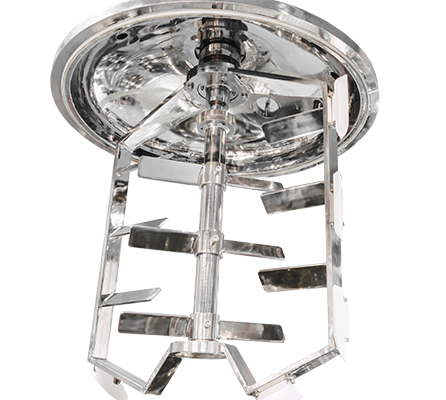

propeller blade
Our company's emulsification equipment usually has one-way mixing, two-way mixing, internal and external circulation mixing
45 degree inclined blades ensure material rolling and stirring effect

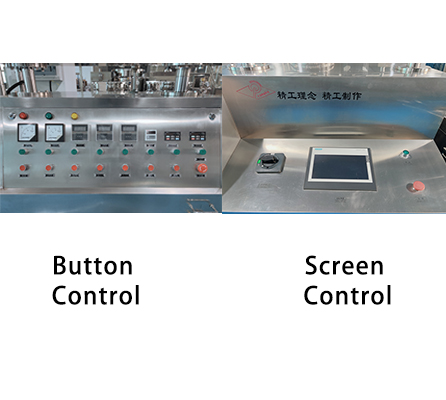

control center
The control center can be divided into touch screen or button control, you can choose the console that suits you according to your customization

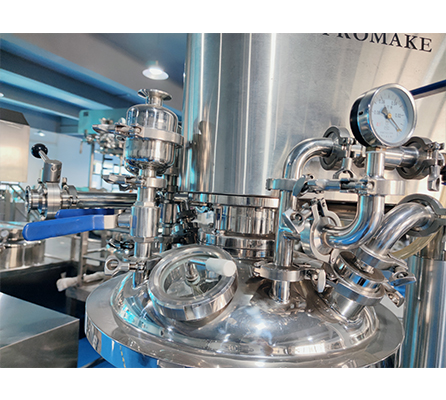

Top Structure of Emulsifiers
1. Vacuum defoaming makes the material meet the sterile requirements. Use a vacuum cleaner, especially for powdery materials, to avoid dust with a vacuum cleaner. 2. The lid of the emulsification pot can adopt a lifting system, which is convenient for cleaning and has a more obvious cleaning effect. Emulsifying pot can pour water. 3. The pot body is welded by imported three-layer stainless steel plate. The tank body and pipeline are mirror-polished, fully complying with GMP requirements
Depending on your custom size and capacity, the motor power will also vary to better suit different
machines and create comfortable mechanical equipment.
parameter configuration
model | capacity (capacity) | | Homogenizer motor (homogenizer) PowerKW/R/Min | stirring motor (Stirring motor) PowerKW/R/Min
|
10L | 10 | 1350*510*1600/1850 | 0.55/0-3000 | 0.25/0-63 |
20L | 20 | 1450*610*1650/2000 | 1.50/0-3000 | 0.37/0-63 |
50L | 50 | 2550*2000*1900/2550 | 2.20/0-3000 | 0.75/0-63 |
100L | 100 | 2700*2100*2200/2900 | 4.00/0-3000 | 1.50/0-63 |
200L | 200 | 2900*2500*2400/3450 | 5.50/0-3000 | 2.20/0-63 |
300L | 300 | 3350*3100*2450/3500 | 5.50/0-3000 | 3.00/0-63 |
500L | 500 | 3600*3300*2850/3900 | 7.50/0-3000 | 4.00/0-63 |
1000L | 1000 | 4200*3650*3300/4800 | 11.00/0-3000 | 5.50/0-63 |
2000L | 2000 | 4850*4300*3800/5400 | 15.00/0-3000 | 7.50/0-63 |
Note: Due to technical improvement and customization, the data in this table are inconsistent; this table is for reference only, and everything is subject to the actual product. You can consult us for more information
Other products of the same production line
Customization experts near you
Start an inquiry to learn more about the product you need
Our OEM&ODM Capability

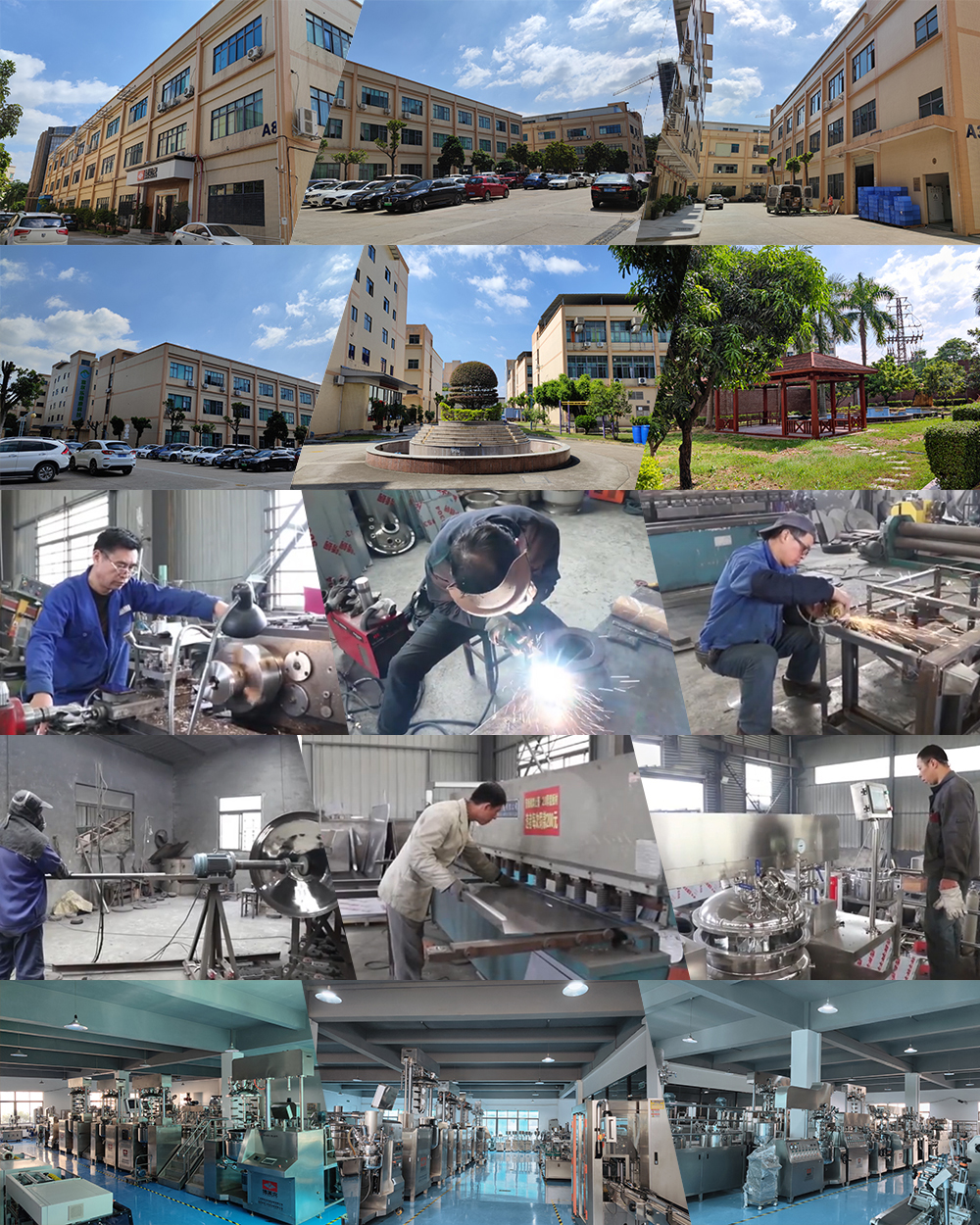

Promake Machinery Headquarters covers an area of more than 2,000 square meters and is located in a beautiful industrial area. It has its own warehouse, equipment exhibition hall, etc., and has many experienced masters.
Devices that Promake can manufacture:
1) Vacuum emulsifier
2) Washing liquid mixer
3) Water treatment equipment (RO system)

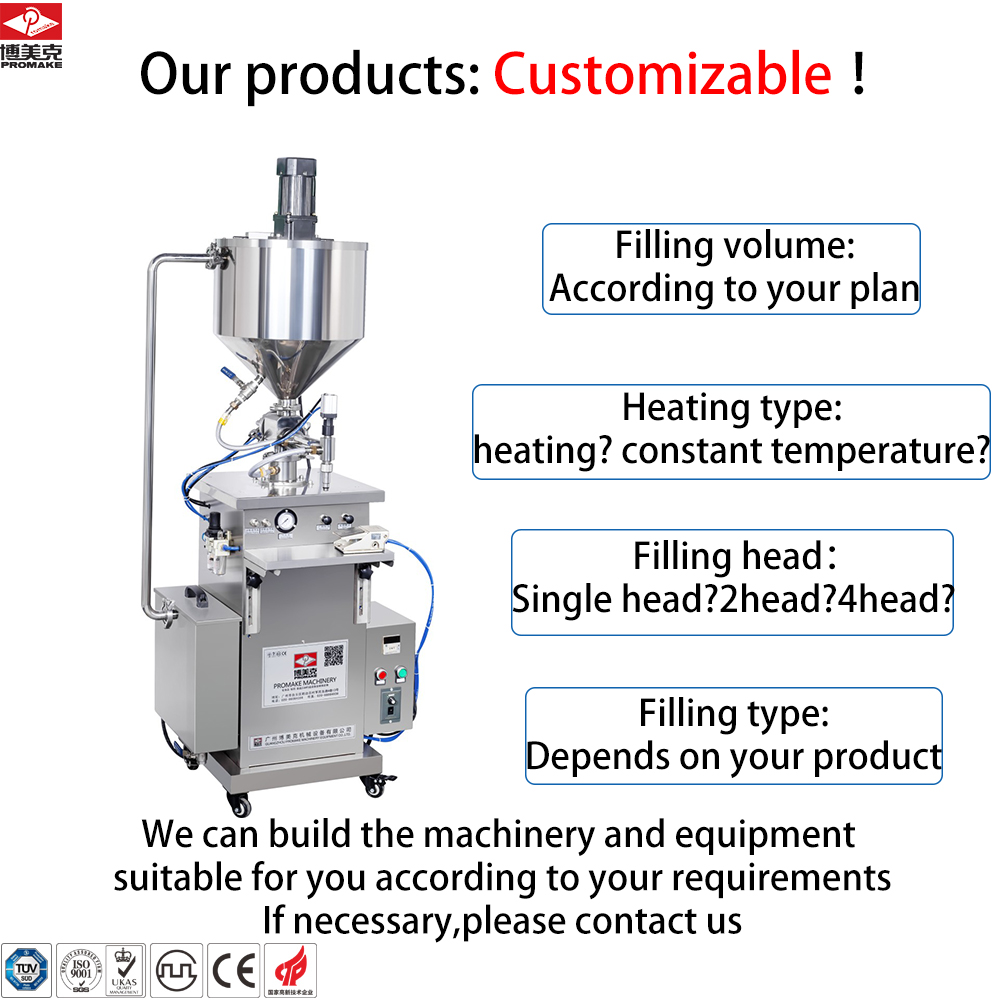

4) Filling machine

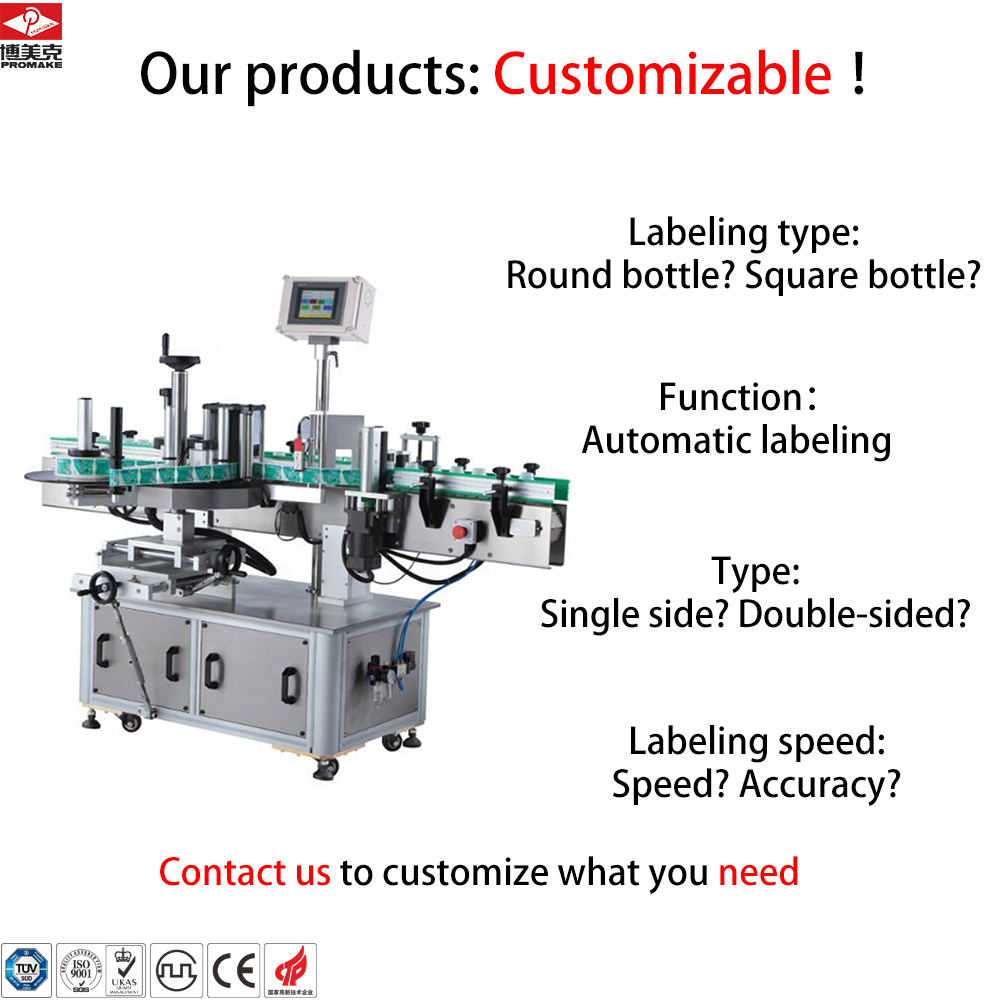

5) Labeling machine
6) Makeup and Beauty Machine
7) Perfume maker
8) Anti-corrosion equipment and inkjet printer

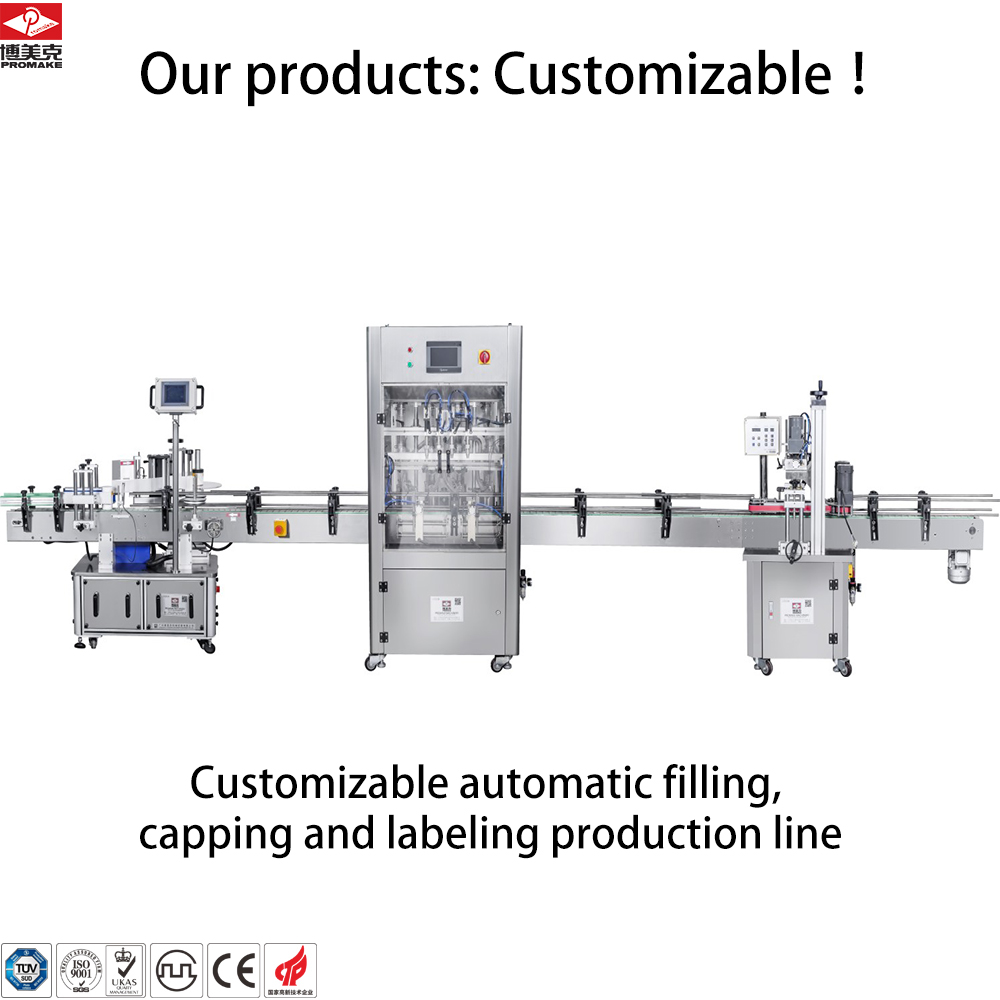

9) Liquid filling and capping machine

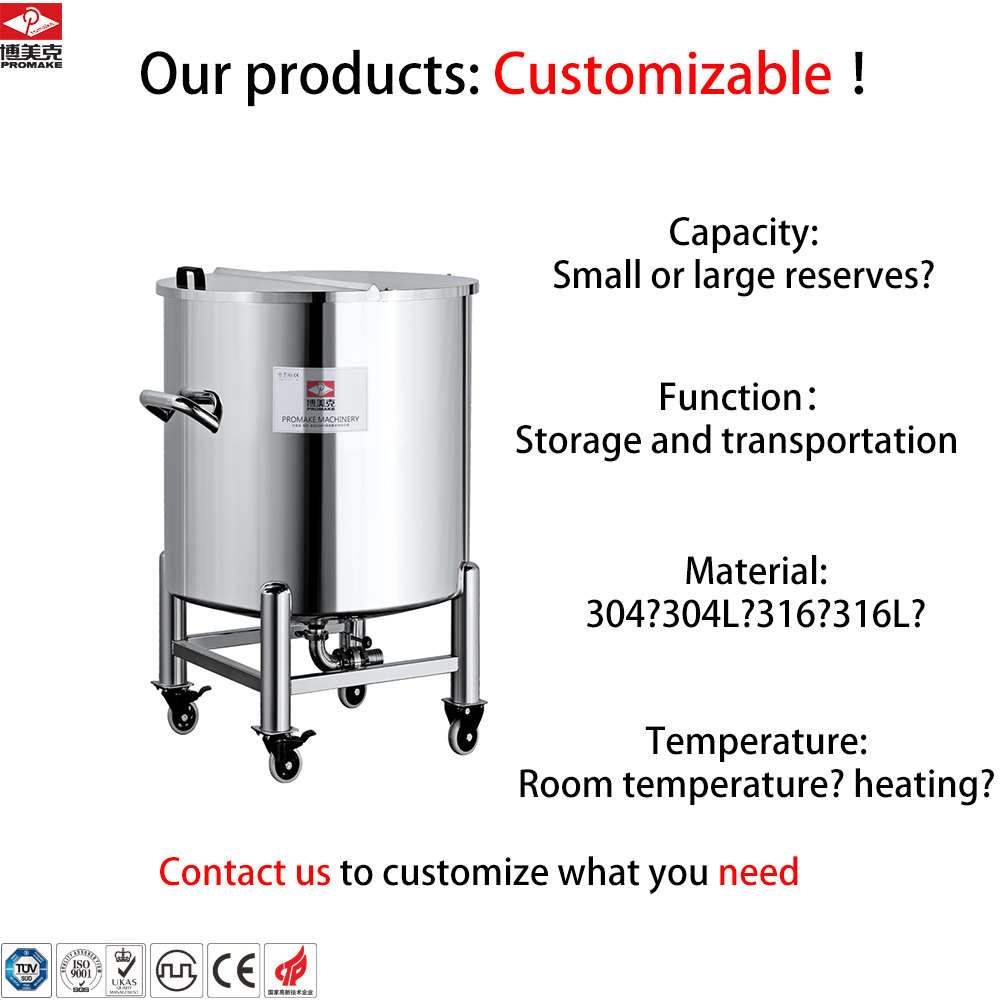

10) Storage tank
11) Laboratory equipment
12) Filtration equipment
our team
People-oriented core organization, cohesive team strength.
service area

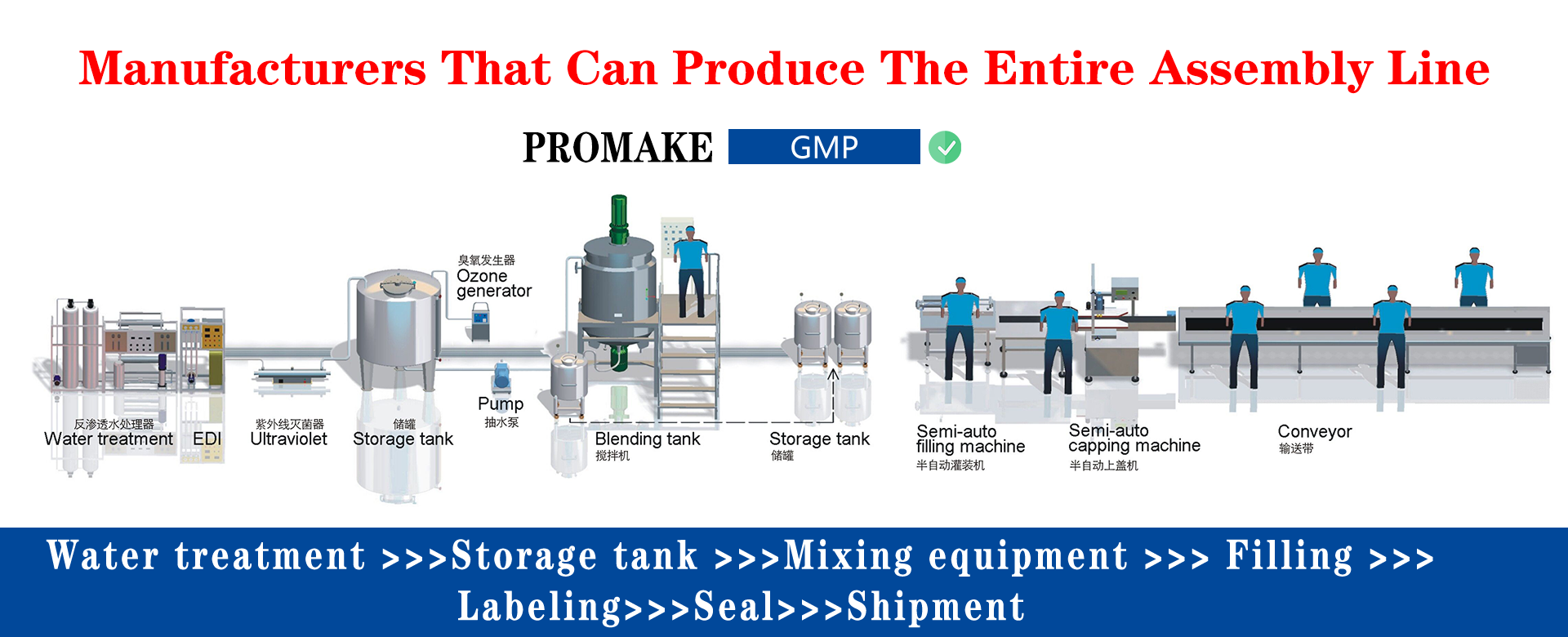

Semi-automatic machinery and equipment for paste production line, emulsion production line, perfume production line, lipstick production line, toothpaste production line, mist production line, powder cake production line, and soap production line.
