CD-2000II Full automatic baby wet wipes machine,wet tissue machine

Product details
Packaging Detail:by exporting standard protective measures. Such packing shall be suitable for long distance ocean and /or air, and inland transportation and well protected against dampness, moisture, shock, rust and rough handling so as to ensure that the goods will safely arrive at the erection or construction site without any damage.;Unwinder:40 lines or 80 lines;
Port:XIAMEN PORT,CHINA;Voltage:380V 50HZ;
Condition:New;wet wipe machine:High speed wet tissue machine;
Dimension(L*W*H):54700*2900*2000mm;Certification:CE;
Suitable material:Spun-lace non-woven fabrics;Payment Terms:L/C,T/T,Western Union;
Power(W):45KW;Warranty:1 year;
After-sales Service Provided:Engineers available to service machinery overseas;Supply Ability:20 Set/Sets per Year;
Brand Name:Chuangda;Weight:22000KG;
Production speed:80 packages/min each package 80 pieces;Place of Origin:Fujian China;

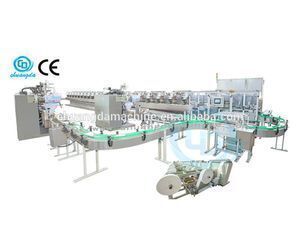

CD-2000II Full auto wet wipe machine is for 40 or 80 lanes raw material standers ,directly folding, wetting,

cut in size  the raw material, auto send the wipe to packing machine, the whole process from raw

material to final product is in one machine, production speed is high and sanitary. The cutting part

including two Germany big circular knifes,it can increase the cutting out put.



1.Main technical parameter



Motive factor



 45 KW

Power supply



380V, 60Hz,3ph



Suitable material



Spun-lace non-woven fabrics



Quality of material



30g/~100g/m2



Production size(unfolded)



 (150-220mm)*(180-220mm)(L*W)

Production size(folded)



(150-220mm)(80-120mm)(LΧ W)

Production speed



80 packages/min  each package 80 pieces



Total pieces

5000-7000 pieces/min

Raw material size



(180-220)* Diameter (800-1200)mm



Unwinder



40 lines and 80 lines





Bag size

 (180-300) Χ (90-120) Χ (30-90)mm

Folding  way

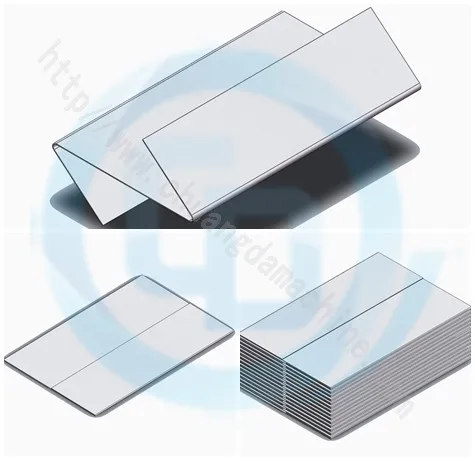

"Z"type(Pop up)





Designed Production speed

80 Packages/min

Production speed

 60 Packages/min

Counting way



Auto-counting



Humidification agitating system



Double agitating



Cutting system



Round knives system( Germany knives)



Packing machine

New Model

Water Tank

400 liter/one  Total two units

Punching hole

Flight hole, & without hole

Whole production line corner

180 degree



Wetting system



As the factory standard



 Machine size

54700Χ2900 Χ 2000mm

Weight of machine(kg)



About 22000KG







2.Working flow:



N folding →wetting→cutting→stacking→transfer to packing part→wrapping the wet wipes→middle

 sealing→horizontal sealing and cutting→output products





3. Pictures of our company

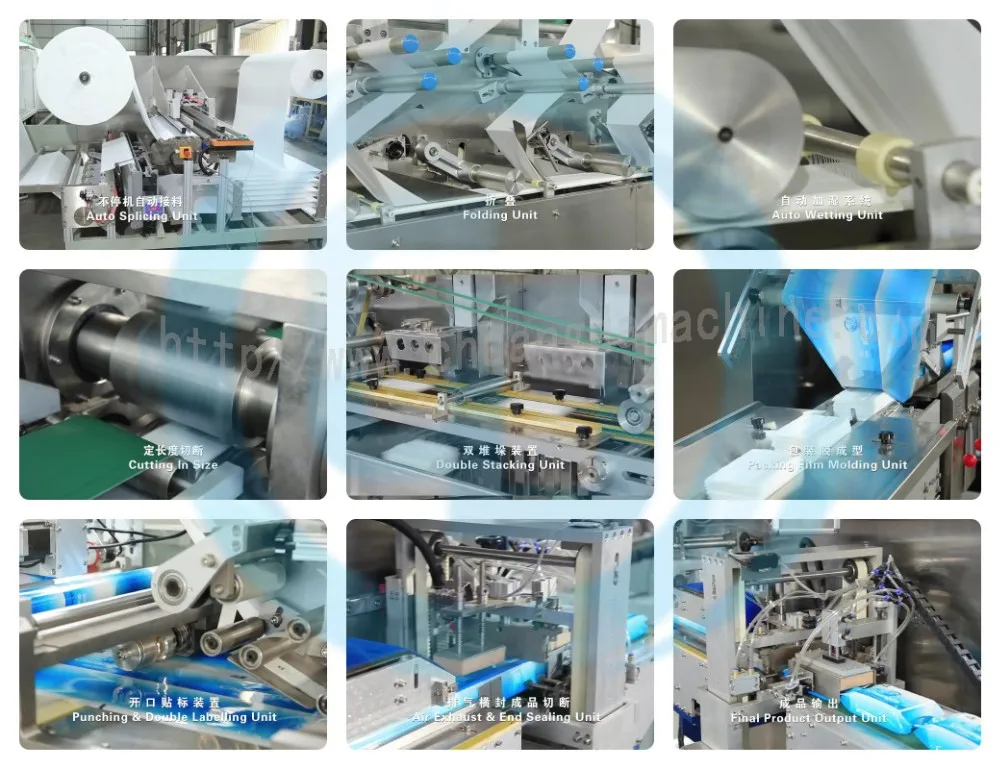

4.Pictures of machine part:

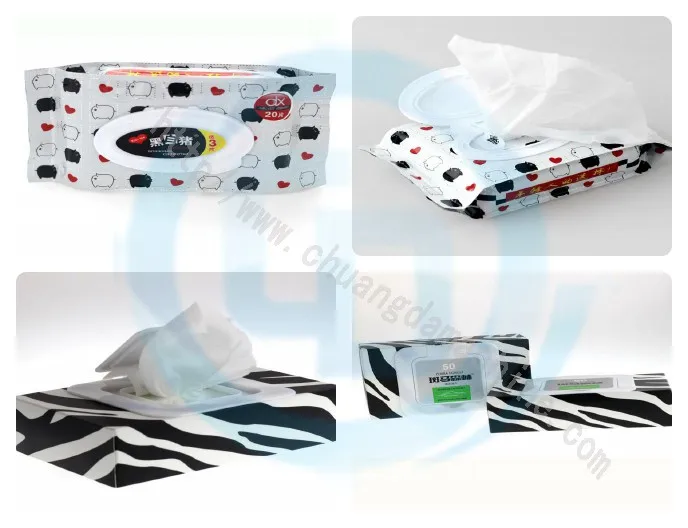

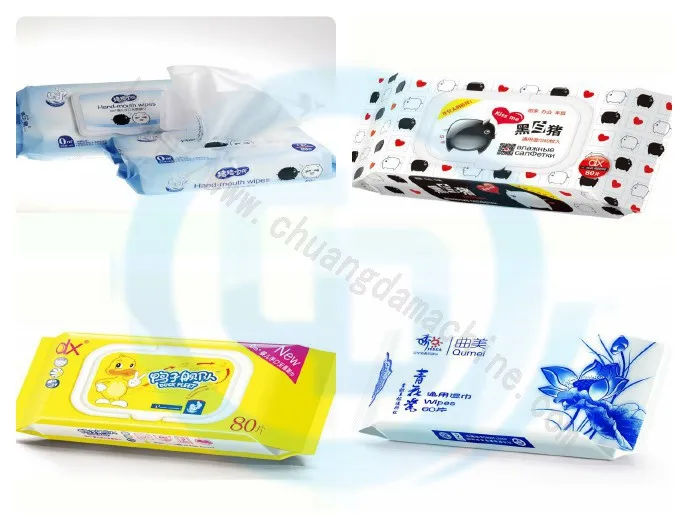

5.Pictures of final products:









Packaging & Shipping

By exporting standard protective measures. Such packing shall be suitable for long distance ocean and /or air, and inland transportation and well protected against dampness, moisture, shock, rust and rough handling so as to ensure that the goods will safely arrive at the erection or construction site without any damage.
