CD-2000H FULL AUTO 30~120PCS WET WIPE MAKING MACHINE LINE WET TISSUE PRODUCTION MACHINE

Supplier: Quanzhou Chuangda Machinery Manufacture Co., Ltd.
Region: Fujian, China
Contact: Ms Anne. Fu
Price: $150000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Chuangda;	COLOR:	Silver;
Product speed:	6000-6400PCS/MIN;	Style:	Fully Automatic;
splice of material:	automatic splice raw material;	Power(W):	40W;
Place of Origin:	Fujian China (Mainland);	Weight:	11000KG;
Voltage:	380V 50HZ;	Port:	xiamen;
Dimension(LWH):	1960035002200mm;	After Service:	Long Term Spare Part;
MOTOR:	Servo Motor;	Materials:	Spunlace Non Woven;
Supply Ability:	100 Set/Sets per Year;	Certification:	ISO9001 CE;
Packaging Detail:	by export standard protective measures and outside wooden case, suitable for long distance ocean and/or air, and inland transportation and well protected against dampness, moisture, shock, rust and rough handling so as to ensure machine of safe arrival at the erection or construction site without any damage;	Condition:	New;
Warranty:	1 Year;	Payment Terms:	L/C,T/T;
Wetting system:	Recycle System;	stacking system:	double stacking;
Type:	Baby Wet Wipes Production Line;	After-sales Service Provided:	Engineers available to service machinery overseas;

Product Description

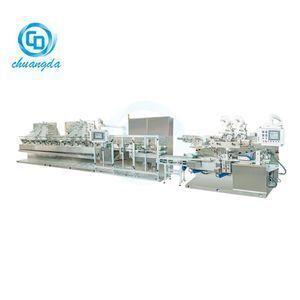

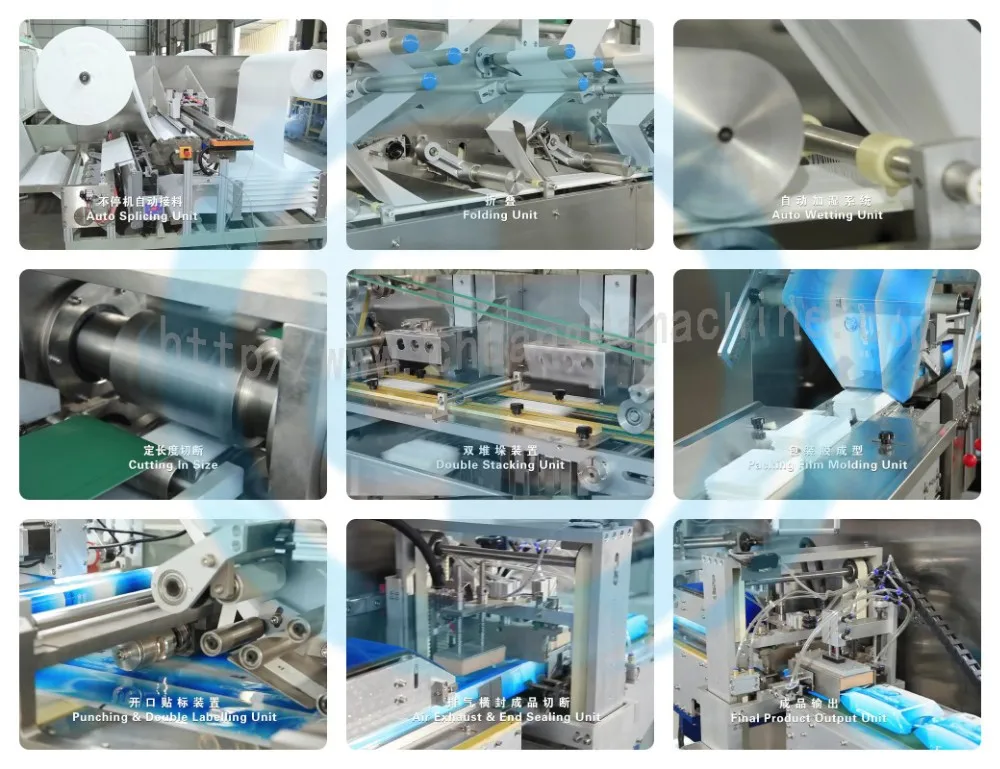

CD-2000H Full auto wet wipe machine is directly slitting the raw material, folding, wetting, cut in size, auto convey the wipe to packing machine. Raw material is equipped with auto splicing unit, and with tension control and web guiding function. The whole process from raw material to final product is in machine, production is sanitary and speed is high. The folding machine and packing machine can automatically connect for production and also can be separated for special size of product, which makes customer use the machine in maximum limit and get the maximum profit.

Main technical parameter(suitable for 30-120pcs/pack):

1.Power supply: 380V 50Hz 3 Phase 220V(customized as per client request)

2.Power:40KW

3.Suitable material: Spunlace non-woven fabric, Hot-rolling non-woven fabric

4.Quality of material: 35---80g/m2

5.Wet wipe size (unfolded): (150-230mm)*(180-250mm) (L*W)

6.Wet wipe size (folded): (150-230mm)*(90-120mm) (L*W)

7.Final Product Size: (200-280mm)*(90-120mm)*(30-100) (L*W*H)

8.Stable Production speed: 4800-6400 pcs/min

9.Packing Speed: 60-80 packs/min

10.Parent roll size (raw material reel): width:1000mm, dia: 800—1200mm

11.Folding way:”Z” fold, pop up or non pop up

12.Counting way: auto-counting, quantity changeable pile system

13. Independent pressing and sending system after folding, good stability

14.Humidification agitating system: double agitating drums with agitator, 400L*2 ( Quantitative liquid adding system)

15.Control system: PLC control system, color touch screen

16.Machine size: 19600*3500*2200mm (L*W*H)

17.Water tank size: 2000*1100*1900mm (L*W*H)

18.Net weight of machine: 12000kg

Adjustable bag-making device, inserting corner device(adjustable corner balance), high precise color indicator, electric eye tracking, roll type date printing device, punching device, labeling device.

Optional:1. With 180 degree U corner or parallel display.

2. Glue spray between two piles with glue machine.

3. Tear-prevent labeling device.

Packaging & Shipping

by export standard protective measures and outside wooden case, suitable for long distance ocean and/or air, and inland transportation and well protected against dampness, moisture, shock, rust and rough handling so as to ensure machine of safe arrival at the erection or construction site without any damage.
