CD-2008 I Full Auto 5-30 pcs/pack Wet Wipes Making Machine Tissue Wipe Machine

Supplier: Quanzhou Chuangda Machinery Manufacture Co., Ltd.
Region: Fujian, China
Contact: Ms Anne. Fu
Price: $90000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	by exporting standard protective measures. Such packing shall be suitable for long distance ocean and /or air, and inland transportation and well protected against dampness, moisture, shock, rust and rough handling so as to ensure that the goods will safely arrive at the erection or construction site without any damage.;	Place of Origin:	Fujian China;
Main Form of Machine:	STAINLESS STEEL 316 OR 304;	Speed:	10-60 pack /MIN;
Delivery Detail:	60 day;	Weight:	4800KG;
Wet Tissue Machine:	Wet Wipe Machine;	Finished Product:	5-30 PCS/ PACKAGE;
Warranty:	1 year;	Supply Ability:	100 Set/Sets per Year;
Motor:	SERVO;	Port:	xiamen;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Voltage:	380V 50HZ;
After-sales Service Provided:	Engineers available to service machinery overseas;	Dimension(LWH):	790011002200;
Brand Name:	Chuangda;	Certification:	CE,CE;
Model Number:	CD-2008 I;	Electrical Brand:	Electrical Brand;
Working System:	FULL AUTOMATIC PRODUCE LINE;	Condition:	New;
Power:	17KW;

Product Description

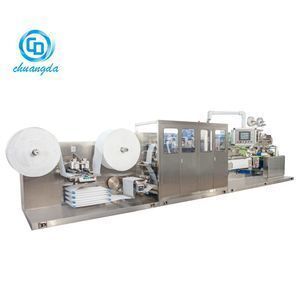

CD-2008I Full Auto Wet Wipes Machine

The operation of CD2008I Full automatic wet wipe machine is easy and function is very steady.

The part touching with the liquid is made by 304 stainless steel, the machine with beautiful outline.

It is controlled by PLC.Work flow: unrolling raw material → folding → wetting →

cutting in size → pile and counting wipe → transfer wipe to packing → output finished

products. All the processes are finished on the machine. Production speed is high and

sanitary.

Main technical parameter

Suitable material: Spunlace non-woven fabric, Hot-rolling non-woven fabric

Electrical source: 380V 50HZ

Total power: 17 KW (folding unit:6 KW, packing unit: 11KW )

Special configuration: Stainless steel machine crust

Material: 40gsm-80gsm

Production size (unfolded):(160-220mm)*(160-220mm)(L*W)

Production size (folded):(80-110mm)*(65-75mm)(L*W)

Finished products of packing size: (140-180mm)*(70-90mm) *(10-30mm) (L*W*H)

Production speed: 200-300pcs/min

Folding type: “Z” fold and double “Z” fold

Counting system: Automatic stack unit

Design speed of Packing speed: 60 packs/min

Packing speed: 40-60 package/5 pieces/min,20-30 package/10 pieces/min

One Package size: (140~180)×(70~90)×(10~30) mm (L×W×H)Another function:Punching unit, Labeling unit, Roll type Date printing unit

Control system:PLC control system, Color touching screen

Machine size: 7900×1100×2200 mm ( L×W×H)Water tank size: 1000×1000×1900 mm ( L×W×H)

Weight of machine: 4800 kg

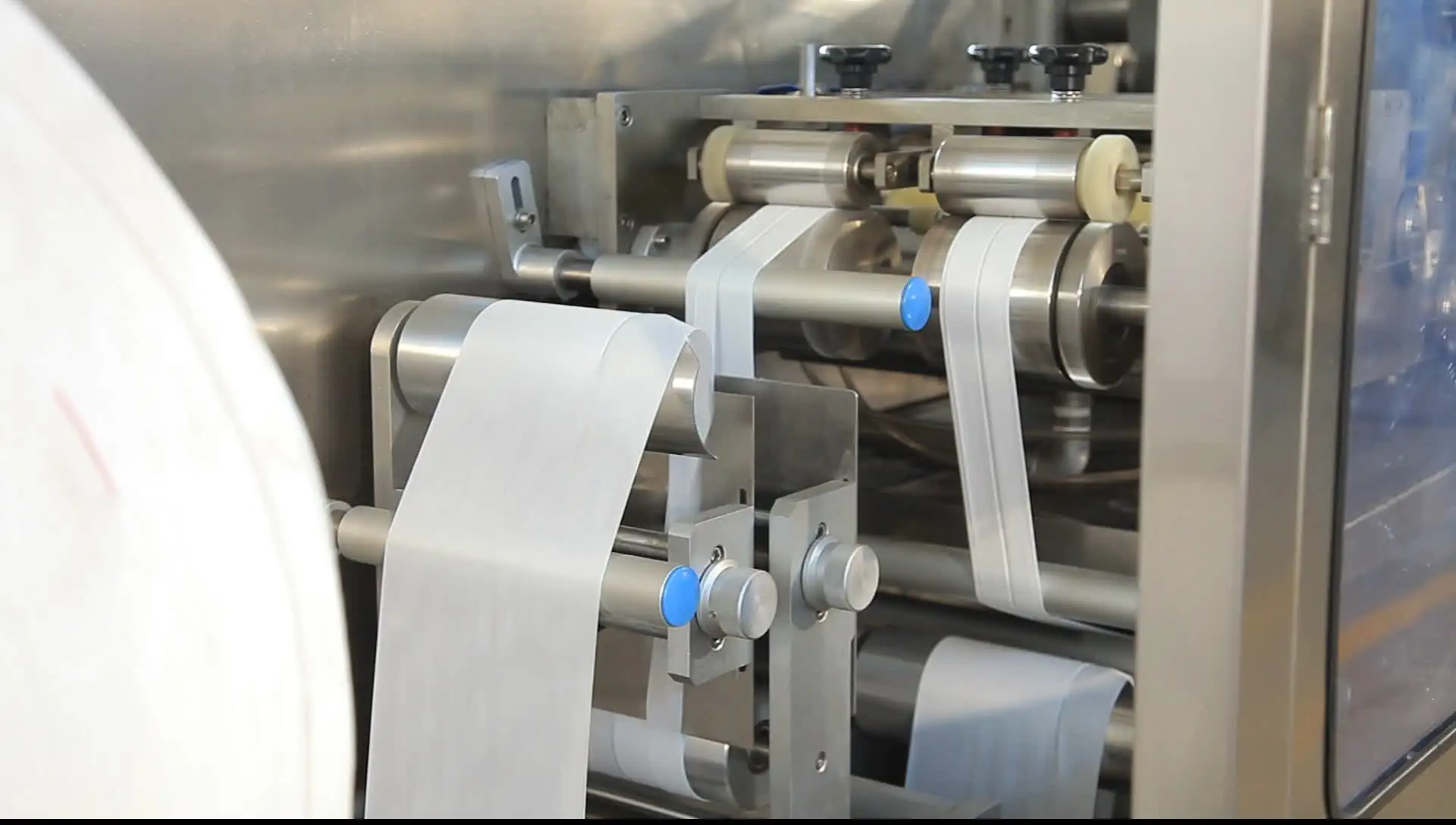

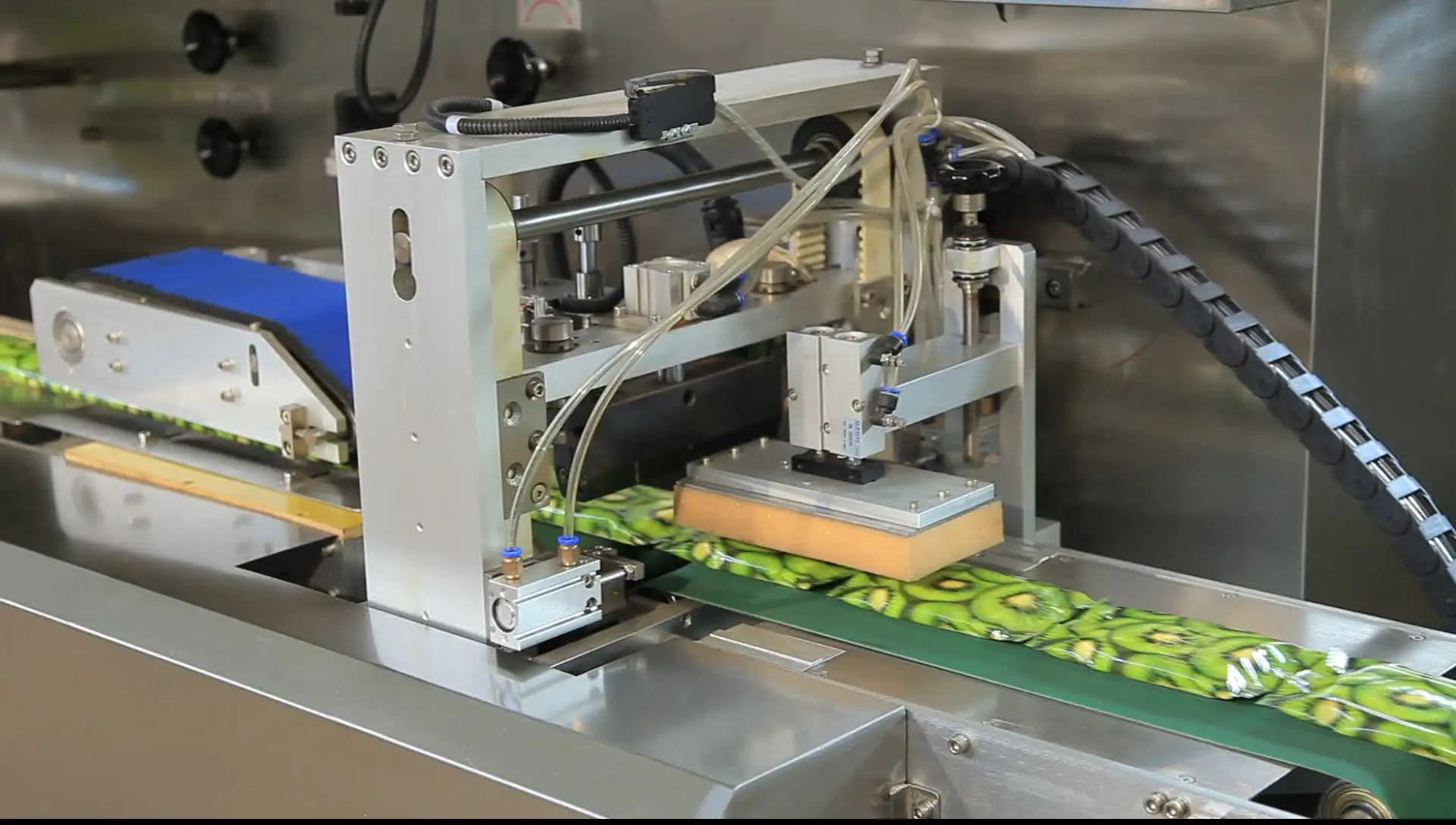

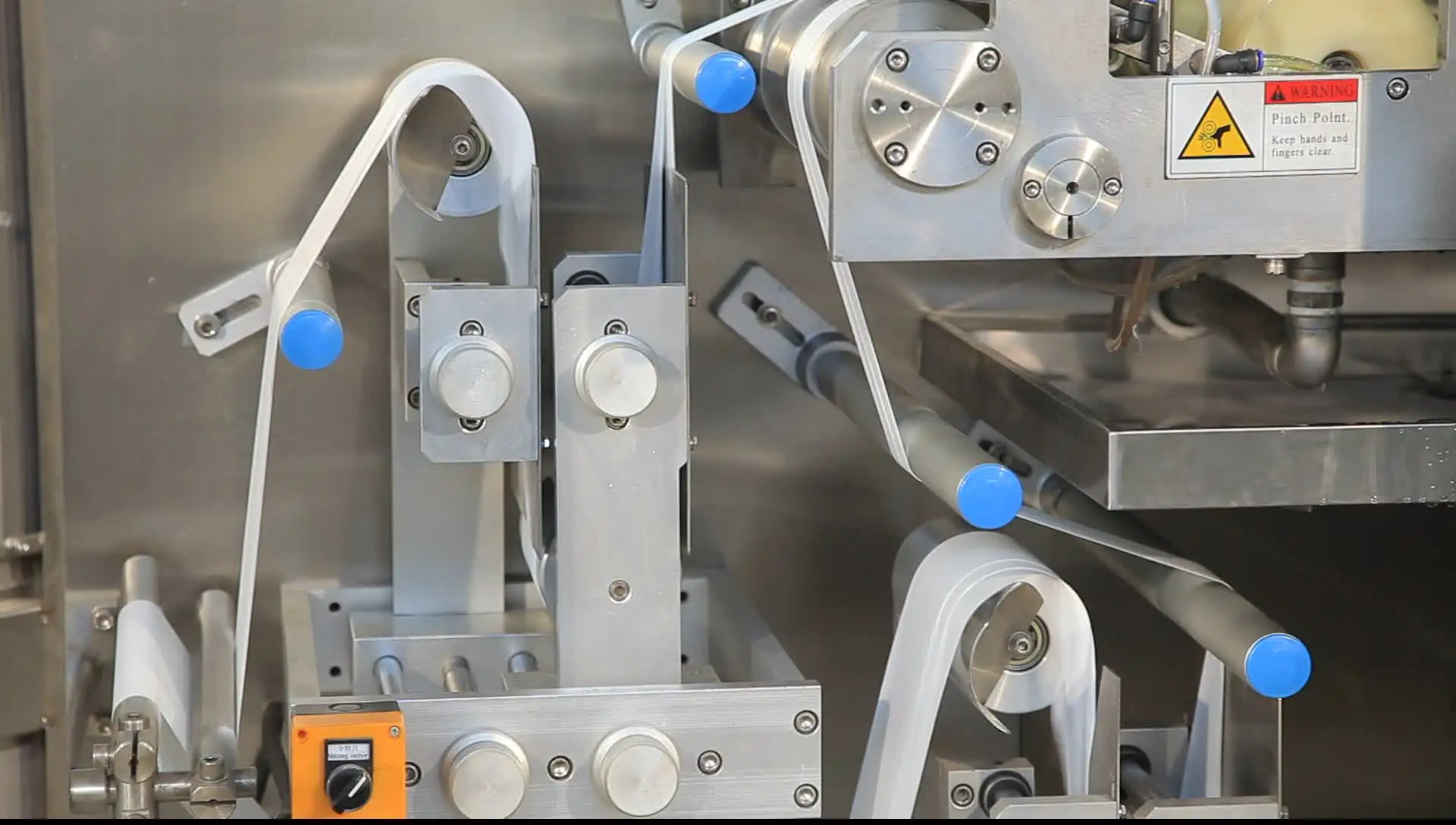

Product details

Finished Products

Packaging & Shipping

By exporting standard protective measures. Such packing shall be suitable for long distance ocean and /or air, and inland transportation and well protected against dampness, moisture, shock, rust and rough handling so as to ensure that the goods will safely arrive at the erection or construction site without any damage.
