Automatic Red Bull Energy Drink Water Bottle Filling Machinery / JuiceJuce Filling Machine / Equipment

Product details
Port:Shanghai port for red bull energy drink;Applicable Industries:Food & Beverage Factory;
Name:Automatic drink filling machine / juice filling machine / equipment;Capacity:0-10000BPH;
Brand Name:YuFeng;Packaging Material:Glass,Metal,Plastic;
Type:Filling Machine;Certification:CE.;
Processing type:Pulp juice filling;Condition:New;
Supply Ability:5 Set/Sets per Month Automatic Red bull energy drink filling machine / juice filling;Packaging Type:Bottles,Cans;
Payment Terms:L/C,T/T,Western Union;After-sales Service Provided:Engineers available to service machinery overseas;
Place of Origin:Jiangsu China;After-sales Service Provided:Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Voltage:380V/50HZ/customize;Application:Beverage,Chemical,Food,Medical;
Warranty:2 Years;Driven Type:Electric;
Automatic Grade:Automatic;Dimension(L*W*H):5100*1700*1950mm;
Packaging Detail:Filming outside the machine and standard wooden case packaging: Automatic Red Bull Energy Drink Water Bottle Filling Machinery / JuiceJuce Filling Machine / Equipment;Weight:4000KG;
Operate:Touch screen, PLC control;Material:SUS 304;

Automatic Red Bull Energy Drink Water Bottle Filling Machinery / JuiceJuce Filling Machine / Equipment

Product Description

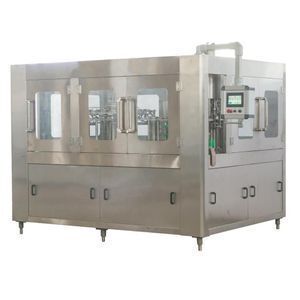

Automatic Red bull energy drink filling machinery / juice filling machine / equipment



Juice energy drink non-carbonated beverage drink bottling machine

The filling machine is mainly designed for filling hot temperature liquid into glass bottle; For example juice, tea drinks etc which are made of concentrate juice. The final filling temperature will be around 85-90 degree centigrade; Once the thermal meter in juice filling machine is lower than the temperature, juice will be return to sterilizing machine again through return system.
Glass bottle juice filling machine is different from plastic bottle. It will be optional and suggested to apply 4 in 1 filling machine, one more washing system is adopted to warm up the glass bottle in advance.







Plastic bottle juice filling machine

Model

Capacity

Bottle

Cap

Air consume

Power

Weight

Dimensions

(b/h)

Dia(mm)

Height(mm)

Capacity(ml)

m3/m

(Kw)

(Kg)

(mm)

RCGF  12-12-4

4000

Φ50-Φ100

150-320

330-1500

Plastic screw cap

0.2

4.6

2500

2350*1700*2150

RCGF  18-18-6

6000

Φ50-Φ100

150-320

330-1500

0.4

5.4

3800

1830*2030*2030

RCGF  24-24-8

8000

Φ50-Φ100

150-320

330-1500

0.4

6.4

5200

3220*2300*2600

RCGF  32-32-8

12000

Φ50-Φ100

150-320

330-1500

0.5

8.07

6500

3450*2510*2710

RCGF   40-40-10

15000

Φ50-Φ100

150-320

330-1500

0.55

9.56

8000

3800*2800*2710

RCGF  50-50-12

18000

Φ50-Φ100

150-320

330-1500

0.6

11.18

11200

4510*3400*2900







Features:

- The machine is 3 in 1 or 4 in 1 filling machine, including bottle (two step rinsing) rinsing, juice filling and bottle capping;
- Filling machine can be adjusted the height automatically basing on different height of bottles;
- It's better to adopt same diameters of glass bottle;
- NOTE the touch screen will be apply "Pro-Face", it can be remote control under internet condition; Once machine program down, we can modify in our factory;
- Same as plastic bottle filling machine. There is return system, including high position tank, return tank, vacuum pump and pump; For return juice to sterilizing machine;
- Except the juice, such filling machine can be used for filling water as well;
- The whole machine structure (all inside parts and outside structure) is totally new designed;
- There is central device for glass bottle while filling;
- Sanitary filling head system is of umbrella structure, high filling speed and perfect filling temperature control system and reflux tank system has the function of supplying the material automatically;
- More function can be added basing on requirement;
- High speed performance with less filling head;
- All the spare parts are made in one piece, which will be easy to change;
- Aluminum screw cap: Vibration cap sorters will be applied to this filling machine;
