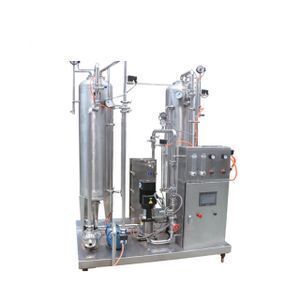

Automatic CO2 mixer / carbonated drink mixer / soft drink mixing machine

Drink mixer

 The drink mixer is used to mix the water,syrup and CO2 to be beverage, or mix the CO2 drink to be with more CO2, like beer,soda water, sparkling water and so on.

1, Refined material using, precise processing:

All touching parts choose high quality stainless steel, Inner-outer all polishing, meet international beverage machinery standard;

2, Auto running, stable facility:

Electronic control for whole working process; Alarm device will work if any fault occurs;

3, Convenient operation and easy adjustment

The operation just needs to start the button on turn according to the required procedures, and then you can achieve normal operation. There is no need to replace any parts, can adjust the production capacity and the mixture ratio of drink.

4, Mixing uniformity, the proportion is accurate

Use flow meter to control liquid and CO2 ratio.

5, The structure is healthy and easy to clean

The machine adopts a closed system made by stainless steel and has the CIP flavor cleaning equipment to clean the equipments and pipeline by the liquid antiseptic and hot water, and then to ensure the beverage made by the machine can meet the health requirements.

Parameters:

Capacity: 1000L/h

Gas content:--2.5

Temp: 0-5°C

Gas consumption: 2.5m³/h

Compressed air consumption: 0.5m³/h

Working pressure: 0.05-0.08Mpa

Working pressure of storage vessel: 0.2-0.5Mpa

Power: 1.1KW

Dimension: 1000*900*1900mm

Weight: 500kg

 1000L/H and 2000L/H CO2 drink mixer
