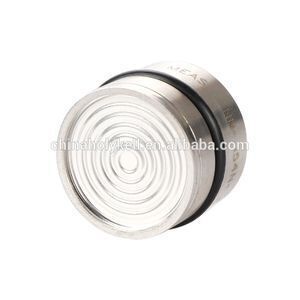

CYX19 Diameter 19mm low cost Liquid Level Silicon Oil-filled Isolated Membrane Piezoresistive Pressure Sensor

Supplier: Holykell Technology Company Limited
Region: Hunan, China
Contact: Ms Bonnie Liu
Price: $5.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Pressure range:	0-600kPa....100MPa by customized;	Electric connection:	Kovar Pin;
Application:	Viscous medium/Sanitary/food;	Supply Ability:	10000 Piece/Pieces per Month pressure sensor;
Working temp. range:	-40℃~+125℃;	Specification:	piezoresistive pressure sensor;
Port:	Shenzhen;	Place of Origin:	Hunan China;
Brand Name:	Holykell-pressure sensor;	Model Number:	CYX19-piezoresistive pressure sensor;
Packaging Detail:	Pressure sensors are packed with standard ESD plastic box attached with parameter label inside; outside is hard paper Standard holykell package box A,B,C,D,E box for exporting;	Warranty:	18 Months;
Payment Terms:	L/C,T/T,Western Union;	Pressure type:	Gauge, absolute, sealed gauge available;
Pressure sensor core Diameter:	Diameter 19mm Stainless Steel Silicon Oil Filled Pressure Sensor;	Housing marterial:	Full stainless steel 316L;
Constant current power supply:	1.5mA (input voltage max 10Vdc) mv output;

CYX19 Diameter 19mm low cost Liquid Level Silicon Oil-filled Isolated Membrane Piezoresistive Pressure Sensor

♦ Profiles

Holykell CYX19 high stable OEM sensor is the piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable silicon die. Stainless steel 316L housing with diameter Φ19mm . Wider temperature compensation and zero correction are calibrated by laser trimming technics. The measured pressure is transmitted onto silicon die through 316L diaphragm and inner media, to transform the pressure to electric signal. CYX19 pressure sensor is inspected and screened on automatic production line, testing and checking time after time strictly. It is widely used for various pressure measurement fields.

♦ Details Show Silicon Oil-filled Isolated Membrane Piezoresistive Pressure Sensor

♦ Specifications Silicon Oil-filled Isolated Membrane Piezoresistive Pressure Sensor

Specification of Piezoresistive Pressure Sensor

Specification		Min	Typ	Max
FS output (mV)		--	100	--
Zero output (mV)			±1	±2
Non Linearity (%FS)			0.2	0.5
Hysteresis (%FS)			0.05	0.1
Repeatability (%FS)			0.05	0.1
Zero Temperature drift (%FS@25℃)	10kPa		±0.4	±1.6
Zero Temperature drift (%FS@25℃)	≥35kPa		±0.15	±0.8
Temperature Error Sensitivity (%FS @25℃)	10kPa		±0.4	±1.6
Temperature Error Sensitivity (%FS @25℃)	≥35kPa		±0.2	±0.7
Long-term stability (%FS/Year)			0.1
Compensated temp. range(℃)		0~50;-10~80
Working temp. range(℃)		-40~+125

♦ Features of Silicon Oil-filled Isolated Membrane Piezoresistive Pressure Sensor

• Pressure range ,-100kPa~10kPa~100MPa

• Gauge, absolute, sealed gauge
• Constant current power supply
• Isolated construction, enable to measure various media
• Φ19mm standard OEM pressure sensor
• Full stainless steel 316L
• Wide temperature compensation -10℃~+80℃
• Long-term stability 0.1%FS/year

• 18 Months warranty

♦ Application of Silicon Oil-filled Isolated Membrane Piezoresistive Pressure Sensor

• Industrial process control

• Gas, liquid pressure measure
• Pressure checking meter

• Pressure calibrator

• Liquid pressure system and switch
• Cooling equipment and air conditioning system

• Aviation and navigation inspection

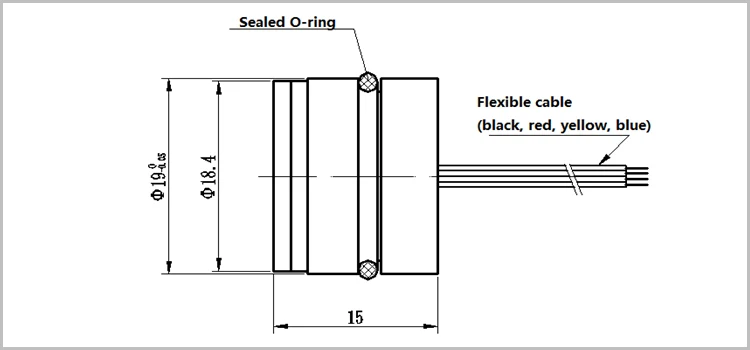

♦ Dimension and Drawing

production process

♦ Quality monitoring

Packaging & Shipping

♦ Packaging&Shipping

♦ Inquiry information

In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
