Textile Cone to Cone Yarn Winder Machine with Winding Drum

Supplier: Wuxi Xindawei Textile Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Dean Dai
Price: $190.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Brand Name:	Xindawei;	Weight:	39kg;
Model Number:	Xindawei;	Name:	High speed hard cone winding machine/rewinding machine/hard winder;
Supply Ability:	540 Unit/Units per Month;	Payment Terms:	L/C,D/A,D/P,T/T;
Automatic Grade:	Semi-Automatic;	COLOR:	Grey, green, white, blue;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Jiangsu China;	Num of Spindles:	1-108;
Production Capacity:	HIGH SPEED;	Voltage:	220v;
Package:	Wooden case;	Application:	Winding Yarns;
Delivery Detail:	10 days after payment;	Material:	Steel;
Memory Capacity:	999999m;	Port:	Shanghai/Ningbo;
Certification:	Certification;	Warranty:	1 Year;
Dimension(LWH):	450450500mm;	Power(W):	Spindle;
Application:	Waxing, rewinding, weaving;	Packaging Detail:	Wooden Case, we have several kinds of packages, we will according to your demands to design.;

Product Description

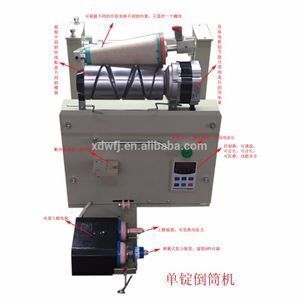

Single Spindle(Unit)

1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.

2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.

3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.

4. Supplied in sections of 1 up to 108 heads ready for opearation.

4 or 6 Spindles(Units)

1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.
2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 108 heads ready for opearation.

LZ-M-L-G

1. Direct drive by motor ,speed adjustable per section and side.
2. Tension adjustment via 2 pressure controllers with springs,they also have waxing function.

3. Auto stop while yarn break.

4. Automatic length fixing.

5. Slow start.

Detailed Images

Packing & Delivery

Specifications

Item	Technical parameters
Types of winding	Drum,Random
Mechanical speed	Up to 1200m/min (process speed depending on quality of yarn and feed packages)
Package shape	Cylindrical or conical
Traverse length	147mm,150mm,154mm
Softedges-displacement	2-8mm
Package bobbin	Cylindrical or conical of 3°30’
Package diameter	Up toφ 290 mm
Package density	0.2-0.4g/cm3
Fibre / count	Cotton.flax, wool, silk,chemical fiber /Ne 6…180
Auto stop while yarn break	With electronic yarn detector,the spindle will stop when yarn break
Slow start	For smooth start and better winding quality,supportting individual slow start for each spindle(available on request)
External dimensions	2540mm(length)*816mm(width) ×1560mm(height)
Power supply	3 phased 380V±10% ，50/60HZ
