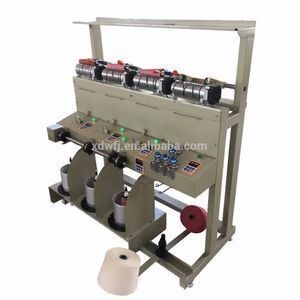

PP Yarn Twisting & Three for One Doubling Machine

Product details
Brand Name:Xindawei;Production Capacity:HIGH SPEED;
COLOR:Grey, green, white, blue;Certification:Certification;
Application:Waxing, rewinding, weaving, twisting;Name:PP Yarn Twisting & Three for One Doubling Machine;
Package:Wooden case;Warranty:1 Year;
Dimension(L*W*H):1270*720*1450mm;Num of Spindles:4/6;
Package Type:Wooden Case;Single gross weight:186 KG;
Selling Units:Single item;Single package size:163X78X165 cm;
Material:Steel;After-sales Service Provided:Engineers available to service machinery overseas;
Package Preview:https://sc02.alicdn.com/kf/HTB1EyvbbO6guuRjy1Xdq6yAwpXaf.jpg_640x640.jpg;Power(W):Spindle;
Voltage:380v/220v;Delivery Detail:0 days after payment;
Weight:168kg;Application:Winding Yarns;
Automatic Grade:Semi-Automatic;Condition:New;
Place of Origin:Jiangsu China (Mainland);Memory Capacity:999999m;
Product Description

Single Spindle(Unit)

1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.

2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.

3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.

4. Supplied in sections of 1 up to 108 heads ready for opearation.

4 or 6 Spindles(Units)

1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.
2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 108 heads ready for opearation.

LZ-M-L-B

1. Direct drive by motor ,speed adjustable per section and side.
2. Tension adjustment via 2 pressure controllers with springs,they also have waxing function.
3.  Auto stop while yarn break.
4.  Automatic length fixing.
5.  Slow start.

Detailed Images
Packing & Delivery
Specifications
Item
Technical parameters
Types of winding
Drum,Random
Mechanical speed
Up to 1200m/min (process speed depending on quality of yarn and feed packages)
Package shape
Cylindrical or conical
Traverse length
147mm,150mm,154mm
Softedges-displacement
2-8mm
Package bobbin
Cylindrical or conical of 3°30’
Package diameter
Up toφ 290 mm
Package density
0.2-0.4g/cm3
Fibre / count
Cotton.flax, wool, silk,chemical fiber /Ne 6…180
Auto stop while yarn break
With electronic yarn detector,the spindle will stop when yarn break
Slow start
For smooth start and better winding quality,supportting individual slow start for each spindle(available on request)
External dimensions
2540mm(length)*816mm(width) ×1560mm(height)
Power supply
3 phased 380V±10% ,50/60HZ
Certifications
Related Products

Ni-P Alloy Grooved Drum

Lead: 147mm

Outer diameter: 82mm

Length: 185mm

Turns: 2

Ni-P Alloy Grooved Drum
Lead: 147mm
Outer diameter: 82mm
Length: 176mm
Turns: 2.5

Ni-P Alloy Grooved Drum
Lead: 130mm
Outer diameter: 90mm
Length: 147mm
Turns: 1.5
