Condition: | New; | Brand Name: | Beyond; |
Wirerope Diameter: | 32mm; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Rig Floor Height: | 6m; | Selling Units: | Single item; |
Power Type: | Diesel; | Package Type: | Packing in nude; |
Warranty: | 12 months; | Weight: | 85000KG; |
Usage: | Oil Well; | Dimension(L*W*H): | 23X3.2X4.8 (m); |
Place of Origin: | Shandong China; | Mast Height: | 38m; |
Normal drilling depth: | 4000m; | Hydraulic System: | 21MPa; |
After-sales Service Provided: | Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service; | Single gross weight: | 68 KG; |
Type: | Rotary Drilling Rig; | Drawworks Rated Power: | 1000HP; |
Model Number: | ZJ 40; | Certification: | API; |
Drive Mode: | 14X10; | Single package size: | 23X32X48 cm; |
Max. hook load: | 2250KN; | Applicable Industries: | Energy & Mining; |
Transmission Mode: | Hydraulic Mechanical; |

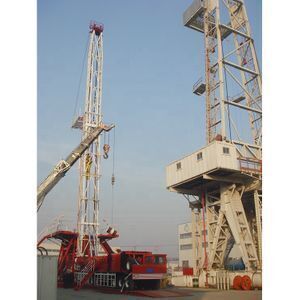

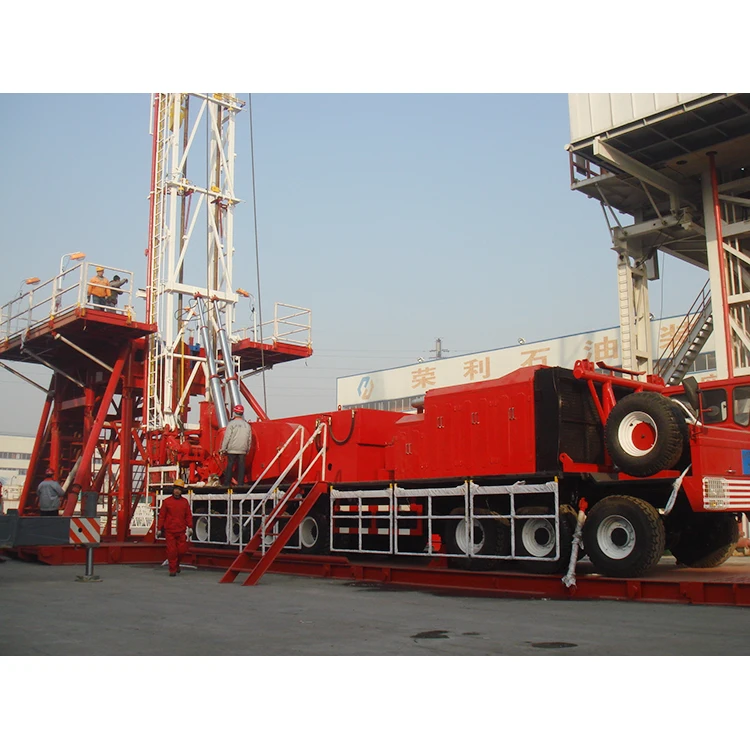

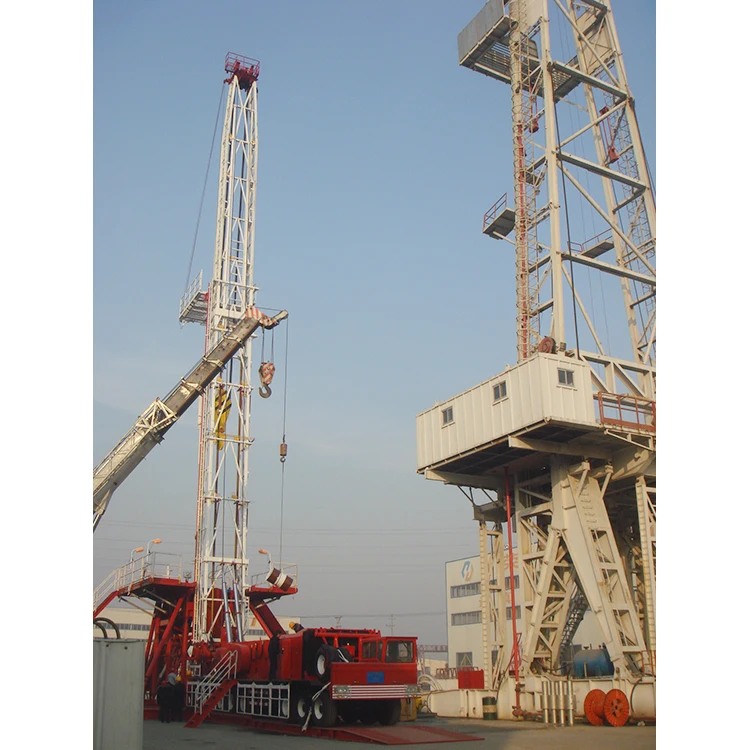

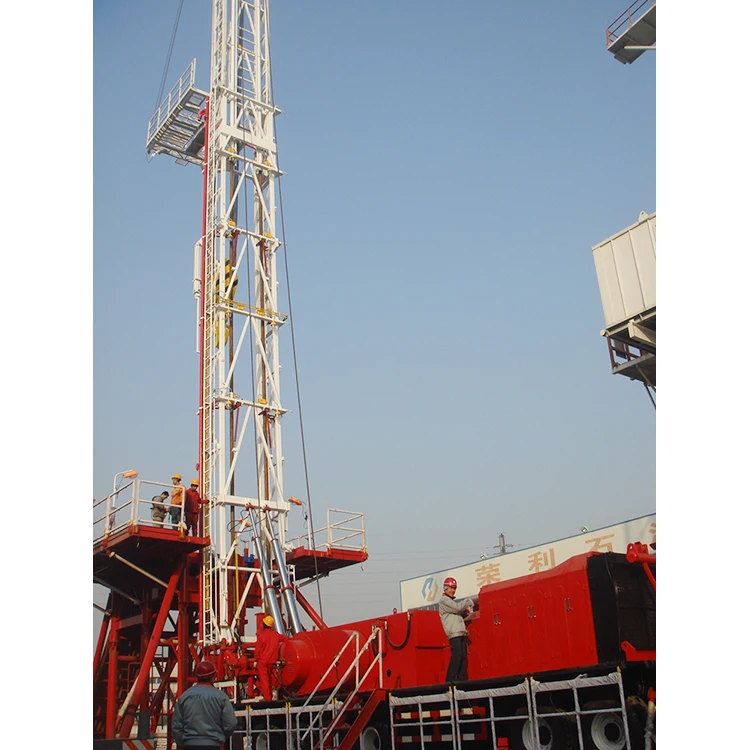

Mobile Drilling Rig China Top Quality Hot Sale 1000hp ZJ40 Drilling Rig
Technical Spec./Type | ZJ20 | ZJ30 | ZJ40 | ZJ50 | ZJ70 |
Drilling Depth(M) | 2000 | 3000 | 4000 | 5000 | 7000 |
Max. hook load (KN) | 1470 | 1700 | 2250 | 3150 | 4500 |
Power of Drawworks (HP) | 650 | 750 | 1000 | 1500 | 2000 |
Drive | Mechanical | Mechanical | Mechanical/ | Mechanical/ | Mechanical/ |
(belt/chain) | (belt/chain) | Electric (AC/DC)/ Combined | Electric (AC/DC)/ Combined | Electric (AC/DC)/ Combined | |
Mast Height(M) | 35 | 36/38 | 42 | 45 | 45/48 |
Substructure Height (M) | 4.5 | 5 | 6.7 | 7.5 | 9 |
Rotary Table | ZP205 | ZP275 | ZP275 | ZP375 | ZP375 |
Mud Pump | F/3NB-800 | F/3NB-1000 | F/3NB-1300 | F/3NB-1600 | F/3NB-1600 |
Power of Mud Pump (HP/KW) | 800/588 | 1000/735 | 1300/956 | 1600/1180 | 1600/1180 |
Mud Handing Capacity(m³) | 160 | 185 | 240 | 300 | 360 |
Rope Diameter(mm) | 29 | 29/32 | 32 | 35 | 38 |
Wireline System | 4x5 | 5x6 | 5x6 | 6x7 | 6x7 |
ManifoldsDiameter(mm) ×Pressure(MPa) | 103x35 | 103x35 | 103x40 | 103x70 | 103x70 |
Drilling Rigs
We supply a full line of drilling rig packages: skid-mounted drilling rigs, truck-mounted drilling rigs and trailer-mounted drilling rigs. Our skid-mounted drilling rigs include diesel electric AC/VFD or DC/SCR drive rigs, mechanical-electric combined drive rigs, and mechanical rigs (Belt or Chain transmission), from 450HP to 3,000HP (Rated Drilling depth: 1,500-9,000m). Our truck-mounted drilling rigs range from 550HP to 1,000 HP.
Company Introduction
SHANDONG BEYOND PETROLEUM MACHINERY CO.,LTD. is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.
BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs.
BEYOND believes that it will become your best cooperative partner in China.
