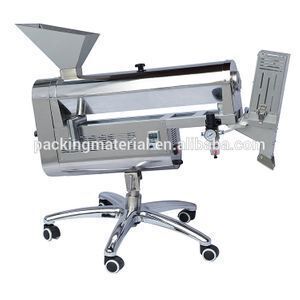

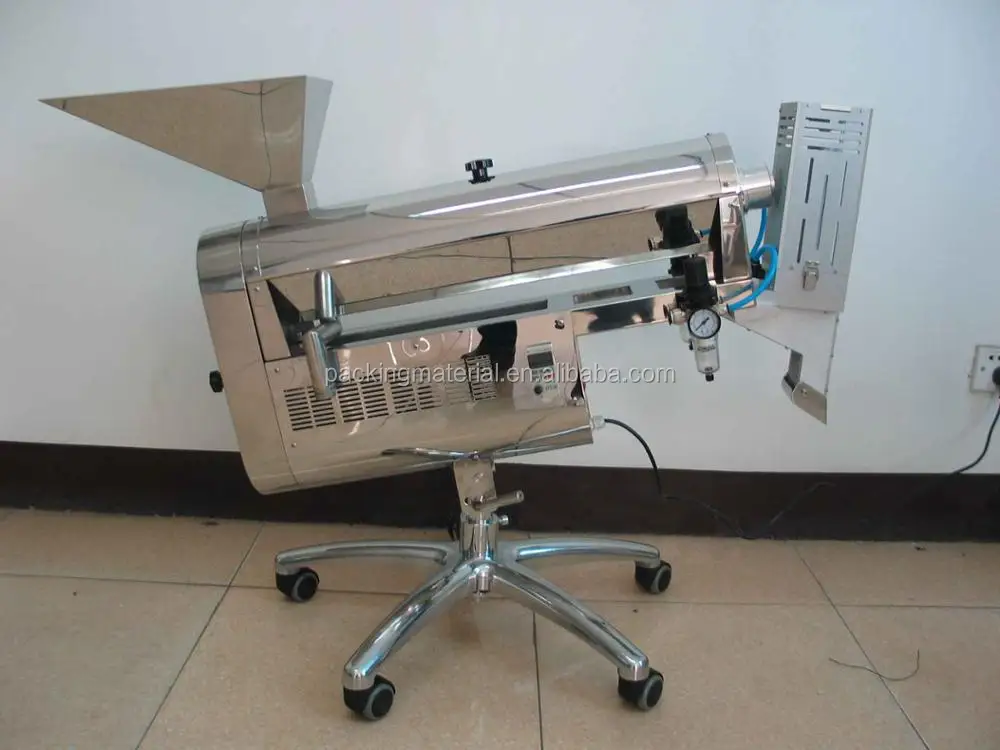

JFP-110A pharmaceutical capsule polisher / capsule polishing sorting rejecting machine

Product details
Brand Name:Pingfang;Dimension(L*W*H):800X550X1000mm;
Certification:CE;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Name:Capsule Polishing Polisher;Model Number:JFP-110A;
Power(W):180W;Supply Ability:100 Unit/Units per Week;
Port:Shanghai, China;Warranty:One Year;
Application:Pharmaceutical Industry;Material:Stainess Steel;
Productivity:150000pcs/hour;Place of Origin:Zhejiang China;
Weight:45KGS;Packaging Detail:Exported wooden case.;
Feature:Adjustable Speed;Condition:New;
Delivery Detail:7days before shipments.;Voltage:220V 50HZ 2A;
After-sales Service Provided:No overseas service provided;

JFP-110A pharmaceutical capsule polisher / capsule polishing sorting rejecting machinesorting rejecting achine



Product Description



JFP-110A is a newly designed capsule polisher to polish capsule and tablets.

Features:

1.        The height and angle can be adjusted to fit into any chute of the capsule filling machine and tablet press so the products can be polished immediately after production.

2.        It can eliminate static, and automatically reject ultra light weight capsules, fragment and empty capsule.

3.        New type net cylinder ensures no jammed capsules during operations.

4.        The capsules are not directly contact with the metal net to protect the printed capsule effectively.

5.        New type of brush is durable and can be change easily.

6.        Excellent design for quick cleaning and straightforward maintenance.

7.        Adopts frequency converter, which is great for continuous long hours of operations.

8.        Drive by synchronous belt to reduce noise and vibration of the machine

9.        It is suitable for all size of capsules without any change parts.

10.    All the main parts are made of premium stainless steel are in compliance with pharmaceutical GMP requirements.



Main Technical parameter:

Working capacity

150000pcs/hour

Power supply

220V 50HZ 2A,

Negative pressure

2.7m³/min  -0.014mpa

Compressed air

0.25 m³/min 0.3Mpa

Overall dimension(LxWxH)

800X550X1000mm

Package size:

960X610X1100mm

Machine weight

45KGS

Gross weight

60kgs





Configuration list:

Name

Model

Brand

Qty

Remark

Three-phase asynchronous motor

MS6324

UNISCOM

1



fuse

RT14

Delixi

1



inverter

DVM-2S004G-02

DE lisle

1



power switch

KCD2

DELU

1



Travel switch

AZ7310

SNJDQ

1



Air filtering pressure regulating valve

TM2000-02

STNC

1

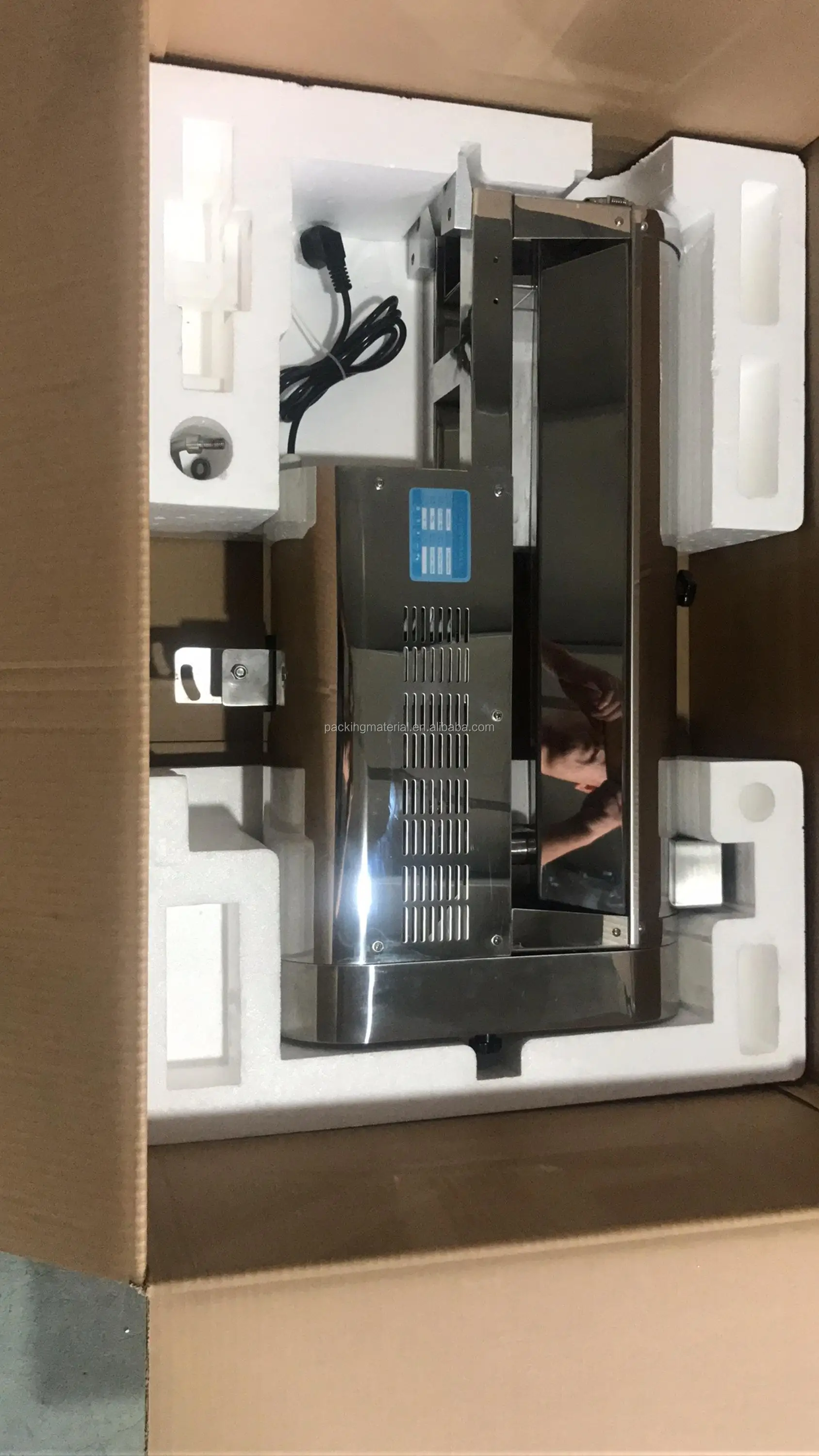

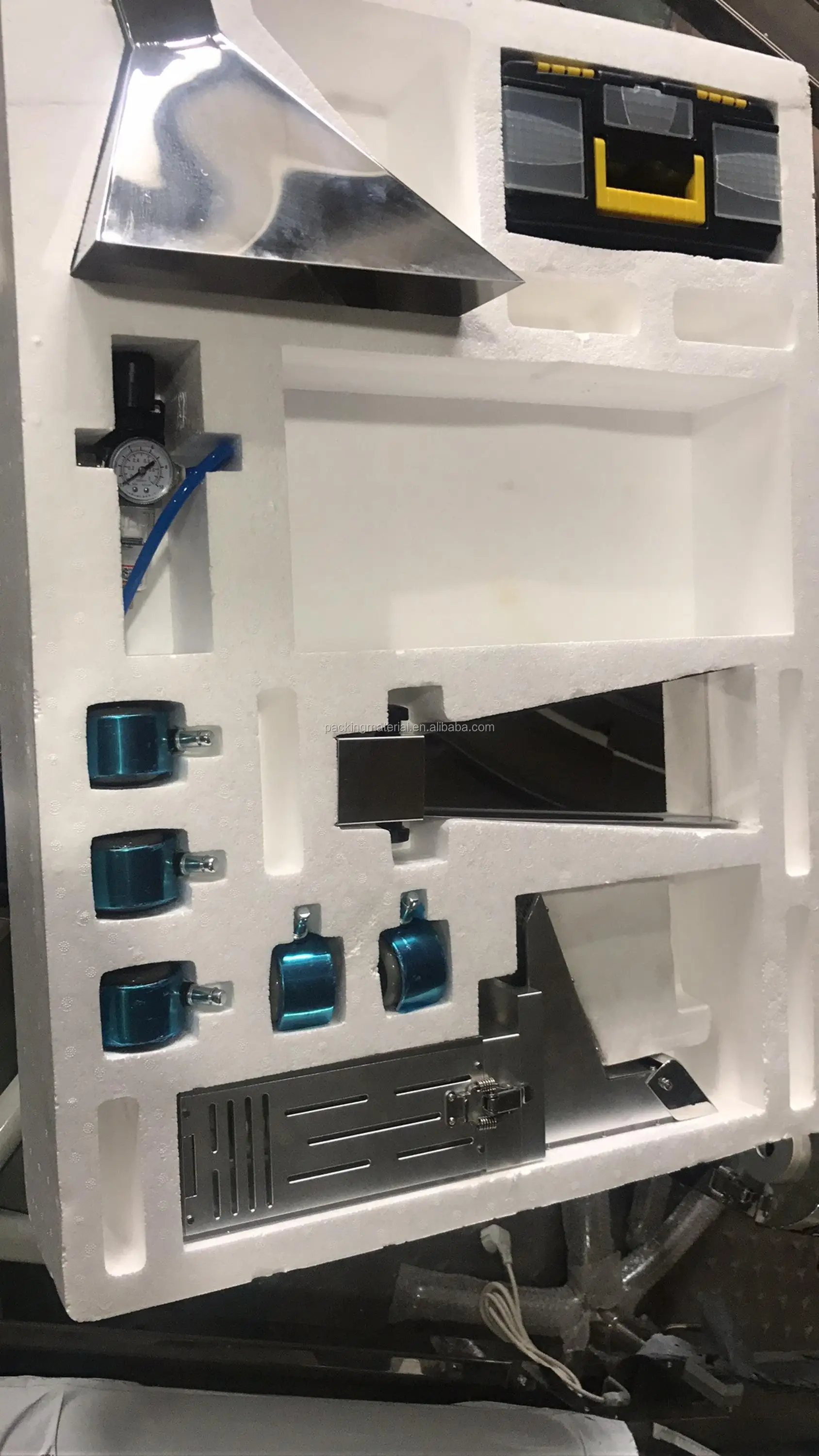

Package situations:







Packaging & Shipping



We are using standard  export plywood cases. To ensure that the transport process will not damage and safety arrived in customers' hands.





Our Services

Installing and Commission:

We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .





Warranty period:

 One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.
