keyless or keytype Drill Chuck

Supplier: Dezhou Zhongyi Industry And Commerce Co., Ltd.
Region: Shandong, China
Contact: Mr Jack zhao
Price: $2.10 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Place of Origin:	Shandong China (Mainland);	Power:	Electric;
Supply Ability:	5000 Piece/Pieces per Month;	Brand Name:	Zhongyi;
Port:	qingdao,xingang;	Delivery Detail:	within 7-21 days;
outer packing:	cartons;	Number of Jaws:	3;
Payment Terms:	L/C,T/T,Western Union;	application:	clamping tool;
Model Number:	1-10mm,1-13mm;	inner packing:	paper or plastic box;
runout:	highest is 0.05mm;	material:	tool steel;
Packaging Detail:	by paper/plastic box in cartons,pallet are available according to the customer's requirement.;

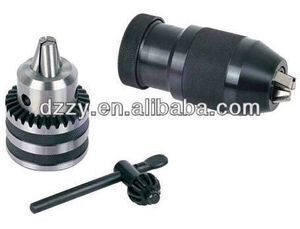

Keyless or keytype drill chuck

Connection type:JT hole, B hole, or threaded hole connection
Clamping sizes as below:

0.5-6mm
0.5-8mm
1-10mm
1-13mm
3-16mm
5-20mm
Grade type:light type,heavy type

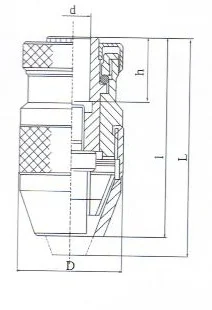

1.Keyless drill Chuck:

no.	capacity(mm)	taper	d(mm)	h(mm)	D(mm)	L(mm)	l(mm)
J0106	0.5-6"	B10 B12	10.094 12.065	14.5 18.5	Ø35	67	61
J0206	1/64"-1/4"	JT0 JT1	6.350 9.754	11.112 16.669	Ø35	67	61
J0108	0.5-8	B12 B16	12.065 15.733	18.5 24.0	Ø42	86	78
J0208	1/64"-5/16"	JT2 JT33	14.199 15.850	22.225 25.400	Ø42	86	78
J0110	1-10	B12 B16	12.065 15.733	18.5 24.0	Ø42	86	78
J0210	1/32"-3/8"	JT2 JT33	14.199 15.850	22.225 25.400	Ø42	86	78
J0113	1-13	B12 B16	12.065 15.733	18.5 24.0	Ø44	97	88
J0213	1/32"-1/2"	JT2 JT33	14.199 15.850	22.225 25.400	Ø44	97	88
J0116II	3-16	B16	15.733	24.0	Ø48	102	92
J0216II	1/8"-5/8"	JT6	17.170	25.400	Ø48	102	92
J0116	3-16	B18	17.780	32.0	Ø48	108	98
J0216	1/8"-5/8"	JT3	20.599	30.956	Ø48	108	98
J0120	5-20	B22	21.3	30.5	Ø53	115	103
J0220	3/16"-3/4"	JT3	20.599	30.956	Ø53	115	103

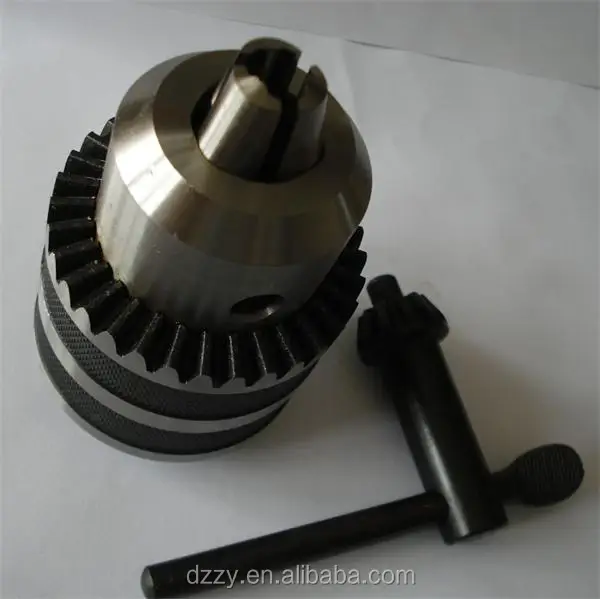

2.Keytype drill chuck

thread mount:

order no.	capacity		mount	D(mm)	L1(mm)	L(mm)
J3110	1-10mm	1/32-3/8in	3/8-24UNF	43.4	54	69.7
J3110	1-10mm	1/32-3/8in	1/2-20UNF	43.4	54	69.7
J3113	1-13mm	1/32-1/2in	1/2-20UNF	53.2	67	86

Taper mount:

order no.	capacity		mount	D(mm)	L1(mm)	L(mm)
J2110	1-10mm	1/32-3/8in	B12	43.4	54	69.7
J2113	1-13mm	1/32-1/2in	B16	53.2	67	86
J2516	3-16mm	1/8-5/8in	B16	53.2	67	86
J2516	3-16mm	1/8-5/8in	B18	53.2	67	86
J2116	1-16mm	1/32-5/8in	B16	57	75	93
J2116	1-16mm	1/32-5/8in	B18	57	75	93
J2120	5-20mm	3/16-3/4in	B22	65.3	82	110

Jacquard taper mount:

order no.	capacity		mount	D(mm)	L1(mm)	L(mm)
J2210	1-10mm	1/32-3/8in	JT2	43.4	54	69.7
J2213	1-13mm	1/32-1/2in	JT33	53.2	67	86
J2213	1-13mm	1/32-1/2in	JT6	53.2	67	86
J2616	3-16mm	1/8-5/8in	JT3	53.2	67	86
J2616	3-16mm	1/8-5/8in	JT33	53.2	67	86
J2616A	3-16mm	1/8-5/8in	JT6	53.2	67	86
J2216	1-16mm	1/32-5/8in	JT3	57	75	93
J2220	5-20mm	3/16-3/4in	JT3	65.3	82	110

packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.

Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.

Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.

Our Services and reputation: we have been the supplier at Alibaba for 10(ten) years.

We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
