PF70/5C rotary indexing indexing head

Supplier: Dezhou Zhongyi Industry And Commerce Co., Ltd.
Region: Shandong, China
Contact: Mr Jack zhao
Price: $25.00 /set
Min. Order: 1 set

Click here to contact

Product details

brand:	favorite	Core components:	not any
Video shipment inspection:	if	Material:	steel
port:	Qingdao	Supply capacity:	600 sets per month
payment terms:	L/C, Western Union, T/T, Alibaba, paypal	Spindle center height:	70mm
Types of:	dividing head	Minimum scale:	1 degree
Marketing Type:	normal product	brand:	Loyalty
State of health:	new	Mechanical test report:	if
Material:	High quality alloy steel	Packaging Details:	carton or wooden box
After warranty service:	online support	Showroom location:	not any
Applicable industries:	Manufacturing plants, machinery repair shops	Weight (kg):	1.68
Warranty:	6 months	Model:	PF70/5C

PF70/5C spin index dividing head:

The indexer is one of the important supporting units of machine tools such as drilling machines, milling machines, and grinding machines. With the help of this unit, the machine tool can complete operations such as indexing processing of various corner pieces, setting line drawings of workpieces, etc. Parts etc.

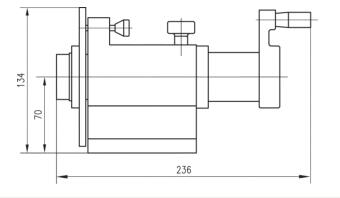

model.	PF70/5C
center height	70 mm 2-3/4"
Spindle outer taper radial runout	0.010 mm 0.0004"
Outer diameter of center hole (25mm/0.98" from spindle nose)	0.03 mm 0.0012"
Parallelism between spindle centerline and base surface	0.02 mm 0.0008"
Inter-individual distance segmentation accuracy	±4'
