BS-2 universal micro manual lathe with chuck indexing head for milling machines

  • Supplier: Dezhou Borui Precision Co., Ltd.
  • Region: Shandong, China
  • Contact: Ms Amy Ma
  • Price: $640.00 / 1 - 2 sets
    $620.00 / 3 - 9 sets
    $600.00 / >=10 sets
  • Min. Order: 1 set
Product details
Chuck:Three-jaw self-centering lathe chuckSales unit:Single product
Video outbound inspection:not availableMarketing type:normal product
Local service locations:not anyusage:Milling machines, grinders, drilling machines
turn around:90 down vertically to -10Applicable industries:Manufacturing plants, machine repair shops, retail
Package:wooden boxWarranty:1 year
deliver goods:Within 7 working days after paymentPost-warranty service:Video technical support
brand:Boruiproduct name:Universal small manual lathe and milling machine with chuck indexing head
Health status:newpayment terms:T/T, Western Union, Credit Card, Paypal
ratio:40:1Material:steel
Model:Indexing head F11Packaging details:1. Wooden box 2. Indexing head chuck according to your requirements
Showroom location:not anySingle piece packaging size:40X30X20cm
Gross weight of single piece:68.000kgbrand:Borui
feature:Anti-rust dividing headCore components:PLC, engine, motor, pressure vessel
After-sales service provided:Video technical supportMechanical test report:not available
type:Universal type, also semi-universal type, dividing head

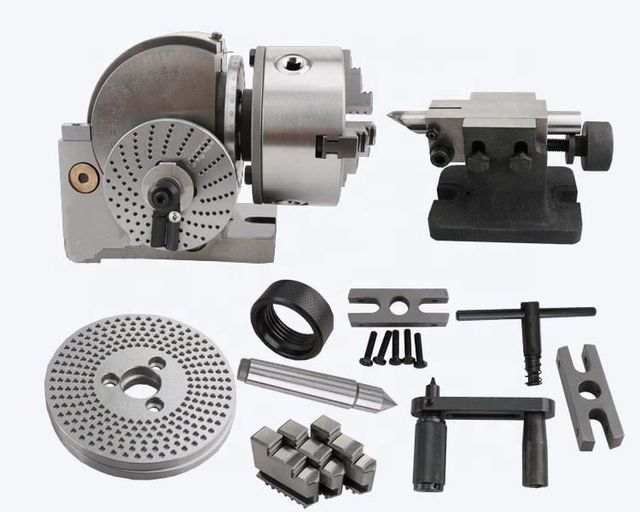

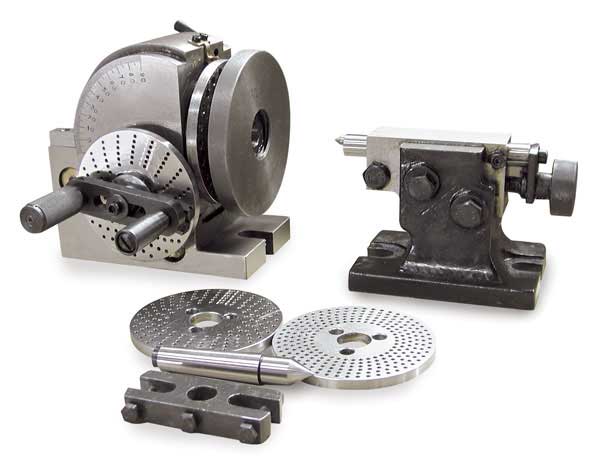

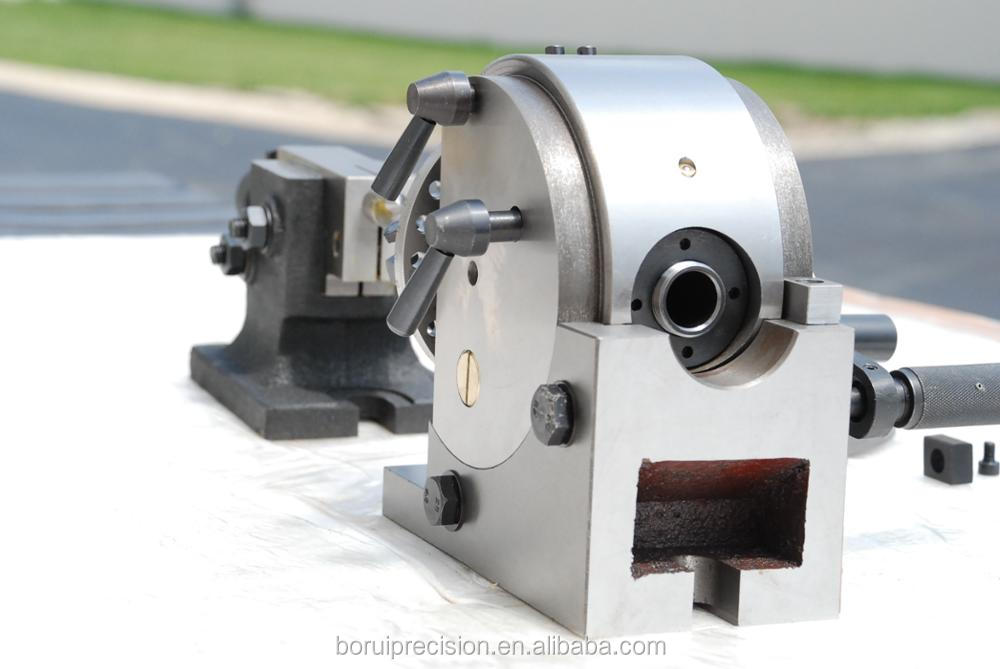

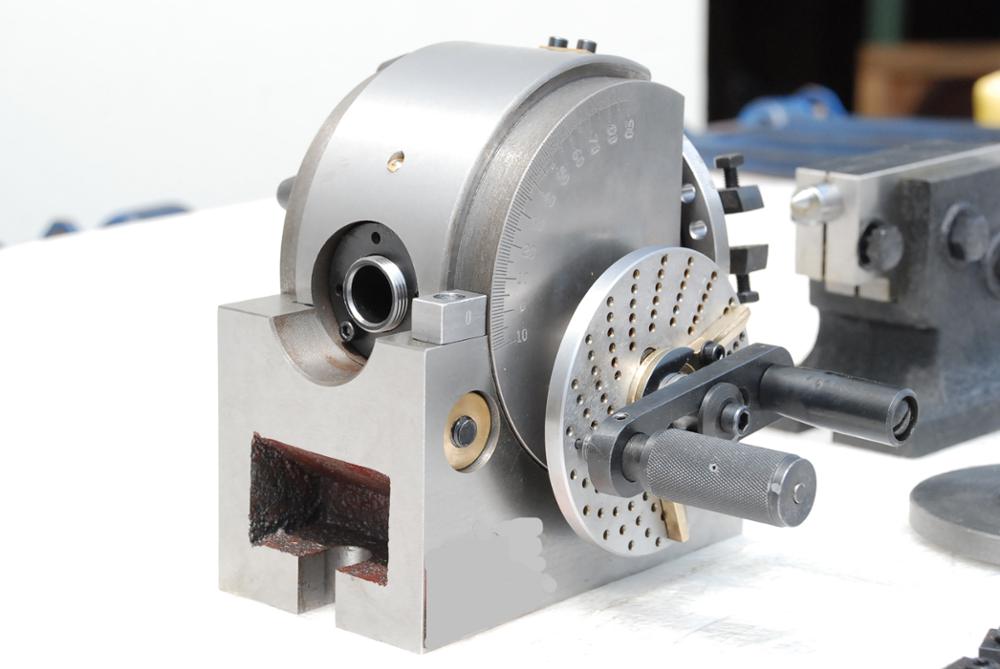

Universal small manual lathe and milling machine with chuck indexing head

As one might expect from the name, Graduation Heads are all about graduations. Segmentation is not about moving a certain angle, but dividing the entire circle into a specific number of parts. The most obvious use is when cutting gears. This circle must be divided by the number of teeth required for the gear to be cut. (Of course, the teeth are not actually cut - rather the space between them is.) One tooth is cut, then the workpiece is rotated the required amount, then the next tooth is cut, and so on until all the teeth All are chipped. The tooth has been severed.

simple index

Most indexing heads have a built-in indexing ring. It is fixed on the spindle. It has spaced holes around it and a pin mechanism that locks the spindle into any of these holes. This form of indexing eliminates the need for worms and worm gears. These can be lifted. The workpiece is free to rotate except where the indexing pin is locked to the indexing plate. Of course, the only number that can be divided is the number of holes on the index plate. But a lot of times it's useful.

This has the advantage of rotating the spindle much faster than using a worm and worm gear. It is also possible to engage the worm and worm gear and use a handle to turn it, then use an indexing plate to lock the spindle.

Whenever a pin and indexing plate are used to lock the spindle, there is no need to clamp the spindle.

A turntable is always calibrated in terms of the angle of its edge, whereas an indexing head is never

Universal dividing head

order number. A Second H H A Second G Spindle hole northwest
F11132 365 Chapter 272 236 132 213 134 16 MS4 73
F11132E 365 Chapter 272 236 132 213 134 16 B&S10 73



talk stocks

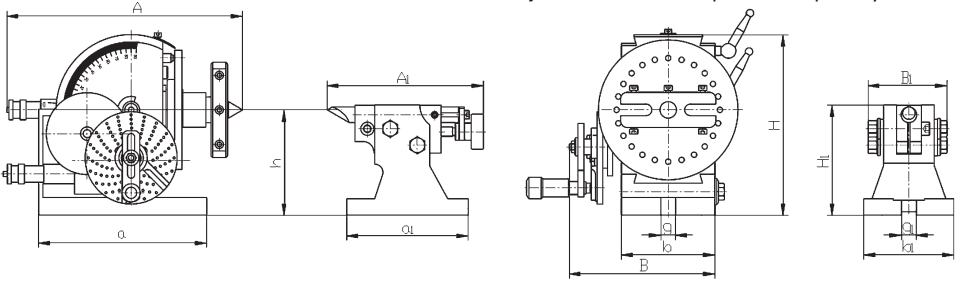

order number. A1 B1 H1 H a1 b1 g1
F11132(English) 183 88 156 132 175 124 16





Number of partition holes A, B, C

Board A 15 16 number 17 18 No. 19 20
Board B twenty one twenty three 27 29 31 33
Board C 37 39 41 43 47

49

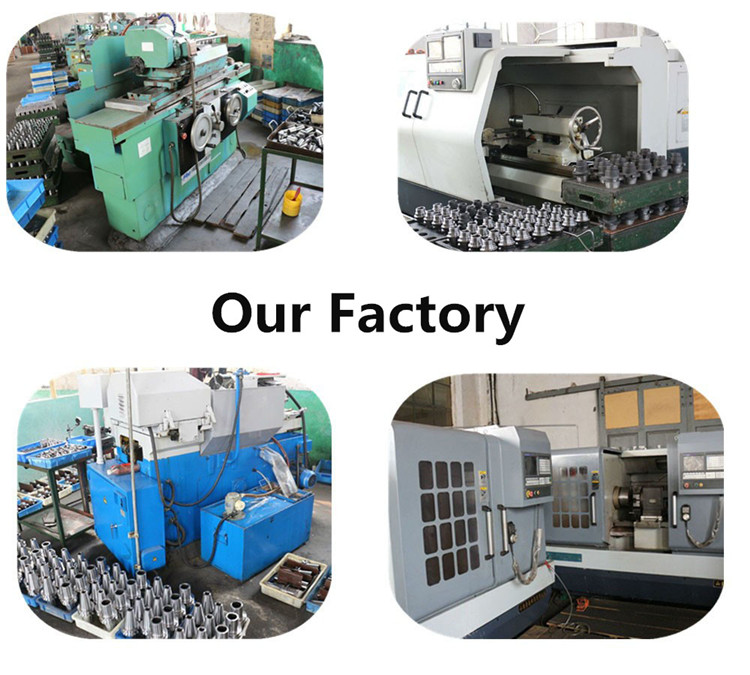

Universal dividing head factory
