Package Type: | 1, wooden case 2,according to your request; | Product name: | M3-M16 automatic metal tapping machine; |
Voltage: | 110V/220V/240V; | Condition: | New; |
Weight: | 31kg; | After-sales Service Provided: | Online support,Video technical support,No after-sales service,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; |
Model Number: | M3-M12 threading tapping machine; | CNC or Not: | CNC; |
Range of Spindle Speed(r.p.m): | 312rpm; | Delivery Detail: | 0 days after payment; |
Drilling Speed: | 0-312rpm; | Selling Units: | Single item; |
Tapping Range: | M3-M12; | Single package size: | 70X65X28 cm; |
Warranty: | 36 Months; | Warranty: | 3 years; |
Payment: | TT, Paypal,Western Union; | Power(W): | 1200W; |
Certification: | CE ISO9001; | Service: | OEM; |
Working radius: | 1100mm/1300mm/1900mm Can be customized plus long arm; | Dimension(L*W*H): | 700*650*280,mm; |
Packge: | wooden box; | Single gross weight: | 31 KG; |
Brand Name: | Borui; | Tapping Direction: | Vertical or horizontal; |
Motor: | servo motor; | Driving mode: | Electric, we also have Pneumatic; |
Place of Origin: | Shandong China (Mainland); |

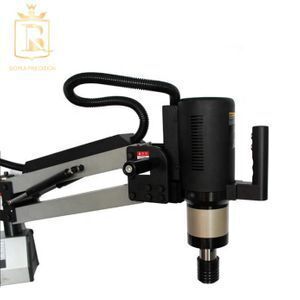

M3-M16 automatic metal tapping machine
Advantages of products:
1, the machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.
2, advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non deformation, beautiful appearance.
3. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy workpiece, locate quickly, and process accurately.
4, stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
5, automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.
6, repeated positioning fast, tapping speed, high production efficiency.
Product Model Classification
With servo drive control, with intelligent torque protection, the overall rigidity is strong, durable and non deformation, beautiful appearance, rapid positioning, accurate processing, repeated positioning fast, tapping speed, high production efficiency.
The three modes of operation can be used to consider a variety of working environment, and the operation is simple and flexible, high-definition touch screen version can be fully automatic mode convenient, fast and accurate, the key version is more suitable for complex working environment.
The three modes of operation can be used to consider a variety of working environment, and the operation is simple and flexible, high-definition touch screen version can be fully automatic mode convenient, fast and accurate, the key version is more suitable for complex working environment.
A variety of positioning operations, can effectively according to their desired positioning requirements to choose, accurate positioning, easy to operate, easy to locate a variety of.
Parameter list of similar products
M3-M16 Vertical electric tapping machine | M3-M16 universal electric tapping machine | ||
Brand | Borui | Brand | Borui |
Model | M3-M16 | Model | M3-M16 |
Voltage | 220v,AC,50/60HZ | Voltage | 220v,AC,50/60HZ |
Power | 600w | Power | 600w |
Tapping range | M3-M16 | Tapping range | M3-M16 |
Tapping Collet(8pcs) | 3/4/5/6-8/10/12/14/16 | Tapping Collet(8pcs) | 3/4/5/6-8/10/12/14/16 |
Tapping Direction | Vertical or horizontal | Tapping Direction | Universal |
Working radius | 1100mm/1300mm/1900mm | Working radius | 1100mm/1300mm/1900mm |
Max Speed | 312rpm | Max Speed | 312rpm |
Customize | Yes | Customize | Yes |
Weight | 32kg | Weight | 32kg |
M6-M24 Vertical electric tapping machine | M6-M24 universal electric tapping machine | ||
Brand | Borui | Brand | Borui |
Model | M6-M24 | Model | M6-M24 |
Voltage | 220v,AC,50/60HZ | Voltage | 220v,AC,50/60HZ |
Power | 1200w | Power | 1200w |
Tapping range | M6-M24 | Tapping range | M6-M24 |
Tapping Collet(8pcs) | 6-8/10/12/14/16/18-20/22/24 | Tapping Collet(8pcs) | 6-8/10/12/14/16/18-20/22/24 |
Tapping Direction | Vertical or horizontal | Tapping Direction | Universal |
Working radius | 1100mm/1300mm/1900mm1300mm | Working radius | 1100mm/1300mm/1900mm |
Max Speed | 200rpm | Max Speed | 200rpm |
Customize | Yes | Customize | Yes |
Weight | 48kg | Weight | 48kg |
M6-M36 Vertical electric tapping machine | M6-M36 universal electric tapping machine | ||
Brand | Borui | Brand | Borui |
Model | M6-M36 | Model | M6-M36 |
Voltage | 220v,AC,50/60HZ | Voltage | 220v,AC,50/60HZ |
Power | 1200w | Power | 1200w |
Tapping range | M6-M36 | Tapping range | M6-M24 |
Tapping Collet(11pcs) | 6-36 | Tapping Collet(11pcs) | 6-36 |
Tapping Direction | Vertical or horizontal | Tapping Direction | Universal |
Working radius | 1100mm/1300mm/1900mm | Working radius | 1100mm/1300mm/1900mm |
Max Speed | 150rpm | Max Speed | 150rpm |
Customize | Yes | Customize | Yes |
Weight | 50kg | Weight | 50kg |
The product is suitable for workpiece material:
Electric tapping machine can be easy to tap in lead, copper, steel, cast iron, pig iron, 45 steel, die steel, metal material and other metal materials.
Applicable to all machinery manufacturing industry, machine tools, mold machinery, printing machinery, packaging machinery manufacturing plants, construction machinery, rolling stock, aircraft engines, plastic machinery and general machinery and other industries
