High precision PU50 cam indexer automatic filling and packaging machine rotary indexer driver cam indexer

Supplier: Henan Yifengxin Technology Co., Ltd.
Region: Henan, China
Contact: Ms Venice Lei
Price: $900.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Showroom location:	not any	port:	Shanghai, Ningbo, Qingdao
brand:	YFX,OEM	Package preview:
After-sales service provided:	Online support, video technical support	Mechanical test report:	if
brand:	Processing	Marketing type:	2020 new products
Applicable industries:	Manufacturing plants, food and beverage plants, construction and engineering, energy and mining	Packaging details:	Standard export packaging
payment terms:	D/A, D/P, T/T, Western Union, MoneyGram	Customized segmentation accuracy:	±72
Output shaft radial load:	130 (kg force)	Post-warranty service:	Video technical support
Output shaft axial load:	100 (kg force)	Core components:	engine
thing:	Indexing drive	weight:	7kg
Health status:	new	Input shaft torque:	6(kgf-m)
Material:	alloy steel	Video outbound inspection:	if
Supply capacity:	1000 pieces per month	Model:	Polyurethane 50
feature:	Support customization	product name:	cam separator
Input shaft radial load:	100 (kg force)	Warranty:	1 year
Input shaft axial load:	130 (kg force)	type:	Dividing head
Local service location:	not any

Product Description

PU parallel distributor

PU50, PU60, PU65, PU80, PU100, PU125, PU150, PU175, PU225, PU250

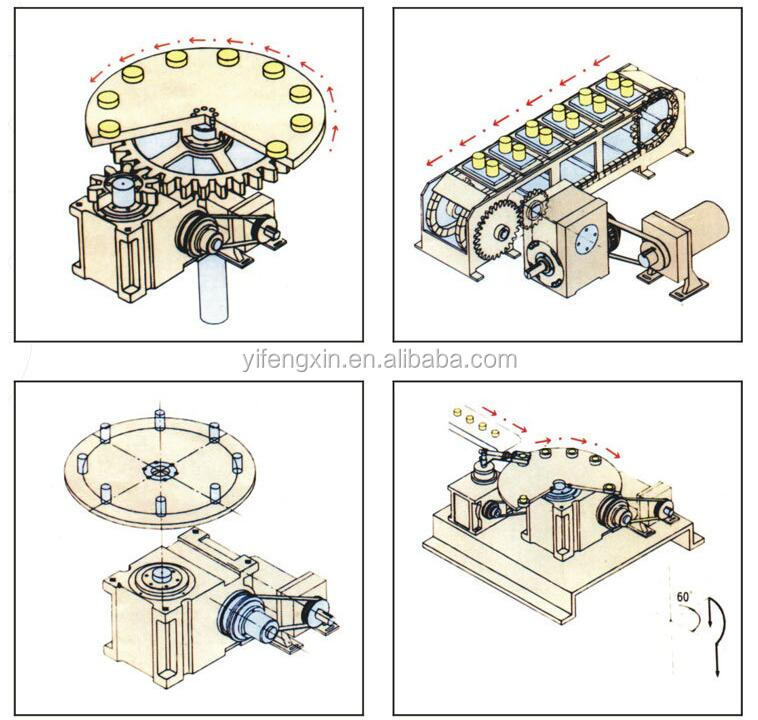

This machine uses two disc-shaped cams fixed on the input shaft to drive the indexing plate on the output shaft to complete the indexing. Parallel conjugate cam mechanism design The parallel conjugate cam mechanism design is most suitable for conveyor belts with large pitch or intermittent indexing and long dwell time. In addition, the three-piece heavy-duty type is more suitable for some fast and long-pitch conveying, and the residence time is longer than the two-piece type.piece.

Shipping instructions:

Apply anti-rust oil before shipment to prevent rust and ensure customers receive high-quality products.

Products can be customized in different sizes.

If you need samples, please tell us your sample requirements and we can provide samples for you.

Specification

Index drives are divided into the following three types according to the configuration of the output section: shaft type, flange type and table type. This is one of our regular products. It's easy to use and install. The DF series utilizes superior gear mechanisms to deliver speed and precision.

1. Provide a wide range of standard and customized motion control solutions and mechanical transmission solutions.

2. As a professional factory, we can provide customers with very competitive prices and good quality. The reducer has lower backlash (≤1arcmin), higher efficiency (≥95%) and lower noise (65dBA). And all gearboxes produced by Saini will undergo strict testing before leaving the factory. In addition, we also provide customers with one-year warranty and lifetime after-sales service.

3. We provide 24-hour professional technical support. 4. We provide customized services according to your requirements. 5. Fast delivery time. For standard reducers, we have sufficient stock and can deliver them to customers in a short time.

Our advantage

Unique mechanical properties

1. Simple structure:

There is only one cam and output shaft, which can provide any intermittent motion without other unnecessary parts.

2. Correct driving mechanism:

When indexing or stopping, the roller is fixed in the designated position without locking elements.

3. Smooth movement:

Since the output shaft is designed to rotate continuously in any position (regardless of angle, speed and/or acceleration), the rotating device operates smoothly, without vibration and noise.

4. High-precision indexing:

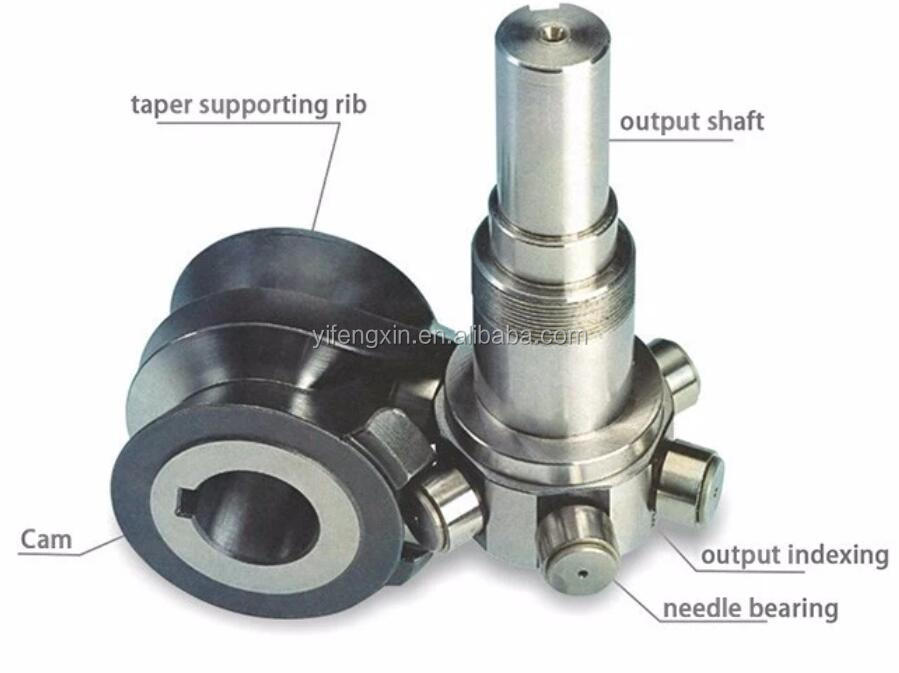

The specially designed needle bearings in the splitter ensure heavy load capacity while maintaining high splitting accuracy and high torque. This standard model has a segmentation accuracy of ±30”. Higher segmentation accuracy (±15”) is available if required.

5. High-speed performance:

Pre-tightening force is applied to the precision-machined cam and tapered support ribs of the needle bearings to completely avoid gaps and ensure reliable operation and high speed. Fully controlled acceleration reduces the effects of load or vibration.

6. Motion curve:

Corresponding to the required application, we can provide: ① Deformed trapezoidal curve (MT) ② Deformed sinusoidal curve (MS) ③ Deformed constant velocity curve (MCV)

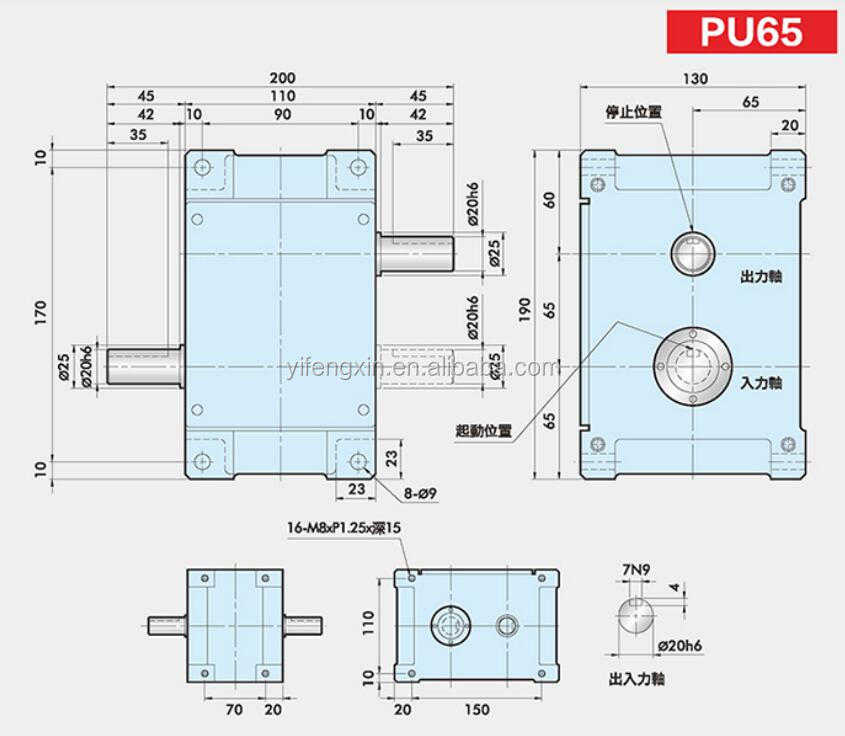

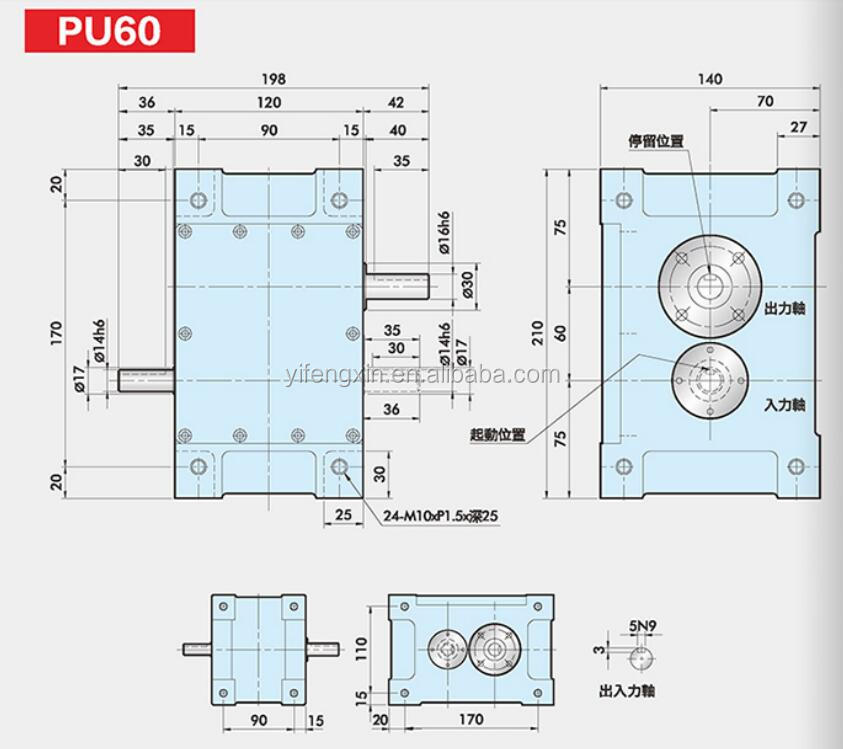

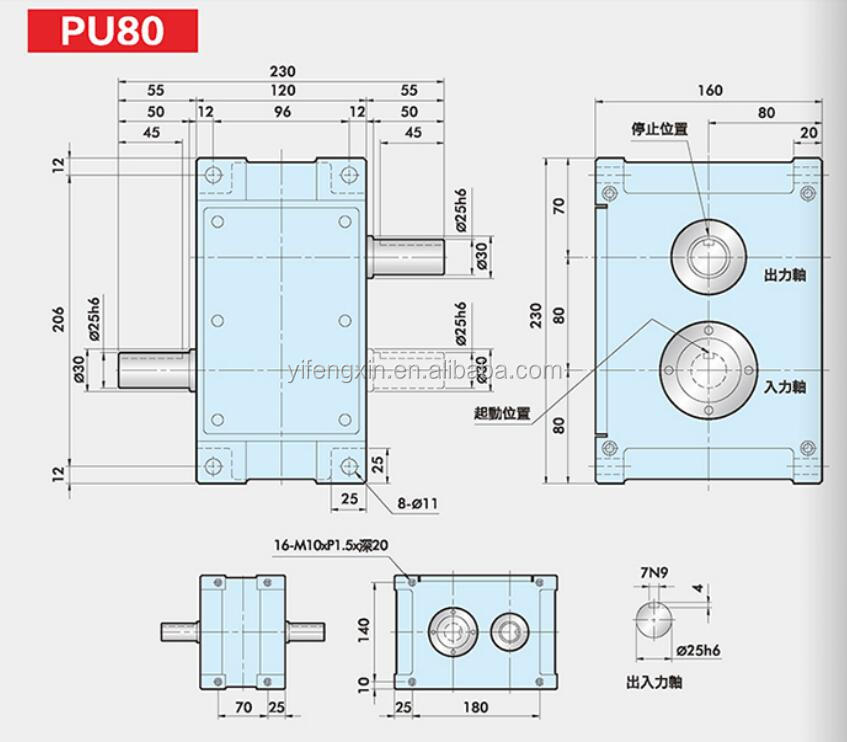

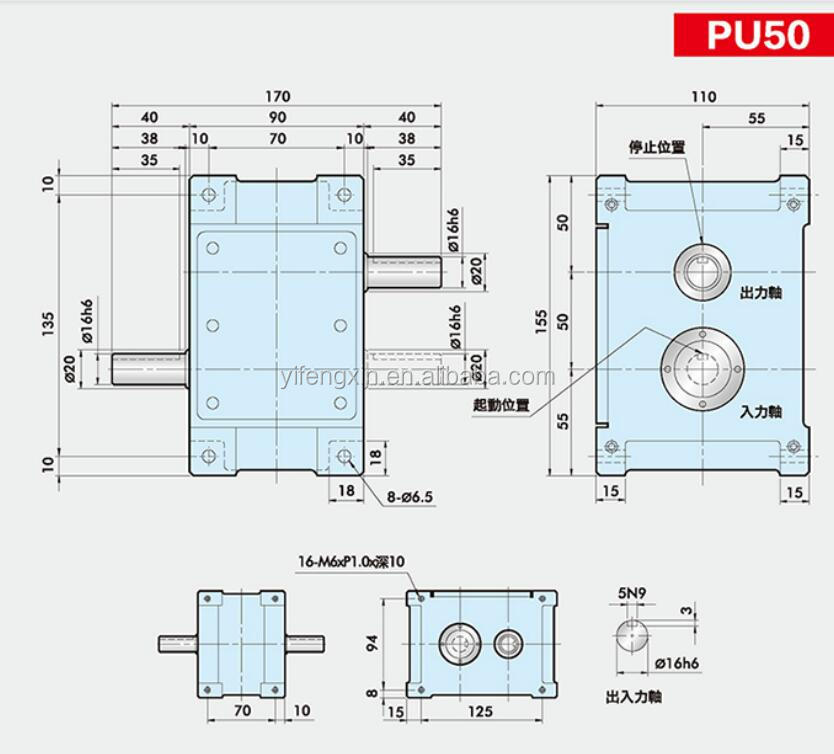

different models

Different models correspond to different sizes, you can choose the size you need.
