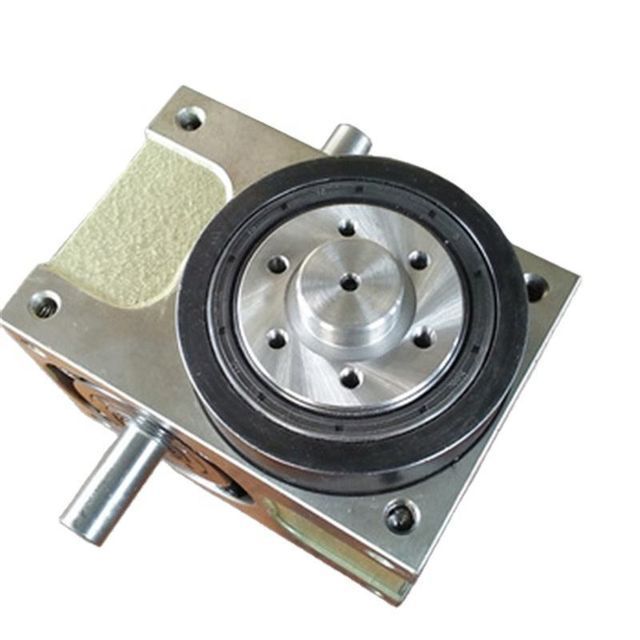

High Quality 100 DF Series Indexing Head Cam Index

Supplier: Henan Yifengxin Technology Co., Ltd.
Region: Henan, China
Contact: Ms Venice Lei
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

weight:	60KG	thing:	index drive
Showroom location:	not any	Mechanical test report:	if
port:	Shanghai, Ningbo, Qingdao	Health status:	new
payment terms:	D/A,D/P,T/T,Western Union,MoneyGram	Input shaft torque:	28(kgf-m)
Local service location:	not any	Core components:	bearing
Axial load of output shaft:	550 (kg force)	After Warranty Service:	Video technical support
Applicable industries:	Manufacturing Plants, Food and Beverage Plants, Construction Engineering, Energy and Mining	Packaging Preview:
feature:	Support customization	product name:	DF series batch machine
Input shaft radial load:	400 (kg force)	Video external inspection:	if
Marketing Type:	New Products 2020	Material:	steel
type:	split	After-sales service provided:	Online support, video technical support
Warranty:	1 year	application:	Food packaging, printing and die cutting
Model:	100DF	Supply capacity:	1000 pieces per month
Packaging Details:	Standard export packaging	Output shaft radial load:	450 (kg force)
brand:	YFX,OEM	Maximum bending moment of input shaft:	320 (kg force)
Card:	OEM

Product Description

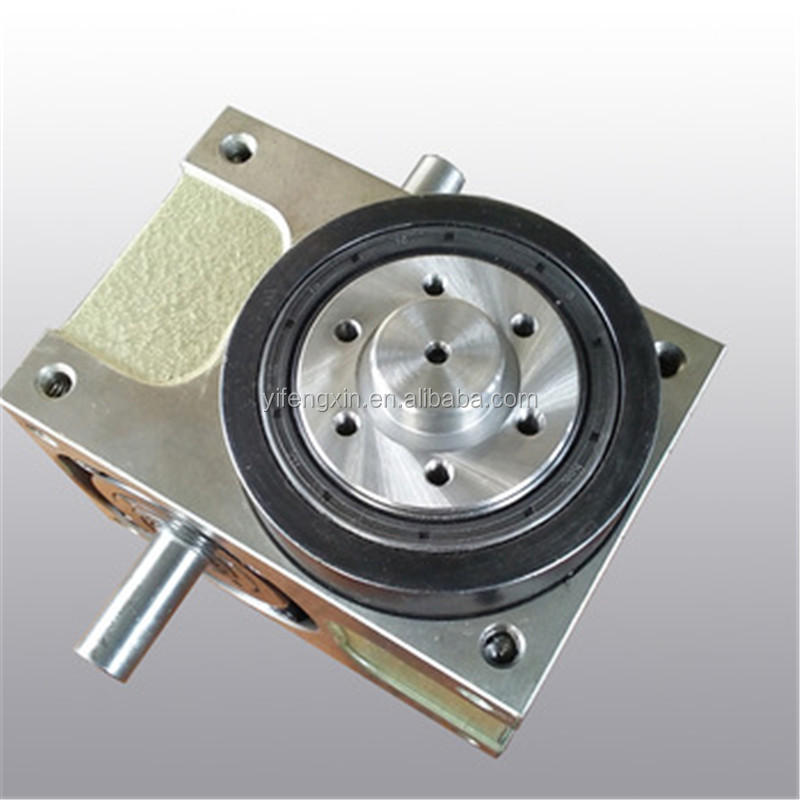

This model has the characteristics of heavy load and can bear large vertical radial or axial pressure. Its output shaft is designed with flange plate, which makes the connecting rod more firm and stable. Best for heavy duty spinning disk drives. Widely used in various disc processing machinery and similar industrial machinery, automatic intermittent drive devices, drive discs.

Specification

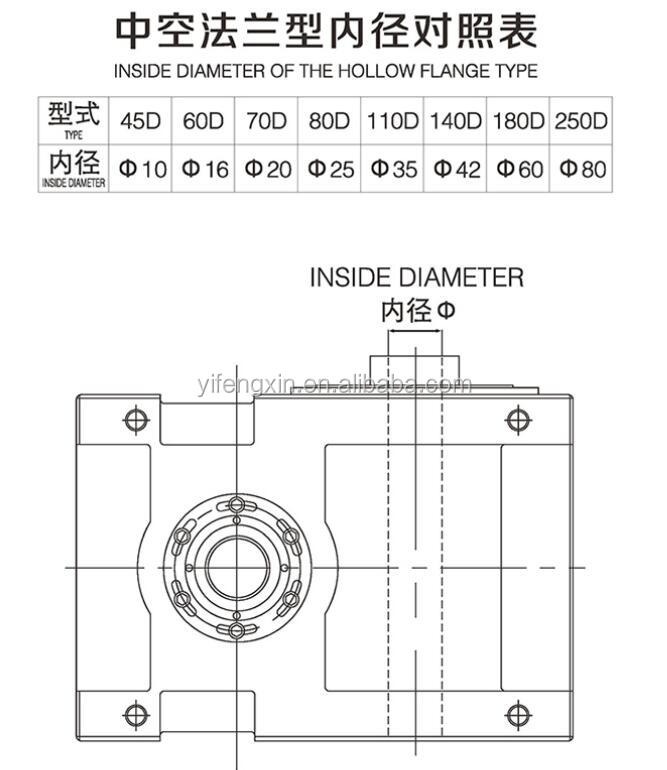

Index drives are classified into the following three types according to the configuration of the output section: shaft type, flange type and table type. This is one of our regular products. It's easy to use and install. Utilizing an excellent gear mechanism, the DF series provides speed and precision.

1. Provide a wide range of standard and customized motion control solutions and mechanical transmission solutions.

2. As a professional factory, we can provide customers with very competitive prices and good quality. The reducer has lower backlash (≤1 arcmin), higher efficiency (≥95%) and lower noise (65dBA). And all gearboxes produced by Saini will go through rigorous testing before leaving the factory. In addition, we provide customers with one-year warranty and lifetime after-sales service.

3. We provide 24-hour professional technical support. 4. We provide customized services according to your requirements. 5. Fast delivery time. For standard reducers, we have sufficient stock that can be delivered to customers in a very short time.

Our advantage

Unique mechanical properties

1. The organization is simple:

With only one cam and one output shaft, any intermittent motion can be provided without other unnecessary parts.

2. Correct drive mechanism:

When indexing or stopping, the rollers are fixed in position, so no locking elements are required.

3. Smooth movement:

Because the output shaft is designed to rotate continuously in any position (regardless of angle, speed and/or acceleration), the rotating unit runs smoothly without vibration and noise.

4. High precision indexing:

Specially designed needle roller bearings in the indexer ensure high dividing accuracy and high torque while ensuring heavy load capacity. This standard model has a segmentation accuracy of ±30". Higher segmentation accuracy (±15") is available if required.

5. High-speed performance:

Preload is applied to the tapered support ribs of the precision machined cam and needle bearings, completely avoiding backlash for reliable and high-speed operation. Fully controlled acceleration reduces shock due to load or vibration.

6. Movement curve:

Corresponding to the required application, it can provide: ① deformed trapezoidal curve (MT) ② deformed sinogram (MS) ③ deformed constant velocity curve (MCV)

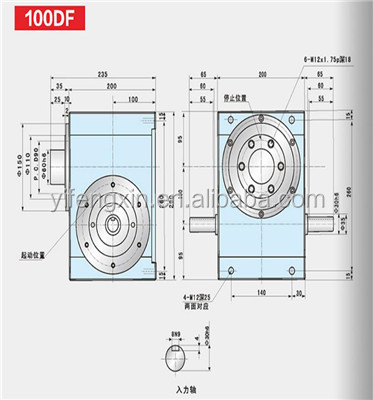

different models

Different models correspond to different sizes, you can choose the size you need.
