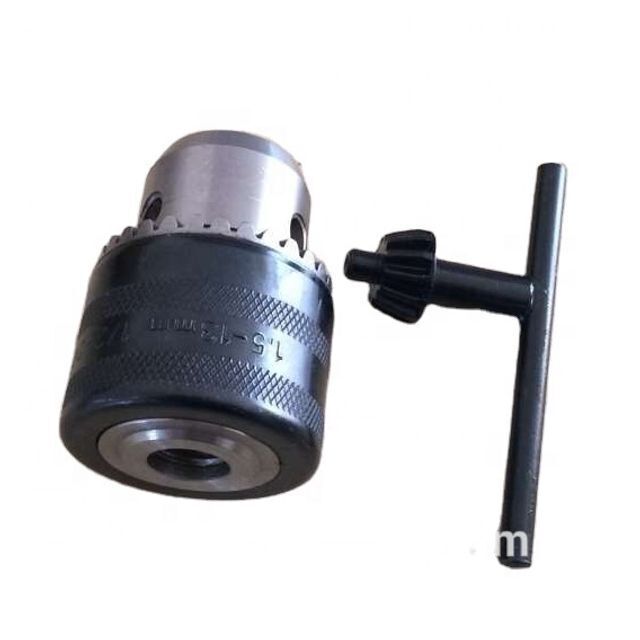

light type Drill Chuck with key

Product details
Port:qingdao,xingang;hole type:taper hole,thread hole;
Packaging Detail:by paper box in cartons,pallet are available according to the customer's requirement.;material:45#steel;
Brand Name:Zhongyi;Power:Electric;
Number of Jaws:3;Package Preview:;
Payment Terms:L/C,Western Union,T/T,alibaba,paypal;Material:Steel;
Model Number:1.5-10 B12,1.5-13 B16,3-16 B18, etc;Place of Origin:Shandong, China;
Supply Ability:5000 Pieces per Month;inner package:paper box;
out package:cartons;Type:Chuck;

light type Drill chuck with key.



1.Clamping size include:6.5mm,10mm,13mm,16mm.

 2.Hole:taper hole or thread hole.

3.Application:impack drill or AC/DC electrical drill.





16mm:

order no. clamping size(mm) connection size
J2516 3.0-16 B16
J2516 3.0-16 B18
J2516 3.0-16 B12
J3516 3.0-16 1/2-20UNF
J3516 3.0-16 3/8-24UNF
J3516 3.0-16 M12*1.25



10mm:

order no. clamping size(mm) connection size
J3510 1.5-10 3/8-24UNF
J3510 1.5-10 1/2-20UNF
J3510 1.5-10 10x1.5
J2510 1.5-10 B12



13mm:

order no. clamping size(mm) connection size
J2513 1.5-13 B16
J3513 1.5-13 1/2-20UNF
J3513 1.5-13 3/8-24UNF
J3513 1.5-13 M12*1.25





6.5mm:

order no. clamping size(mm) connection size
J3506 0.6-6.5 3/8-24UNF
J1306 0.6-6.5 B10
