Shape: | Round; | Payment Terms: | T/T,Western Union; |
Port: | Ningbo; | Supply Ability: | 500000 Set/Sets per Month aluminum idler roller; |
Material: | Aluminum; | Length: | can reach 4m; |
Diameter: | from 25mm to 320mm; | Packaging Detail: | Plywood Case.; |
Color: | Tawny; | Place of Origin: | Zhejiang China; |
Dynamic balance: | 2.5g; | Brand Name: | CBB; |
Surface treatment: | Hard oxidation; |

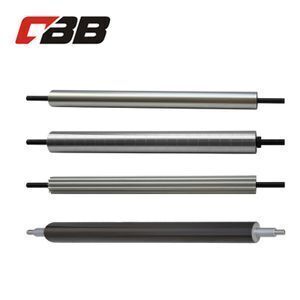

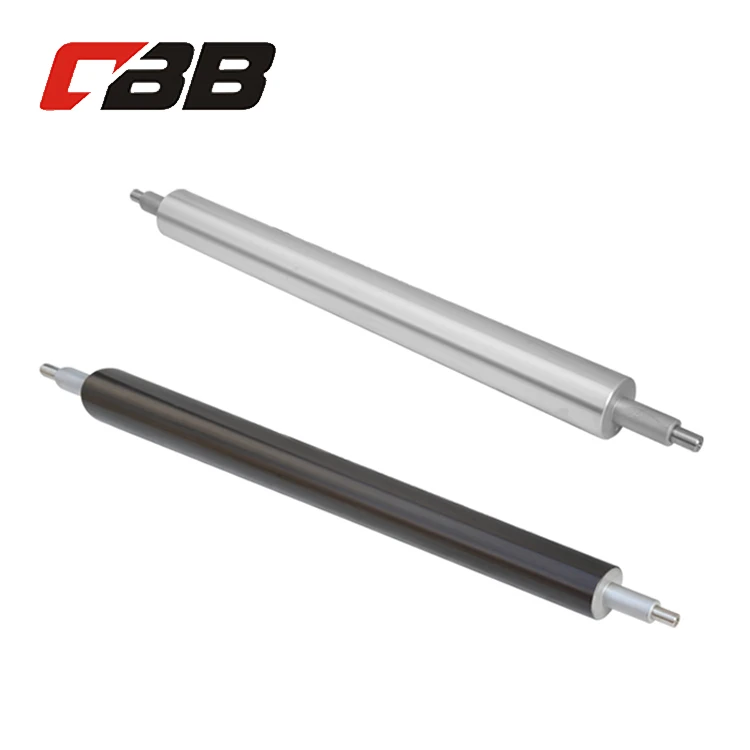

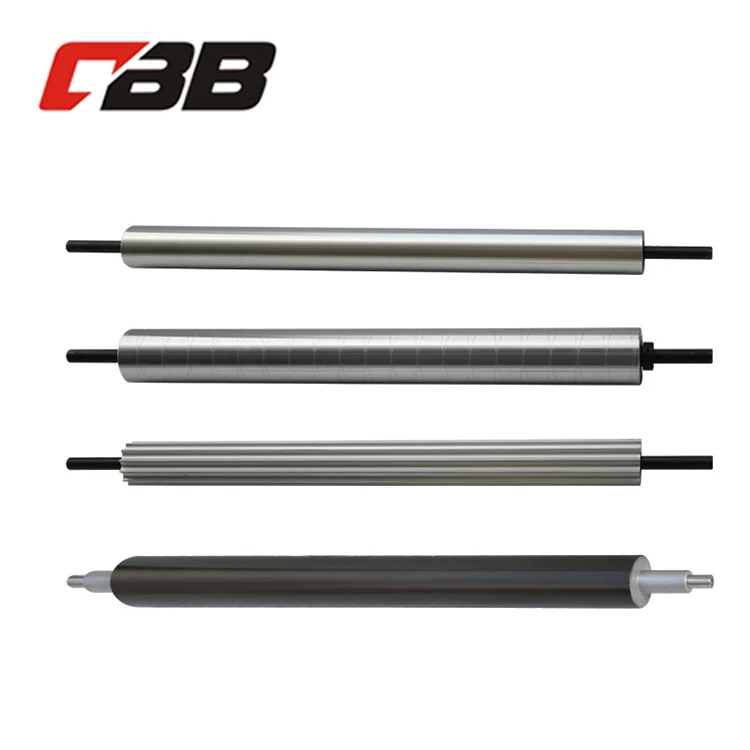

Gold supplier china diameter from 25mm - 320mm aluminum conveyor steel idler rollerr

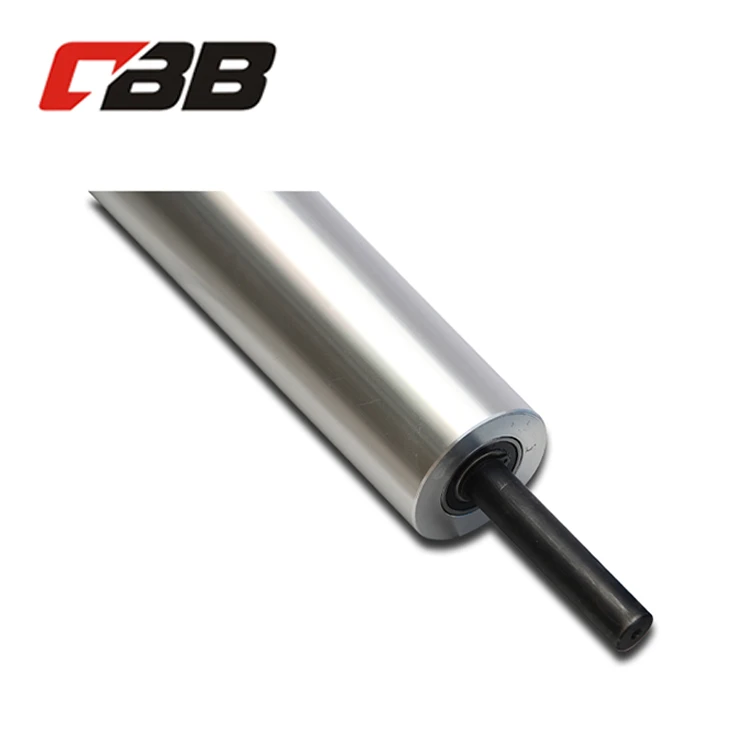

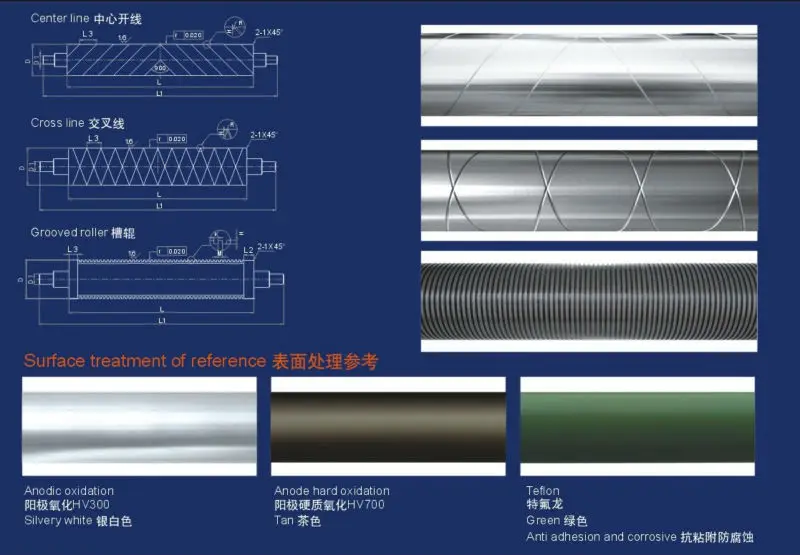

Aluminum tube is also called aluminum roller, it is made of advantaged aluminum alloy material. It has all kinds of modules and sizes. Inside the roller, there is a strong rib structure, chich is very fixed. And the Omni-axes is controlled by dynamic balance correction treatment, which limits to 2g. with the special cutting method, the roll surface's lustrousness is from 1.6 to 0.8, and coaxially is 0.02mm. the axle end under technology processing and with best bearing, though it is running with high speed, it still works well. according to different industry, the roller can also be used in anodic oxidation HV300, HV700, Teflo, it can bear the stuff working surrounding.
Feiya aluminum tube is with High strength, Small resistance, Light weight, Flexible rotation, and no rusting. It is widely used in spinning, electric wire and cable, metal-processing industry, paper industry, rubber industry, plastics industry and mechianical industry.
OD | ID | Wall Thickness | Strong Gluten Mark | Quantity of Strong Gluten |
25 | 18 | 3.50 | A1 | |
28 | 22 | 3.00 | A1 | |
30.1 | 20.1 | 5.00 | A1 | |
33.8 | 25.4 | 4.20 | A1 | |
38.2 | 30.2 | 4.00 | A1 | |
40.1 | 30.1 | 5.00 | A1 | |
45.1 | 32 | 6.50 | A1 | |
50 | 40 | 5.00 | A1 | |
51.4 | 38.8 | 6.30 | A2 | 3 |
52 | 44.6 | 3.70 | A1 | |
55 | 45 | 5.00 | A1 | |
60 | 50 | 5.00 | A1 | |
70 | 61 | 4.50 | A1 | |
71 | 64.6 | 3.20 | A2 | 7 |
75 | 66 | 4.50 | A1 | |
75 | 60 | 7.50 | A1 | |
76.2 | 69.8 | 3.20 | A2 | 7 |
77.4 | 70 | 3.70 | A2 | 9 |
80.7 | 70.3 | 5.10 | A2 | 9 |
81 | 73.2 | 4.00 | A2 | 9 |
90.5 | 82.9 | 3.80 | A2 | 9 |
90.6 | 75.6 | 7.50 | A1 | |
101 | 92.4 | 4.30 | A2 | 9 |
101 | 90.2 | 5.40 | A2 | 9 |
110 | 101 | 4.50 | A2 | 9 |
120.9 | 109.1 | 5.90 | A2 | 9 |
121 | 111.6 | 4.70 | A2 | 9 |
130 | 120 | 5.00 | A2 | 9 |
150.5 | 136.5 | 7.00 | A1 | |
150.9 | 136.9 | 7.00 | A3 | 8 |
151 | 140 | 5.50 | A2 | 10 |
200 | 186 | 7.00 | A1 | |
320 | 296 | 12.00 | A1 |
