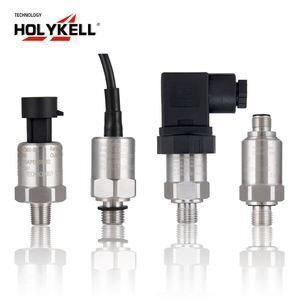

HOLYKELL HPT300-S pressure monitoring sensors 150Psi pressure transmitter 4-20ma

Supplier: Holykell Technology Company Limited
Region: Hunan, China
Contact: Ms Bonnie Liu
Price: $18.70 /piece
Min. Order: 1 piece

Click here to contact

Product details

Pressure type:	Gauge, absolute, sealed gauge available;	Process connection:	G1/4, 1/2NPT male;
Type:	pressure sensor;	Pressure sensor core Diameter:	Diameter 19mm Stainless Steel Silicon Oil Filled Pressure Sensor;
Port:	Shenzhen;	Place of Origin:	Hunan China;
Packaging Detail:	PStandard holykell package box A,B,C,D,E box for exporting HPT300 pressure monitoring sensors 150psi pressure transmitter 4-20ma;	Power supply:	12-30V DC;
Housing marterial:	Full stainless steel;	Application:	Viscous medium/Sanitary/food;
Supply Ability:	30000 Piece/Pieces per Month pressure transmitter 4-20ma;	Brand Name:	Holykell;
Warranty:	18 Months;	Payment Terms:	L/C,T/T,Western Union;
Pressure range:	0-600kPa....100MPa by customized;	Working temp. range:	-30℃~+85℃;
Model Number:	HPT300-S;

HPT300 pressure monitoring sensors 150psi pressure transmitter 4-20ma

Introduction of HPT300 pressure transmitter 4-20ma

The HPT300-S pressure transmitter 4-20ma output applied in the engine fuel pressure, hydraulic pressure and gas pressure industries, which is adopt the imported Germany Flush Ceramic piezoresistive technology, and use the military level of printer PCB board, Anti-Jamming enhanced 300%, stability of circuit is above 10 years . 5-10 years long services life design suitable for many industrial and OEM pressure measurement applications.

HPT300 pressure monitoring sensors 150bar pressure transmitter 4-20ma
Feature	Advantages	Benefits
Compact ,Rugged and Small SS body	Designed to integrate with a variety of industrial and OEM application	Great cost,Universal type
Germany Piezo-resistive ceramic cell	High-quality Al2O3 (98%)Resists corrosion and water Accuracy 0.5%F.S	Reliable and longlasting in harsh application
Circuit three-antigum process	circuit anti-static,moisturproof,anti-corrosion	Reliable and longlasting in harsh application
NOK Brand O-ring Seal	0 leakage	Safty,avoid safety accidents
Water hammer	shock-proof, Avoid instant overpressure damage	Stability,keep sensor running longer by reducing downtime and maintenance costs
EMI/RFI	interfere with the operation of other electrical products in the environment.	Precision Measurement

Characteristic of HPT300-S 150bar pressure transmitter 4-20ma

a. Low cost compact type

b. Imported Germany technology Ceramic sensors, 5-10 years design

c. Military level of printer PCB board, Anti-Jamming enhanced 300%, Stability of Circuit>10 years

d. Linear Amplified Output

e. Automatic temperature compensation -40~80,

Temperature drift Automatic modified linear ≤0.01%FS

f. Superior Long term Stability

g. Excellent Repeat ability/Hysteresis

h. EMI/RFI Rejection

i. Low power consumption

j. 10 million cycle life expectancy

k.Outstanding shock& vibration performance

Company Information

Holykell Technology Co. , Ltd is a high-tech company integrating R&D, production and distribution. The company has a purification plant of 5000m2, an annual output of 1 million production line of pressure sensor, transmitter and intelligent digital instrumentation.

Now the company has more than 120,000 customers worldwide, the products have been exported to Europe, America, Australia, Africa, southeast Asia, 109 countries.

Holykell can provide a cost effective solution for pressure monitoring for a variety of applications.

FAQ

Q:Can you accept ODM & OEM service ?

A:We professional provide OEM &ODM service for 150bar pressure transmitter 4-20ma.

Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: How can I get the quotation?

A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page,

you will get the reply within 12hours, and the quotation will send to you according to your requirements.

Q: How can I get my sensors?/ What's the means of transport?

A. We main delivery goods by express: DHL, FedEx, UPS,TNT, etc or logistics by indicator

Q. How to order ?

A. In order to recommend you the most suitable pressure transmitter with 4-20ma output or level sensors and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !

1. What is your medium? Water, oil or others?

2. Pressure sensors range: 0-50bar, or others?

3. Output signal: 4-20mA, 0-5V, or others?
