Vacuum Lifter 500kg Lift for Glass Sheet Machine

Supplier: Shandong Care Machinery Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Care Machine
Price: $990.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant;	Supply Ability:	30 Set/Sets per Month;
Lifting weight:	500kg;	Certification:	ISO CE;
Product Name:	Vacuum Glass Lifter Lifting Transportation Machine;	Turning angle:	90degree;
After-sales Service Provided:	Engineers available to service machinery overseas;	Application:	Vacuum Lifter 500kg Lift for Glass Sheet Machine;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Warranty:	12 Months;
Place of Origin:	Shandong China;	Port:	Qingdao Port;
Brand Name:	Caretech;	Dimension(LWH):	3900x4000x350mm;
Packaging Detail:	1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;;	Lifting height:	1000mm;
Condition:	New;	After-sales Service Provided:	Online support;
Air pressure:	0.5-0.8MPa;

Vacuum Lifter 500kg Lift for Glass Sheet Machine

Product parameter

Parameters
Model	CAPL-200	CAPL-300	CAPL-500
Rated load	200kg	300kg	500kg
Sucker diameter	250mm	250mm	250mm
Sucker qty	2	4	6
Vertical turning	0°-90°	0°-90°	0°-90°
Horizontal rotation	360°	360°	360°
Weight	60kg	80kg	100kg
Air pressure	>0.5bar	>0.5bar	>0.5bar

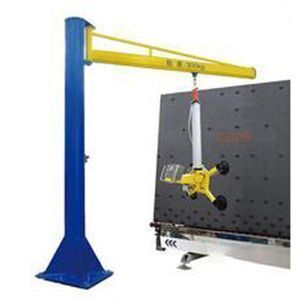

The glass lifter is used for handling and transferring various kinds of glass, and widely used in glass deep processing industry. The lifter is composed of cantilever and handling arm, both part could be customized.

Product Details

Products Features

1.Suitable for moving insulating glass /tempered glass/glass curtain wall.

2.Pneumatic glass arm is used to load and unload heavy and hot glass easily. It is easy to carry and very safe and save many labor cost.

3.It features better stability, much safer and more convenient to operate.

4.It could be used in the laminated glass production line, insulating glass production line, mirror glass production line, glass cutting and edging production line and so on.

5.With vacuum pressure charging system, equipment can ensure the whole vacuum system within a relatively constant safe pressure value during transition.
