20 years fiber optic cable manufactory supply non armoured cable
-
Supplier: Shenzhen Necero Optical Fiber And Cable Co., Ltd. -
Region: Guangdong, China -
Contact: Ms. Nancy Wei -
Price: $0.10 /meter -
Min. Order: 1 meter
| Certificate: | SGS,UL,ROHS,ISO 9001-2008,TLC,CE.; | Place of Origin: | Guangdong China; |
| Package: | 1km/roll,2km/roll or Customized; | Standards: | YD/T 1258.2-2003,ICEA-596,GR-409,IEC794,OFNR & OFNP.; |
| Insulation Material: | PFA; | Fiber count: | 1-24 cores; |
| Supply Ability: | 100000 Kilometer/Kilometers per Month non armoured cable; | Type: | Medium Voltage; |
| Color: | Yellow,orange,aqua.red or Customized; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; |
| Outsheath: | PE,PVC,LSZH.; | Application: | Telecommunication; |
| Jacket: | PTFE; | Item: | non armoured cable; |
| Fiber Type: | G652D,G657A,OM1,OM2,OM3,OM4; | Type: | Coaxial; |
| Brand Name: | NECERO; | Model Number: | non armoured cable; |
| Port: | shenzhen; | Conductor Material: | Aluminum; |
| Packaging Detail: | original wooden drum/plywood drum with pallet/plywood drum/carton; | Laying Method: | Indoor cabling; |
20 years fiber optic cable manufactory supply non armoured cable
We are 20 years fiber optic cable manufacturer.
Welcome to go to the factory tour!
Send message to us can get free samples.
20 years fiber optic cable manufactory supply non armoured cable
GJFJV
1-24cores
Special tube filling compound ensure a cntical protection of fiber
Special designed compact structure is good at preventing loose tubes from shrinking
Aramid yarn/glass yarn make the cable stronger ,and hence Tensile&crush strength
Attenuation:
|
| 50/125μm | 62.5/125μm | G652 | G655 |
Attenuation(+20°C) | @850nm | ≤3.5dB/km | ≤3.5dB/km |
|
|
@1300nm | ≤1.5 dB/km | ≤1.5 dB/km |
|
| |
@1310nm |
|
| ≤0.45Db/km | ≤0.50Db/km | |
@1550nm |
|
| ≤0.30Db/km | ≤0.50Db/km | |
Bandwidth(ClassA) | @850nm | ≥500Mhz·km | ≥200Mhz·km |
|
|
@1300nm | ≥1000Mhz·km | ≥600Mhz·km |
|
| |
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA |
|
| |
Cable Cut-off Wavelength λcc |
|
| ≤1260nm | ≤1480nm | |
Attenuation at temperature cycling α(-20°C~+85°C)
| @1300nm | ≤0.25dB/km | ≤0.25dB/km |
|
|
@1550nm |
|
| ≤0.10dB/km | ≤0.10dB/km | |

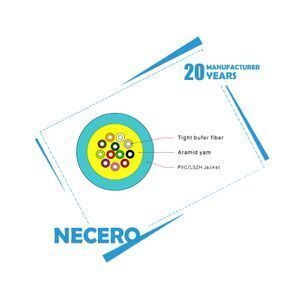

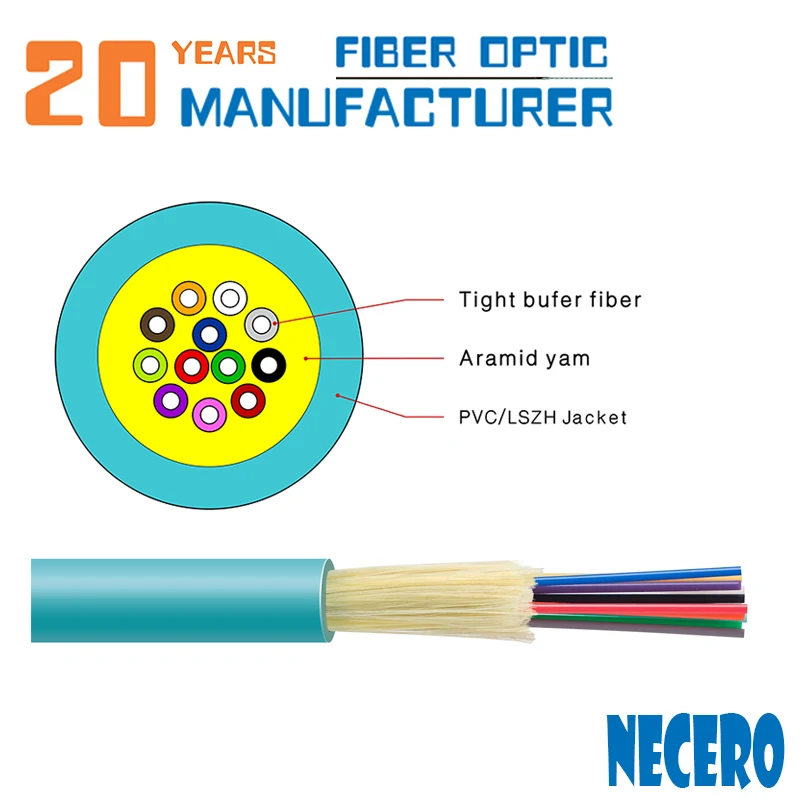

02~12 fiber, 900um Tight buffer fiber, Aramid yarn, PVC/LSZH Jacket.
FAQ
1. Are you the real factory?
Yes,we are the real factory with 20 years’ history.
2. What is your fiber brand?
Fiber brands including : NECERO,HANXIN,MECABLE
3. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4. Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6. What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
8. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
10. Shipping & Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
Contact Us
Add: Sungang East Road, Sungang Street, 518000,Shenzhen,Guangdong,China.
Web:www.necero.org
